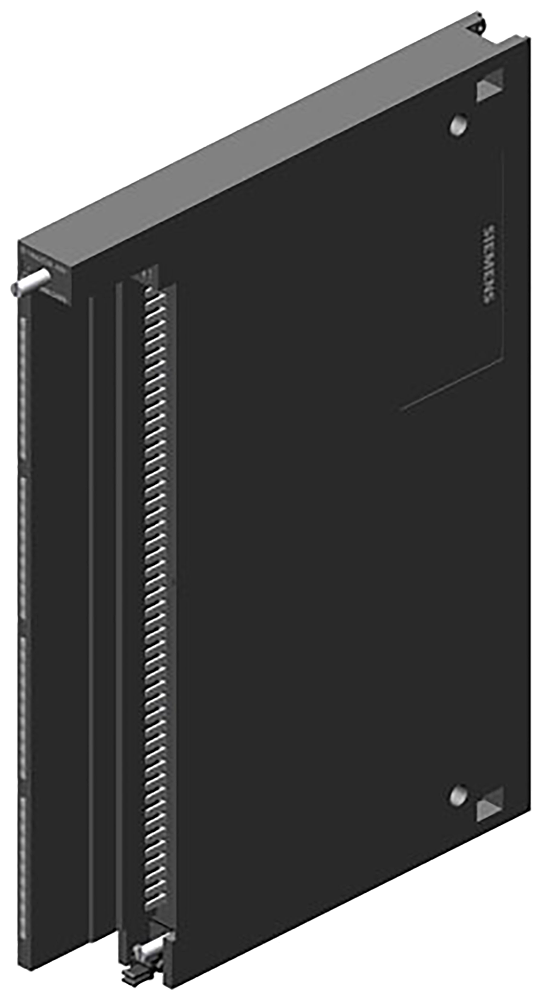

Siemens 6ES7421-7DH00-0AB0 SIMATIC S7-400 SM 421 16DI 24-60V UC PLC I/O Module
Get Quote
- Description
The Siemens 6ES7421-7DH00-0AB0 SIMATIC S7-400 SM 421 module provides 16 individually isolated digital inputs rated 24-60 V UC, accepting both AC and DC field signals. Input delay is fixed to four selectable steps from 0.5 to 20 ms, and the module reports diagnostic alarms plus hardware interrupts to the CPU when parameterized. Wire-break detection triggers above 0.7 mA.
Technical Specifications
| Input current – from backplane bus 5 V DC, max. | 150 mA |
| Power loss – Power loss, typ. | 8 W; 3.5 W (24 V DC); 6.5 W (48 V DC); 8.0 W (60 V DC) |
| Digital inputs – Number of digital inputs | 16 |
| Digital inputs – Input characteristic according to IEC 61131 | similar to IEC 61131-2 |
| Number of simultaneously controllable inputs | 16 |
| Input voltage – Type of input voltage | AC/DC |
| Input voltage – Rated value (UC) | 24 V; 24 V UC to 60 V UC (47 ... 63 Hz) |
| Input voltage – for signal 0 | -6 to +6 V DC/ 0 to 5 V AC |
| Input voltage – for signal 1 | 15 to 72 V DC; -15 to -72 V DC; 15 to 60 V AC |
| Input current – for signal 1, typ. | 4 mA; 4 to 10 mA |
| for standard inputs – parameterizable | Yes |
| for standard inputs – Rated value | 0.5 ms; 0.5 / 3 / 10 / 20 ms |
| Encoder connection – Fixed current limitation for wire-break monitoring, min. | 18 kΩ; 18 kohms: Rated voltage 24 V (15 to 35 V); 39 kohms: Rated voltage 48 V (30 to 60 V) |
| Encoder connection – Fixed current limitation for wire-break monitoring, max. | 56 kΩ; Rated voltage 60 V (50 to 72 V) |
| Cable length – shielded, max. | 1 000 m |
| Cable length – unshielded, max. | 600 m; 600 m: 3, 10, 20 ms; 100 m: 0,5 ms |
| Connectable encoders – 2-wire sensor | Yes |
| Connectable encoders – permissible quiescent current (2-wire sensor), max. | 0.5 mA; 0.5 to 2 mA |
| Interrupts/diagnostics/status information – Diagnostics function | Yes; Parameterizable |
| Alarms – Diagnostic alarm | Yes; Parameterizable |
| Alarms – Hardware interrupt | Yes; Parameterizable |
| Diagnoses – Diagnostic information readable | Yes; possible |
| Diagnoses – Wire break | Yes; I> 0.7 mA |
| Diagnostics indication LED – Status indicator digital input (green) | Yes |
| Potential separation digital inputs – between the channels | Yes |
| Potential separation digital inputs – between the channels, in groups of | 1 |
| Potential separation digital inputs – between the channels and backplane bus | Yes |
| Isolation – Isolation tested with | 1 500 V AC |
| Dimensions – Width | 25 mm |
| Dimensions – Height | 290 mm |
| Dimensions – Depth | 210 mm |
| Weights – Weight, approx. | 600 g |
Selection Notes
This variant accepts 24-60 V on AC or DC (UC) field wiring, wider than a fixed 24 V DC-only input, so it fits mixed AC-driven and DC-driven field devices without a separate module. Each channel is isolated individually (groups of 1) rather than in larger blocks, which allows different signal sources per channel without cross-coupling. Input delay is fixed to four steps – 0.5, 3, 10 or 20 ms – suited to slower AC-driven field contacts rather than high-speed DC counting. Wire-break detection triggers above 0.7 mA, useful where open-wire detection on the field circuit matters.
