- Siemens 6ES7421-7BH01-0AB0 SIMATIC S7-400 SM 421 16DI 24V DC PLC I/O Module Siemens 6ES7421-7BH01-0AB0 SIMATIC S7-400 SM 421 16DI 24V DC PLC I/O Module

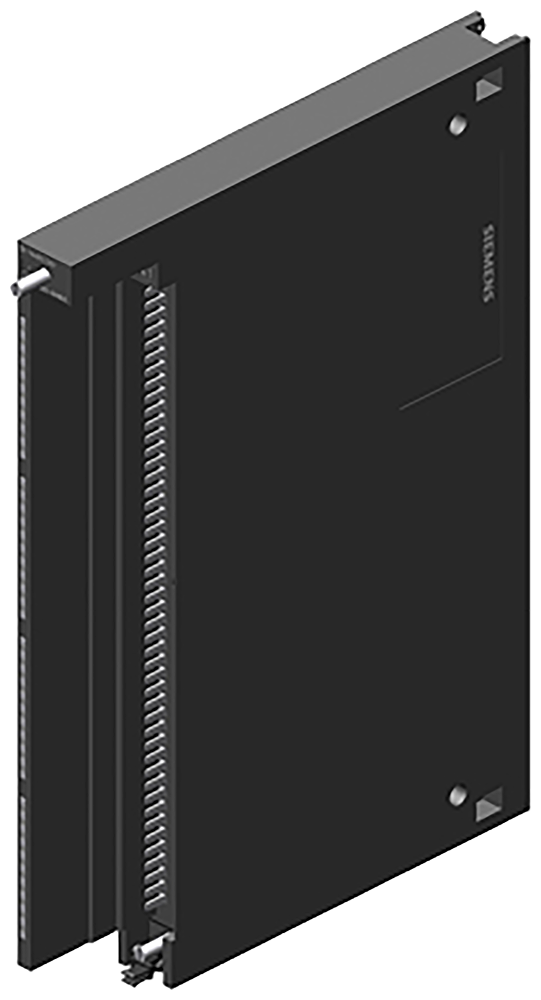

Siemens 6ES7421-7BH01-0AB0 SIMATIC S7-400 SM 421 16DI 24V DC PLC I/O Module
Get Quote
- Description
The Siemens 6ES7421-7BH01-0AB0 SIMATIC S7-400 SM 421 module provides 16 isolated digital inputs rated 24 V DC, meeting IEC 61131 Type 2 input characteristics. Two isolated encoder supply outputs with electronic short-circuit protection are built in, and the module reports diagnostic alarms plus hardware interrupts to the CPU. Input delay is parameterizable from 3 microseconds to 3 ms per channel.
Technical Specifications
| Load voltage L+ – Rated value (DC) | 24 V |
| Load voltage L+ – permissible range, lower limit (DC) | 20.4 V |
| Load voltage L+ – permissible range, upper limit (DC) | 28.8 V |
| Load voltage L+ – Reverse polarity protection | Yes |
| Input current – from supply voltage L+, max. | 120 mA |
| Input current – from backplane bus 5 V DC, max. | 130 mA |
| Encoder supply – Number of outputs | 2 |
| Encoder supply – Type of output voltage | L+ (-2.5 V) |
| Encoder supply – Short-circuit protection | Yes; Electronic |
| Encoder supply – additional (redundant) feed | Yes; possible |
| Output current – Rated value | 120 mA |
| Output current – permissible range, lower limit | 0 mA |
| Output current – permissible range, upper limit | 150 mA |
| Power loss – Power loss, typ. | 5 W |
| Digital inputs – Number of digital inputs | 16 |
| Digital inputs – Input characteristic according to IEC 61131 | Type 2 |
| Number of simultaneously controllable inputs | 16 |
| Input voltage – Type of input voltage | DC |
| Input voltage – Rated value (DC) | 24 V |
| Input voltage – for signal 0 | -30 V DC to +5 V DC |
| Input voltage – for signal 1 | 11 V DC to 30 V DC |
| Input current – for signal 0, min. | 6 mA; < 6 mA |
| Input current – for signal 1, typ. | 6 mA; 6 to 8 mA |
| Input delay (for rated value of input voltage) – Input frequency (with a time delay of 0.1 ms), max. | 2 kHz |
| for standard inputs – parameterizable | Yes |
| for standard inputs – at 0 to 1, min. | 3 µs; 0.05 / 0.1 / 0.5 / 3 ms |
| Encoder connection – Fixed current limitation for wire-break monitoring, min. | 10 kΩ |
| Encoder connection – Fixed current limitation for wire-break monitoring, max. | 18 kΩ |
| Cable length – shielded, max. | 1 000 m; 1 000 m: 3 ms, 70 m: 0.5 ms, 30 m: 0.1 ms, 30 m: 0.05 ms |
| Cable length – unshielded, max. | 600 m; 600 m: 3 ms; 50 m: 0,5 ms; 20 m: 0,1 ms; 20 m: 0,05 ms |
| Connectable encoders – 2-wire sensor | Yes |
| Connectable encoders – permissible quiescent current (2-wire sensor), max. | 3 mA |
| Interrupts/diagnostics/status information – Diagnostics function | Yes; Parameterizable |
| Alarms – Diagnostic alarm | Yes; Parameterizable |
| Alarms – Hardware interrupt | Yes; Parameterizable |
| Diagnoses – Diagnostic information readable | Yes |
| Diagnoses – Monitoring the supply voltage | Yes |
| Diagnoses – Wire break | Yes; I < 1 mA |
| Diagnostics indication LED – Rated load voltage PWR (green) | Yes; Per group |
| Diagnostics indication LED – internal fault INTF (red) | Yes |
| Diagnostics indication LED – external fault EXTF (red) | Yes |
| Diagnostics indication LED – Status indicator digital input (green) | Yes |
| Potential separation digital inputs – between the channels | Yes |
| Potential separation digital inputs – between the channels, in groups of | 8 |
| Potential separation digital inputs – between the channels and backplane bus | Yes |
| Isolation – Isolation tested with | 500 V DC |
| Dimensions – Width | 25 mm |
| Dimensions – Height | 290 mm |
| Dimensions – Depth | 210 mm |
| Weights – Weight, approx. | 600 g |
Selection Notes
The input delay is parameterizable from 3 µs up to 3 ms, so the same module handles fast counting signals – up to 2 kHz at the 0.1 ms setting – and slower contact inputs that need debounce filtering. Two built-in, short-circuit-protected encoder supply outputs remove the need for a separate 24 V sensor supply, and the optional redundant feed keeps inputs live if one supply channel fails. Channels are isolated in groups of 8, so mixing different 24 V DC signal sources across the 16 inputs is only possible in two-group blocks, not per individual channel.
