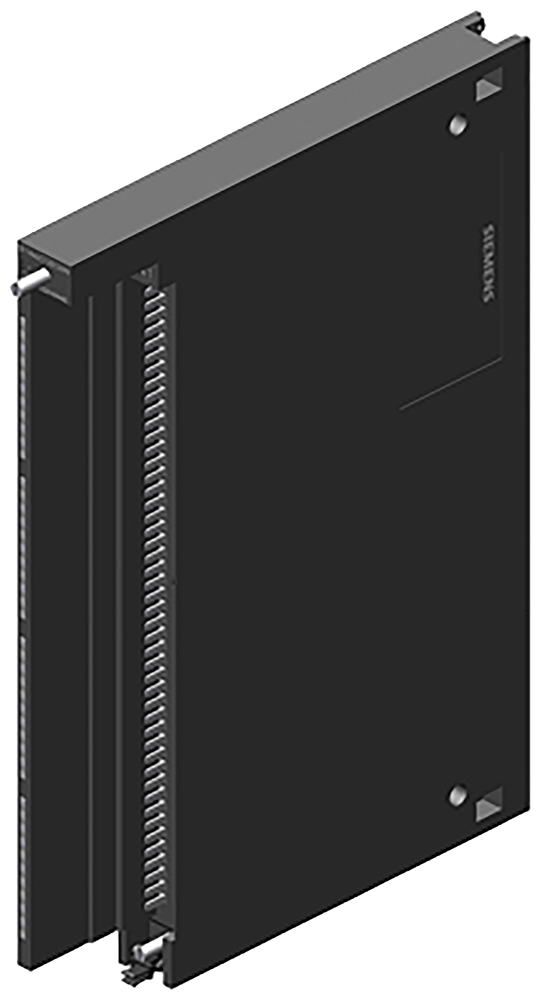

The Siemens 6ES7421-1FH20-0AA0 is a SIMATIC S7-400 digital input module SM 421 with 16 isolated inputs rated 120/230 V AC/DC, IEC 61131 Type 2 characteristic. It draws 80 mA from the backplane bus, dissipates 12 W typical, and isolates the 16 channels from the backplane bus in groups of 4.
Half the channel count of the 32 DI SM 421 modules trades density for a wider rated voltage window (120/230 V AC/DC) and finer isolation grouping (4 channels per group versus 8 or 32 on the other SM 421 variants), which suits mixed 120 V/230 V field wiring on the same module. The Type 2 IEC 61131 characteristic and 264 V max signal-1 rating fit high-voltage discrete field devices directly; for pure 24 V DC or 120 V DC/AC wiring at higher channel density, the 32 DI SM 421 variants in the same family are the better fit.
| from backplane bus 5 V DC, max. | 80 mA |
|---|
| Power loss, typ. | 12 W |
|---|
| Number of digital inputs | 16 |
|---|---|
| Input characteristic according to IEC 61131 | Type 2 |
| Number of simultaneously controllable inputs: Number of simultaneously controllable inputs | 16 |
| Input voltage: Type of input voltage | AC/DC |
| Input voltage: Rated value (UC) | 230 V; 120/230 V UC (47 ... 63 Hz) |
| Input voltage: for signal "0" | 0 to 40 V AC/ -40 to +40 V DC |
| Input voltage: for signal "1" | 74 to 264 V AC; 80 to 264 V DC, -80 to -264 V |
| Input current: for signal "0", min. | 0 mA; AC: 0 mA; DC: 0 mA |
| Input current: for signal "0", max. (permissible quiescent current) | 6 mA; AC: 6 mA; DC: 2 mA |
| Input current: for signal "1", typ. | 10 mA; at 120 V: 10 mA AC, 1.8 mA DC; at 230 V: 14 mA AC, 2 mA DC |
| Input delay (for rated value of input voltage) for standard inputs: at "0" to "1", max. | 20 ms; AC: 20 ms; DC: 15 ms |
| Cable length: shielded, max. | 1 000 m |
| Cable length: unshielded, max. | 600 m |
| Part number | 6ES7421-1FH20-0AA0 |
|---|---|
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Phase-out announced by the manufacturer |
| EAN | 4025515128908 |
| Connectable encoders: 2-wire sensor | Yes |
|---|---|
| Connectable encoders: permissible quiescent current (2-wire sensor), max. | 5 mA; AC: 5 mA |
| Diagnostics function | No |
|---|---|
| Diagnostics indication LED: Status indicator digital input (green) | Yes |
| Potential separation digital inputs: between the channels | Yes |
|---|---|
| Potential separation digital inputs: between the channels, in groups of | 4 |
| Potential separation digital inputs: between the channels and backplane bus | Yes |
| eClass | 16 27-24-22-04 |
|---|---|
| ETIM | 10 EC001419 |
| IDEA | 4 3566 |
| UNSPSC | 15 32-15-17-05 |
| General Product Approval Miscellaneous | For use in hazard- |
|---|---|
| General Product Approval EMV | ous locations |
| For use in hazard-Maritime application ous locations | NK / Nippon Kaiji Ky- okai |
|---|
| Net weight | 0.776 kg |
|---|---|
| Country of origin | DE |
| Shipping weight | 1.276 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
