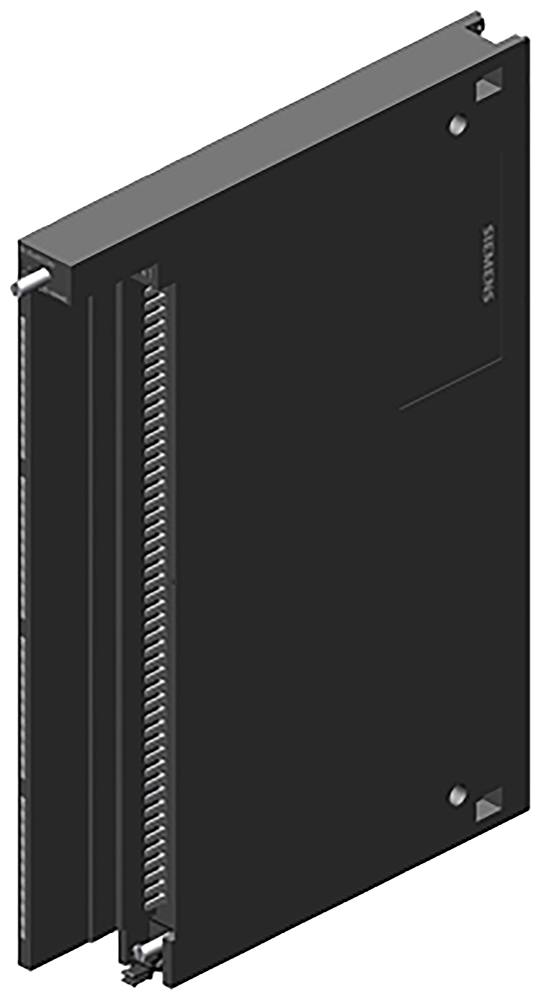

The Siemens 6ES7421-1EL00-0AA0 is a SIMATIC S7-400 digital input module SM 421 with 32 isolated inputs rated 120 V AC/DC, IEC 61131 Type 1 characteristic. It draws 200 mA from the backplane bus, dissipates 6.5 W typical, and isolates the 32 channels from the backplane bus in groups of 8.
Grouping isolation in blocks of 8 rather than a single 32-channel group lets separate 120 V field circuits share this module without cross-loading each other's return path, which the 24 V SM 421 variant (isolated as one group of 32) does not offer. The 120 V AC/DC rating and 79-132 V signal-1 window fit legacy 120 V field wiring directly; for 24 V DC sensors, the 24 V-rated SM 421 in the same family is the correct module.
| from backplane bus 5 V DC, max. | 200 mA |
|---|
| Power loss, typ. | 6.5 W |
|---|
| Number of digital inputs | 32 |
|---|---|
| Input characteristic according to IEC 61131 | Type 1 |
| Number of simultaneously controllable inputs: Number of simultaneously controllable inputs | 32 |
| Input voltage: Type of input voltage | AC/DC |
| Input voltage: Rated value (UC) | 120 V; 47 ... 63 Hz |
| Input voltage: for signal "0" | 0 to 20 V UC |
| Input voltage: for signal "1" | 79 to 132 V AC; 80 to 132 V DC |
| Input current: for signal "0", min. | 0 mA |
| Input current: for signal "0", max. (permissible quiescent current) | 1 mA |
| Input current: for signal "1", typ. | 2 mA; 2 to 5 mA |
| Input delay (for rated value of input voltage) for standard inputs: at "0" to "1", min. | 5 ms |
| Cable length: shielded, max. | 1 000 m |
| Cable length: unshielded, max. | 600 m |
| Part number | 6ES7421-1EL00-0AA0 |
|---|---|
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Phase-out announced by the manufacturer |
| EAN | 4019169046145 |
| Connectable encoders: 2-wire sensor | Yes |
|---|---|
| Connectable encoders: permissible quiescent current (2-wire sensor), max. | 1 mA |
| Diagnostics indication LED: Status indicator digital input (green) | Yes |
|---|
| Potential separation digital inputs: between the channels | Yes |
|---|---|
| Potential separation digital inputs: between the channels, in groups of | 8 |
| Potential separation digital inputs: between the channels and backplane bus | Yes |
| eClass | 16 27-24-22-04 |
|---|---|
| ETIM | 10 EC001419 |
| IDEA | 4 3566 |
| UNSPSC | 15 32-15-17-05 |
| General Product Approval Miscellaneous | For use in hazard- |
|---|---|
| General Product Approval EMV | ous locations |
| For use in hazard-Maritime application ous locations | NK / Nippon Kaiji Ky- okai |
|---|
| Net weight | 0.773 kg |
|---|---|
| Country of origin | DE |
| Shipping weight | 1.273 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
