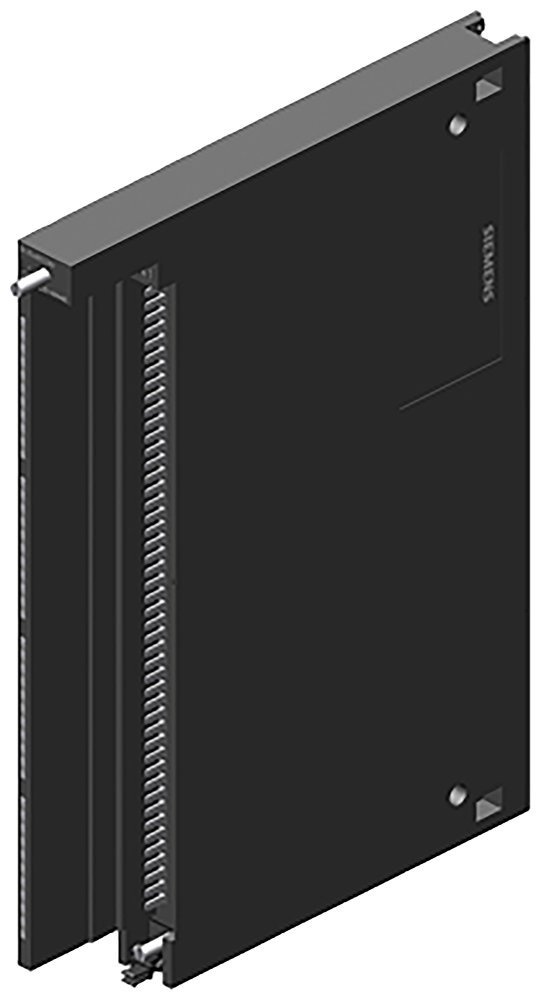

The Siemens 6ES7421-1BL01-0AA0 is a SIMATIC S7-400 digital input module SM 421 with 32 isolated inputs rated 24 V DC, IEC 61131 Type 1 characteristic. It draws 20 mA from the backplane bus, dissipates 6 W typical, and isolates the 32 channels from the backplane bus and from each other in one group.
All 32 channels share a single isolation group, so this variant fits applications where the field-side 24 V DC supply is common across the whole module rather than segmented by group. The Type 1 IEC 61131 characteristic and 1.2-4.8 ms input delay match standard 24 V sensors and switches; where field devices run on 120 V AC/DC instead, the 120 V-rated SM 421 in the same family is the correct module, not this 24 V version.
| from backplane bus 5 V DC, max. | 20 mA |
|---|
| Power loss, typ. | 6 W |
|---|
| Number of digital inputs | 32 |
|---|---|
| Input characteristic according to IEC 61131 | Type 1 |
| Number of simultaneously controllable inputs: Number of simultaneously controllable inputs | 32 |
| Input voltage: Type of input voltage | DC |
| Input voltage: Rated value (DC) | 24 V |
| Input voltage: for signal "0" | -30 V DC to +5 V DC |
| Input voltage: for signal "1" | 13 V DC to 30 V DC |
| Input current: for signal "0", max. (permissible quiescent current) | 1.3 mA |
| Input current: for signal "1", typ. | 7 mA |
| Input delay (for rated value of input voltage) for standard inputs: at "0" to "1", min. | 1.2 ms |
| Cable length: shielded, max. | 1 000 m |
| Cable length: unshielded, max. | 600 m |
| Part number | 6ES7421-1BL01-0AA0 |
|---|---|
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Phase-out announced by the manufacturer |
| EAN | 4019169021463 |
| Connectable encoders: 2-wire sensor | Yes |
|---|---|
| Connectable encoders: permissible quiescent current (2-wire sensor), max. | 1.5 mA |
| Diagnostics function | No |
|---|---|
| Diagnostics indication LED: Status indicator digital input (green) | Yes |
| Potential separation digital inputs: between the channels | No |
|---|---|
| Potential separation digital inputs: between the channels, in groups of | 32 |
| Potential separation digital inputs: between the channels and backplane bus | Yes |
| eClass | 16 27-24-22-04 |
|---|---|
| ETIM | 10 EC001419 |
| IDEA | 4 3566 |
| UNSPSC | 15 32-15-17-05 |
| General Product Approval Miscellaneous | For use in hazard- |
|---|---|
| General Product Approval EMV | ous locations |
| FM Type Examination Cer- | tificate |
|---|---|
| For use in hazard-Maritime application ous locations | NK / Nippon Kaiji Ky- okai |
| Net weight | 0.77 kg |
|---|---|
| Country of origin | DE |
| Shipping weight | 1.27 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
