Part number
6ES7407-0KR02-0AA0
$1,433.48 On request Dispatch — · From TürkiyeGet a Quote
SIMATIC S7-400

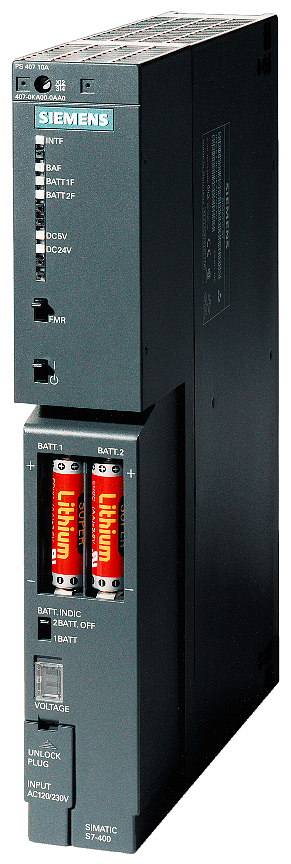

Siemens 6ES7407-0KR02-0AA0 SIMATIC S7-400 PS407 120/230V AC/DC 5V DC/10A PLC Power Supply

PS407 power supply, 120/230V AC/DC wide-range input, 5V DC/10A and 24V DC/1A output for SIMATIC S7-400.

Rated current
10 A
Rated operational voltage
120–230 V AC
EAN
4019169142205
Description

About the 6ES7407-0KR02-0AA0

The Siemens PS407 (6ES7407-0KR02-0AA0) is a wide-range SIMATIC S7-400 power supply module that converts 120/230V AC or DC input into a regulated 5V DC backplane rail rated at 10A, plus a 24V DC output at 1A. It occupies two rack slots and includes short-circuit protection, with an optional lithium backup battery for buffered timekeeping during power loss.

Certifications & Standards

  • BIS

Selection Notes

The 10A rating on the 5V DC backplane bus covers single-rack S7-400 stations built around one CPU 41x plus a moderate signal-module count; the bus draws no base load, so the full 10A is available to the rack. Configurations with denser I/O, redundant CPUs, or several communication processors that push backplane current past 10A need the 20A PS407 sibling instead. The 20 ms mains buffering time, NAMUR-compliant, lets the station ride through short supply dips without a CPU stop, and the wide-range 120/230V AC/DC input removes the need to select an input voltage range in the field.

Specification

Full specification

56 values · Last verified 01 Nov 2026

Supply voltage 10

Rated value (DC): 120 V DC Yes
Rated value (DC): 230 V DC Yes
Rated value (AC): 120 V AC Yes
Rated value (AC): 230 V AC Yes
Line frequency: Rated value 50 Hz Yes
Line frequency: Rated value 60 Hz Yes
Line frequency: permissible range, lower limit 47 Hz
Line frequency: permissible range, upper limit 63 Hz
Mains buffering: Mains/voltage failure stored energy time 20 ms
Mains buffering: Mains buffering according to NAMUR recommendation Yes

Input current 6

Rated value at 120 V DC 1 A
Rated value at 230 V DC 0.5 A
Rated value at 120 V AC 0.9 A
Rated value at 230 V AC 0.5 A
Inrush current, max. 63 A; Full width at half maximum 1 ms
Leakage current, max. 5 mA

Output voltage 3

Type of output voltage DC
Rated value (DC): 5 V DC Yes
Rated value (DC): 24 V DC Yes
Show all 56 specifications ↓ Show less ↑37 more values in Identification, Output current, Power, Power loss, Battery, Hardware configuration, Potential separation, Isolation, EMC, Degree and class of protection, Standards, approvals, certificates, Ambient conditions, Connection method, Dimensions, Weights, Approvals / Certificates, Logistics.

Identification 9

Part number 6ES7407-0KR02-0AA0
Brand Siemens
Condition New, factory sealed
Source Siemens and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 4019169142205
ETIM class EC000599
eCl@ss 27242209

Output current 3

for backplane bus (5 V DC), max. 10 A; no base load required
for backplane bus (24 V DC), max. 1 A; idling-proof
Short-circuit protection Yes

Power 1

Active power input, typ. 95 W

Power loss 1

Power loss, typ. 20 W

Battery 1

Backup battery: Backup battery (optional) Yes; 1x lithium AA; 3.6 V / 2.2 Ah

Hardware configuration 1

Slots: required slots 2

Potential separation 1

primary/secondary Yes

Isolation 1

Overvoltage category II

EMC 1

Compliance with line harmonic distortion limits: Compliance with line harmonic distortion acc. to IEC 61000-3-2, IEC 61000-3-3 Yes

Degree and class of protection 1

Equipment protection class I, with protective conductor

Standards, approvals, certificates 2

FM approval Yes; Ta: 0 °C to 70 °C T4
BIS Yes

Ambient conditions 2

Ambient temperature during operation: min. 0 °C
Ambient temperature during operation: max. 60 °C

Connection method 1

Design of electrical connection 3x 1.5 mm2, solid or stranded wire with end sleeve, external diameter 3 mm to 9 mm

Dimensions 3

Width 50 mm
Height 290 mm
Depth 217 mm

Weights 1

Weight, approx. 1 200 g

Approvals / Certificates 2

General Product Approval Miscellaneous For use in hazard-
General Product Approval EMV ous locations

Logistics 6

Net weight 1.304 kg
Country of origin DE
Shipping weight 1.804 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 01 Nov 2026

Documents

Documents for 6ES7407-0KR02-0AA0

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • BIS
Quick answers

Questions about the 6ES7407-0KR02-0AA0

What is the rated current of 6ES7407-0KR02-0AA0?

The rated current of 6ES7407-0KR02-0AA0 is 10 A.

Which supply voltage is 6ES7407-0KR02-0AA0 rated for?

The rated operational voltage of 6ES7407-0KR02-0AA0 is 120–230 V AC.

What is the HS code of 6ES7407-0KR02-0AA0 for customs?

The tariff (HS) code on file for 6ES7407-0KR02-0AA0 is 85044095.

What is the EAN of 6ES7407-0KR02-0AA0?

The EAN (GTIN) of 6ES7407-0KR02-0AA0 is 4019169142205.

Where does 6ES7407-0KR02-0AA0 ship from, and how fast?

6ES7407-0KR02-0AA0 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
