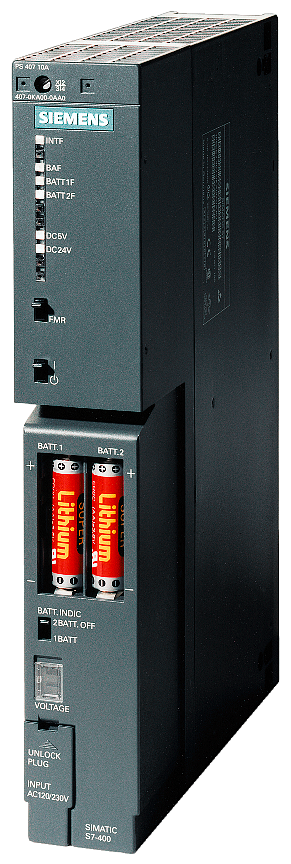

The Siemens 6ES7407-0KA02-0AA0 SIMATIC S7-400 PS407 power supply is a wide-range unit for 120 or 230 V AC or DC input at 47 to 63 Hz, delivering 5 V DC at 10 A to the backplane bus plus 24 V DC at up to 1 A. Typical active power input is 95 W. It occupies two rack slots and weighs 1.2 kg.
The PS407 10 A doubles the backplane-bus current of the smaller wide-range unit while keeping the same 120/230 V AC/DC universal input, so it fits a rack with a heavier 5 V DC module load without changing the mains connection. Its 63 A inrush current is higher than the smaller unit's, a factor to check against upstream fuse or breaker curves at startup.
Its 47 to 63 Hz frequency tolerance and dual 120/230 V AC or DC rating let the same unit run on either voltage without rewiring, useful where a rack ships to sites with different mains standards. The 10 A backplane rating suits a moderately loaded two-segment S7-400 rack; confirm the module current sum against this rating before finalizing the module list.
| Rated value (DC): 120 V DC | Yes |
|---|---|
| Rated value (DC): 230 V DC | Yes |
| Rated value (AC): 120 V AC | Yes |
| Rated value (AC): 230 V AC | Yes |
| Line frequency: Rated value 50 Hz | Yes |
| Line frequency: Rated value 60 Hz | Yes |
| Line frequency: permissible range, lower limit | 47 Hz |
| Line frequency: permissible range, upper limit | 63 Hz |
| Mains buffering: Mains/voltage failure stored energy time | 20 ms |
| Mains buffering: Mains buffering according to NAMUR recommendation | Yes |
| Rated value at 120 V DC | 1 A |
|---|---|
| Rated value at 230 V DC | 0.5 A |
| Rated value at 120 V AC | 0.9 A |
| Rated value at 230 V AC | 0.5 A |
| Inrush current, max. | 63 A; Full width at half maximum 1 ms |
| Leakage current, max. | 5 mA |
| Type of output voltage | DC |
|---|---|
| Rated value (DC): 5 V DC | Yes |
| Rated value (DC): 24 V DC | Yes |
| Part number | 6ES7407-0KA02-0AA0 |
|---|---|
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4019169128810 |
| ETIM class | EC000599 |
| eCl@ss | 27242209 |
| for backplane bus (5 V DC), max. | 10 A; no base load required |
|---|---|
| for backplane bus (24 V DC), max. | 1 A; idling-proof |
| Short-circuit protection | Yes |
| Active power input, typ. | 95 W |
|---|
| Power loss, typ. | 20 W |
|---|
| Backup battery: Backup battery (optional) | Yes; 1x lithium AA; 3.6 V / 2.2 Ah |
|---|
| Slots: required slots | 2 |
|---|
| primary/secondary | Yes |
|---|
| Overvoltage category | II |
|---|
| Compliance with line harmonic distortion limits: Compliance with line harmonic distortion acc. to IEC 61000-3-2, IEC 61000-3-3 | Yes |
|---|
| Equipment protection class | I, with protective conductor |
|---|
| FM approval | Yes; Ta: 0 °C to 70 °C T4 |
|---|---|
| BIS | Yes |
| Ambient temperature during operation: min. | 0 °C |
|---|---|
| Ambient temperature during operation: max. | 60 °C |
| Design of electrical connection | 3x 1.5 mm2, solid or stranded wire with end sleeve, external diameter 3 mm to 9 mm |
|---|
| Width | 50 mm |
|---|---|
| Height | 290 mm |
| Depth | 217 mm |
| Weight, approx. | 1 200 g |
|---|
| General Product Approval Miscellaneous | For use in hazard- |
|---|---|
| General Product Approval EMV | ous locations |
| Net weight | 1.33 kg |
|---|---|
| Country of origin | DE |
| Shipping weight | 1.83 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 01 Nov 2026
No documents are on file for this part yet.
Ask us for the datasheetThe rated current of 6ES7407-0KA02-0AA0 is 10 A.
The rated operational voltage of 6ES7407-0KA02-0AA0 is 120–230 V AC.
The rated motor power of 6ES7407-0KA02-0AA0 is 0.095 kW.
The tariff (HS) code on file for 6ES7407-0KA02-0AA0 is 85044095.
The EAN (GTIN) of 6ES7407-0KA02-0AA0 is 4019169128810.
6ES7407-0KA02-0AA0 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
