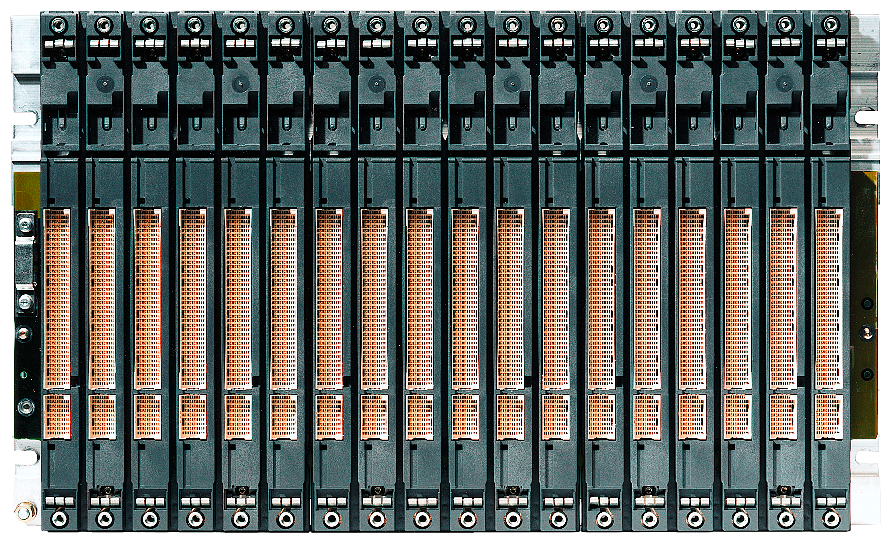

The Siemens 6ES7401-2TA01-0AA0 SIMATIC S7-400 CR2 rack is an 18-slot central rack split into two segments of 8 or 10 slots, with the communication bus running through both segments, a separated P bus, and room for two redundant power supplies. It measures 482.5 mm wide by 290 mm high by 27.5 mm deep and weighs 4.1 kg. Rated ambient operating temperature is 0 to 60 degrees C.
The CR2 keeps a single communication bus across both 8/10-slot segments while isolating only the P bus, and it has room for two redundant power supplies, a fit for a central rack that needs power redundancy and more than a handful of slots but not full dual-bus segment isolation. Choose a rack with a separated communication bus per segment instead when the design needs true bus-level redundancy, or a smaller central rack when fewer than 18 slots are needed.
The two redundant power supply slots make the CR2 a fit for a central S7-400 rack that must stay powered through a single power-supply failure, without the segment-level bus isolation an H-system needs. It suits process or plant controllers with 18 or fewer module slots where uninterrupted power, not full CPU redundancy, is the priority.
| Product type designation | CR2 |
|---|
| Rack: Communication bus | Yes; Throughout both segments |
|---|---|
| Rack: P bus | Yes; Separated |
| Slots: Number of slots | 18; 2 segments with 8 or 10 slots |
| CE mark | Yes |
|---|---|
| UKCA mark | Yes |
| UL approval | Yes |
| FM approval | Yes |
| RCM (formerly C-TICK) | Yes |
| KC approval | Yes |
| EAC (formerly Gost-R) | Yes |
| CCC | Yes |
| Part number | 6ES7401-2TA01-0AA0 |
|---|---|
| Type designation | CR2 |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4025515128311 |
| ETIM class | EC000810 |
| eCl@ss | 27242203 |
| Ambient temperature during operation: min. | 0 °C |
|---|---|
| Ambient temperature during operation: max. | 60 °C |
| Ambient temperature during storage/transportation: min. | 0 °C |
| Ambient temperature during storage/transportation: max. | 70 °C |
| Width | 482.5 mm |
|---|---|
| Height | 290 mm |
| Depth | 27.5 mm |
| Weight, approx. | 4.1 kg |
|---|
| eClass | 8 27-24-22-03 |
|---|---|
| ETIM | 10 EC000810 |
| IDEA | 4 3560 |
| UNSPSC | 15 32-15-17-04 |
| General Product Approval Miscellaneous | For use in hazard- |
|---|---|
| General Product Approval EMV | ous locations |
| Net weight | 4.507 kg |
|---|---|
| Country of origin | DE |
| Shipping weight | 5.007 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 01 Nov 2026
No documents are on file for this part yet.
Ask us for the datasheetThe tariff (HS) code on file for CR2 is 85389099.
The EAN (GTIN) of CR2 is 4025515128311.
CR2 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
