Part number
6ES7331-7SF00-0AB0
$1,209.92 On request Dispatch — · From TürkiyeGet a Quote
Manufacturer phase-out

Siemens has announced the end of 6ES7331-7SF00-0AB0

Once production ends, supply depends on remaining stock.

No replacement announced yet. Tell us the application and we will propose an alternative.

SIMATIC

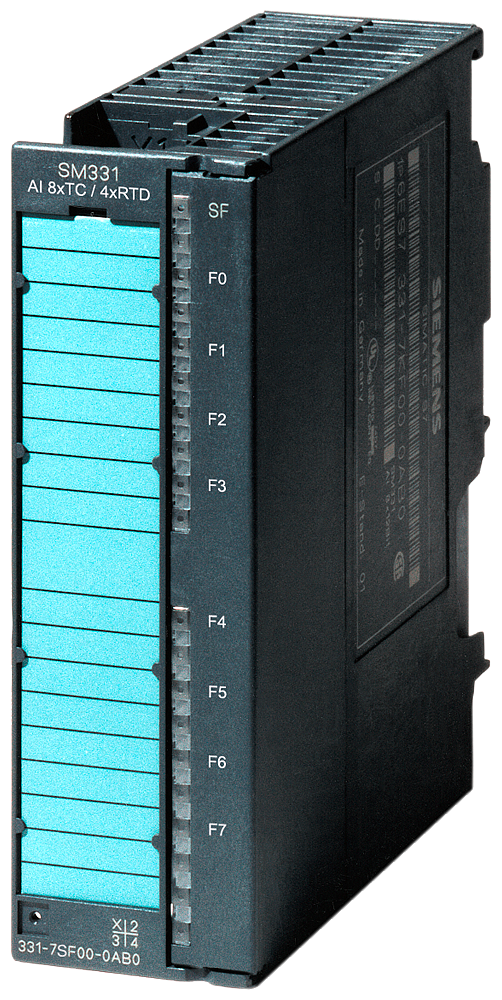

Siemens 6ES7331-7SF00-0AB0 SIMATIC S7-300 SM 331 8xAI TC/4xAI RTD Ex Hazardous Area PLC I/O Module

SIMATIC S7-300 SM 331: 8x AI thermocouple or 4x AI RTD, hazardous-area Ex, ATEX/FM/PTB tested.

Load voltage L+: Rated value (DC)
24 V
EAN
4025515061236
Description

About the 6ES7331-7SF00-0AB0

The Siemens 6ES7331-7SF00-0AB0 is a SIMATIC S7-300 SM 331 analog input module with 8 isolated inputs for thermocouples or 4 for Pt100/Ni100 resistance thermometers, built to bring temperature signals from a hazardous area into the control system. It resolves up to 16 bit including sign, is PTB tested under number Ex-96.D.2108X, and carries an ATEX II 3 G (2) GD marking.

Selection Notes

Ten thermocouple types (B through U) and three RTD types (Ni100/Pt100/Pt200) on one module cover most hazardous-area temperature-measurement points on a single line without mixing module variants. The parameterizable 2.5-100 ms integration time trades noise rejection against update rate per channel group, and the matching 10-400 Hz interference-frequency suppression setting should track local mains frequency (50 or 60 Hz) to reject line noise on long thermocouple runs. The 0.008% basic error limit on RTD channels only applies at 25 degC; the wider 0.04% operational limit is what to budget against over the full ambient range.

Specification

Full specification

79 values · Last verified 01 Nov 2026

Supply voltage 1

Load voltage L+: Rated value (DC) 24 V

Input current 1

from backplane bus 5 V DC, max. 120 mA

Power loss 1

Power loss, typ. 0.6 W
Show all 79 specifications ↓ Show less ↑76 more values in Identification, Analog inputs, Analog value generation for the inputs, Encoder, Errors/accuracies, Interrupts/diagnostics/status information, Ex(i) characteristics, Potential separation, Standards, approvals, certificates, Version Classification, Manufacturer Declara- Miscellaneous Declaration of Con-, Logistics.

Identification 7

Part number 6ES7331-7SF00-0AB0
Brand Siemens
Condition New, factory sealed
Source Siemens and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Phase-out announced by the manufacturer
EAN 4025515061236

Analog inputs 34

Number of analog inputs 8; 8x thermocouples; 4x RTD thermoresistors
Input ranges: Voltage Yes
Input ranges: Current No
Input ranges: Thermocouple Yes
Input ranges: Resistance thermometer Yes
Input ranges: Resistance Yes
Input ranges (rated values), voltages: -1 V to +1 V Yes
Input ranges (rated values), voltages: Input resistance (-1 V to +1 V) 10 MΩ
Input ranges (rated values), voltages: -25 mV to +25 mV Yes
Input ranges (rated values), voltages: Input resistance (-25 mV to +25 mV) 10 MΩ
Input ranges (rated values), voltages: -250 mV to +250 mV Yes
Input ranges (rated values), voltages: Input resistance (-250 mV to +250 mV) 10 MΩ
Input ranges (rated values), voltages: -50 mV to +50 mV Yes
Input ranges (rated values), voltages: Input resistance (-50 mV to +50 mV) 10 MΩ
Input ranges (rated values), voltages: -500 mV to +500 mV Yes
Input ranges (rated values), voltages: Input resistance (-500 mV to +500 mV) 10 MΩ
Input ranges (rated values), voltages: -80 mV to +80 mV Yes
Input ranges (rated values), voltages: Input resistance (-80 mV to +80 mV) 10 MΩ
Input ranges (rated values), thermocouples: type B Yes
Input ranges (rated values), thermocouples: Input resistance (Type B) 10 MΩ
Input ranges (rated values), thermocouples: Type E Yes
Input ranges (rated values), thermocouples: Type J Yes
Input ranges (rated values), thermocouples: Type K Yes
Input ranges (rated values), thermocouples: Type L Yes
Input ranges (rated values), thermocouples: Type N Yes
Input ranges (rated values), thermocouples: Type R Yes
Input ranges (rated values), thermocouples: Type S Yes
Input ranges (rated values), thermocouples: Type T Yes
Input ranges (rated values), thermocouples: Type U Yes
Input ranges (rated values), resistance thermometer: Ni 100 Yes
Input ranges (rated values), resistance thermometer: Input resistance (Ni 100) 10 MΩ
Input ranges (rated values), resistance thermometer: Pt 100 Yes
Input ranges (rated values), resistance thermometer: Pt 200 Yes
Cable length: shielded, max. 200 m; TC: 50 m

Analog value generation for the inputs 3

Integration and conversion time/resolution per channel: Resolution with overrange (bit including sign), max. 16 bit; 10 bit to 15 bit + sign
Integration and conversion time/resolution per channel: Integration time, parameterizable Yes; 2.5 to 100 ms
Integration and conversion time/resolution per channel: Interference voltage suppression for interference frequency f1 in Hz 10 to 400 Hz

Encoder 2

Connection of signal encoders: for current measurement as 2-wire transducer Yes
Connection of signal encoders: for current measurement as 4-wire transducer Yes

Errors/accuracies 2

Operational error limit in overall temperature range: Resistance thermometer, relative to input range, (+/-) 0.04 %; 0.09 to 0.04%
Basic error limit (operational limit at 25 °C): Resistance thermometer, relative to input range, (+/-) 0.008 %; 0.018 ... 0.008%

Interrupts/diagnostics/status information 7

Diagnostics function Yes
Diagnoses: Diagnostic information readable Yes
Diagnoses: Overrange Yes
Diagnoses: Wire-break in signal transmitter cable Yes
Diagnoses: Short-circuit of the signal encoder cable Yes
Diagnostics indication LED: Group error SF (red) Yes
Diagnostics indication LED: Channel fault indicator F (red) Yes

Ex(i) characteristics 6

Module for Ex(i) protection Yes
maximum values for connecting terminals for gas group IIC: Uo (no-load voltage), max. 5.9 V
maximum values for connecting terminals for gas group IIC: Io (short-circuit current), max. 28.8 mA
maximum values for connecting terminals for gas group IIC: Po (power output), max. 41.4 mW
maximum values for connecting terminals for gas group IIC: Co (permissible external capacity), max. 43 µF
maximum values for connecting terminals for gas group IIC: Lo (permissible external inductivity), max. 40 mH

Potential separation 2

Potential separation analog inputs: between the channels No
Potential separation analog inputs: between the channels and backplane bus Yes

Standards, approvals, certificates 1

Use in hazardous areas: ATEX marking ATEX II 3 G (2) GD Ex nA [ib Gb] [ib IIIC Db] IIC T4 Gc

Version Classification 4

eClass 16 27-24-22-01
ETIM 10 EC001420
IDEA 4 3562
UNSPSC 15 32-15-17-05

Manufacturer Declara- Miscellaneous Declaration of Con- 2

tion formity For use in hazard-
General Product Approval ous locations

Logistics 6

Net weight 0.33 kg
Country of origin DE
Shipping weight 0.83 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 01 Nov 2026

Documents

Documents for 6ES7331-7SF00-0AB0

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • ATEX
Quick answers

Questions about the 6ES7331-7SF00-0AB0

What is the HS code of 6ES7331-7SF00-0AB0 for customs?

The tariff (HS) code on file for 6ES7331-7SF00-0AB0 is 85389091.

What is the EAN of 6ES7331-7SF00-0AB0?

The EAN (GTIN) of 6ES7331-7SF00-0AB0 is 4025515061236.

Where does 6ES7331-7SF00-0AB0 ship from, and how fast?

6ES7331-7SF00-0AB0 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
