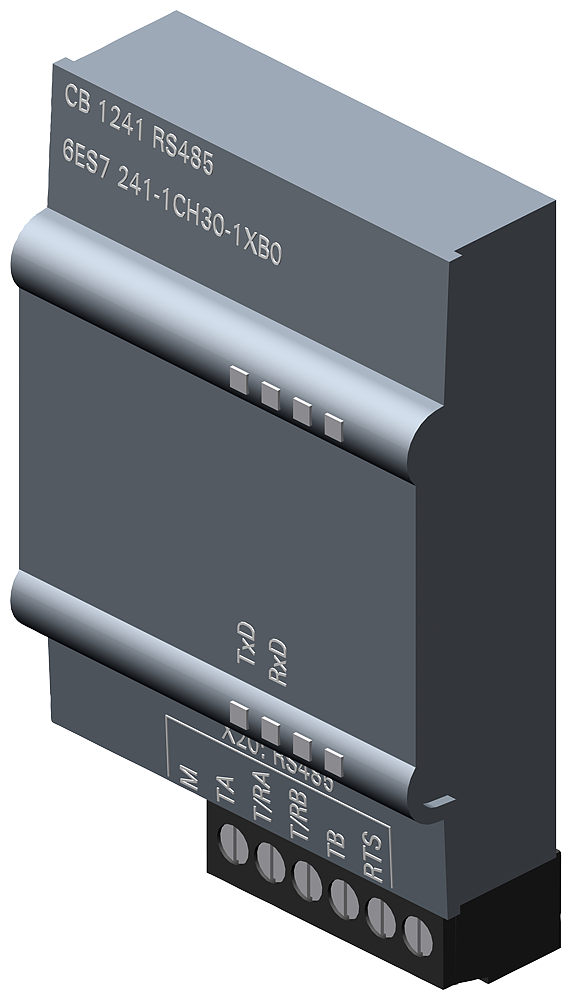

SIMATIC S7-1200Siemens 6ES7241-1CH30-1XB0 SIMATIC S7-1200 CB 1241 RS485 Communication Board
SIMATIC S7-1200 CB 1241 RS485 communication board, Freeport, Modbus RTU, USS, up to 1000m.
Description
About the CB 1241 RS 485
About the CB 1241 RS 485
The Siemens 6ES7241-1CH30-1XB0 is a SIMATIC S7-1200 CB 1241 communication board that adds an RS485 port with terminal-block wiring for point-to-point serial links up to 1000m. It supports the Freeport, Modbus RTU master/slave, USS, and 3964(R) protocol drivers, drawing 50mA from the backplane bus at 1.5W power loss, and mounts onto the CPU's signal-board slot without using a side-rack position.
Certifications & Standards
- CE
- CSA
- UL
- cULus
- FM
- RCM
- KC
- Marine
Selection Notes
Built-in Modbus RTU master and device drivers let this board poll third-party serial devices or answer as a Modbus slave without an external gateway or a separate CM 1241 module on the rack side. It mounts on the CPU's signal-board slot, so it's the right choice when the application needs exactly one extra serial port and the side rack slots are needed for I/O instead — for a second independent RS485/RS232 port, add a CM 1241 communication module rather than stacking signal boards. The 1000m point-to-point run at RS485 levels covers longer field runs than the RS232 boards in the same family support.
Applications
Adds a Modbus RTU or Freeport serial link to a compact S7-1200 CPU for connecting VFDs, meters, or third-party instruments over RS485 without a rack-mounted communication module.
Specification
Full specification
General information 1
| Product type designation | CB 1241 RS 485 |
|---|
Input current 1
| from backplane bus 5 V DC, typ. | 50 mA |
|---|
Power loss 1
| Power loss, typ. | 1.5 W |
|---|
Show all 60 specifications ↓ Show less ↑57 more values in Identification, Interfaces, Protocols, Interrupts/diagnostics/status information, Degree and class of protection, Standards, approvals, certificates, Ambient conditions, Mechanics/material, Dimensions, Weights, Logistics.
Identification 10
| Part number | 6ES7241-1CH30-1XB0 |
|---|---|
| Type designation | CB 1241 RS 485 |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 6940408100930 |
| ETIM class | EC001423 |
| eCl@ss | 27242208 |
Interfaces 6
| Point-to-point connection: Cable length, max. Integrated protocol driver | 1 000 m |
|---|---|
| Point-to-point connection: Freeport | Yes |
| Point-to-point connection: ASCII | Yes; Available as library function |
| Point-to-point connection: Modbus RTU master | Yes |
| Point-to-point connection: Modbus RTU device | Yes |
| Point-to-point connection: USS | Yes; Available as library function |
Protocols 7
| Integrated protocols Freeport: Telegram length, max. | 1 kbyte |
|---|---|
| Integrated protocols Freeport: Bits per character | 7 or 8 |
| Integrated protocols Freeport: Number of stop bits | 1 (Standard), 2 |
| Integrated protocols Freeport: Parity 3964 (R) | No parity (standard); even, uneven, mark (parity bit always 1); space (parity bit always 0) |
| Integrated protocols Freeport: Parity Modbus RTU master | No parity (standard); even, uneven, mark (parity bit always 1); space (parity bit always 0) |
| Integrated protocols Freeport: Address area | 1 through 49 999 (Standard Modbus addressing) |
| Integrated protocols Freeport: max. number of devices Modbus RTU device | 247; slave numbers 1 through 247, per MODBUS network segment maximum 32 devices, additional repeaters needed to expand the network to maximum configuration |
Interrupts/diagnostics/status information 1
| Diagnostics function | Yes |
|---|
Degree and class of protection 1
| IP degree of protection | IP20 |
|---|
Standards, approvals, certificates 8
| CE mark | Yes |
|---|---|
| CSA approval | Yes |
| UL approval | Yes |
| cULus | Yes |
| FM approval | Yes |
| RCM (formerly C-TICK) | Yes |
| KC approval | Yes |
| Marine approval | Yes |
Ambient conditions 13
| Free fall: Fall height, max. | 0.3 m; five times, in product package |
|---|---|
| Ambient temperature during operation: min. | -20 °C |
| Ambient temperature during operation: max. | 60 °C |
| Ambient temperature during operation: horizontal installation, min. | -20 °C |
| Ambient temperature during operation: vertical installation, min. | -20 °C |
| Ambient temperature during operation: permissible temperature change | 5°C to 55°C, 3°C / minute |
| Ambient temperature during storage/transportation: min. | -40 °C |
| Ambient temperature during storage/transportation: max. | 70 °C |
| Air pressure acc. to IEC 60068-2-13: Operation, min. | 795 hPa |
| Air pressure acc. to IEC 60068-2-13: Operation, max. | 1 080 hPa |
| Air pressure acc. to IEC 60068-2-13: Storage/transport, min. | 660 hPa |
| Air pressure acc. to IEC 60068-2-13: Storage/transport, max. | 1 080 hPa |
| Relative humidity: Operation at 25 ℃ without condensation, max. | 95 % |
Mechanics/material 1
| Enclosure material (front): plastic | Yes |
|---|
Dimensions 3
| Width | 38 mm |
|---|---|
| Height | 62 mm |
| Depth | 21 mm |
Weights 1
| Weight, approx. | 40 g |
|---|
Logistics 6
| Net weight | 0.031 kg |
|---|---|
| Country of origin | CN |
| Shipping weight | 0.531 kg |
| Ships from | Türkiye |
| Dispatch | 12 Nov |
| Stock | In stock |
