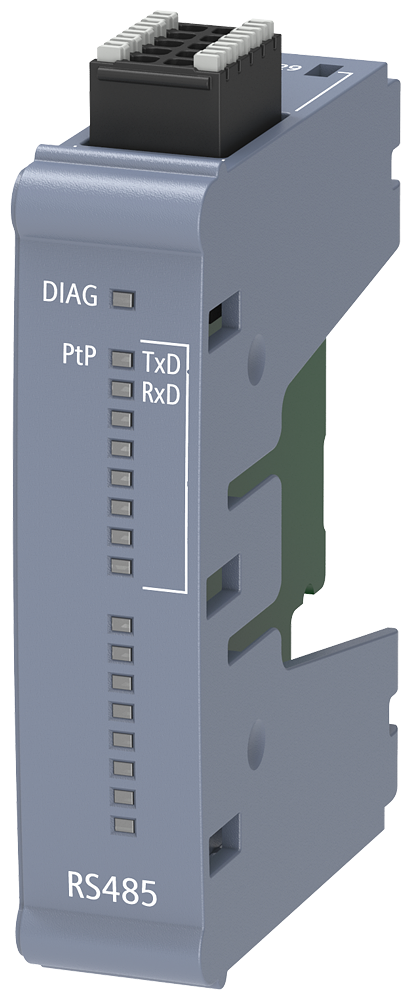

SIMATIC S7-1200Siemens 6ES7241-1CA50-0XB0 SIMATIC S7-1200 CB 1241 RS485 Communication Board
SIMATIC S7-1200 CB 1241 communication board, RS485, Modbus RTU and USS support.
Description
About the CB 1241 RS 485
About the CB 1241 RS 485
The Siemens 6ES7241-1CA50-0XB0 SIMATIC S7-1200 CB 1241 is a communication board that adds one RS 485 interface to a compact CPU, supporting Freeport, ASCII, Modbus RTU master/device, and USS protocols at up to 250 kbit/s. It draws 75 mA from the backplane bus and connects over point-to-point cable runs up to 1000 m.
Certifications & Standards
- CE
- UL
- cULus
- RCM
- KC
Selection Notes
The CB 1241 plugs into the S7-1200 CPU's onboard communication board slot rather than a rack expansion position, adding RS 485 connectivity without using up a signal-module slot. In Modbus RTU master mode the CPU can poll up to 247 slave devices under standard Modbus addressing, with a maximum of 32 devices per physical segment before a repeater is required; Modbus RTU device mode instead lets another master poll this CPU. The USS protocol, available as a library function, is the relevant mode when the RS 485 link talks to Siemens drives rather than third-party Modbus instruments.
Applications
Adds RS 485 serial connectivity to an S7-1200 for Modbus RTU instrument networks, USS-based drive control loops, or Freeport ASCII communication with third-party serial devices.
Specification
Full specification
General information 1
| Product type designation | CB 1241 RS 485 |
|---|
Input current 1
| from backplane bus 5 V DC, typ. | 75 mA |
|---|
Power loss 1
| Power loss, typ. | 0.4 W |
|---|
Show all 71 specifications ↓ Show less ↑68 more values in Identification, Interfaces, Interface types, Protocols, Interrupts/diagnostics/status information, Degree and class of protection, Standards, approvals, certificates, Ambient conditions, Mechanics/material, Dimensions, Weights, EClass 8 27-24-22-08, Logistics.
Identification 10
| Part number | 6ES7241-1CA50-0XB0 |
|---|---|
| Type designation | CB 1241 RS 485 |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4034106036195 |
| ETIM class | EC001423 |
| eCl@ss | 27242208 |
Interfaces 8
| Interfaces/bus type | RS 485 |
|---|---|
| Number of interfaces | 1 |
| Point-to-point connection: Cable length, max. Integrated protocol driver | 1 000 m |
| Point-to-point connection: Freeport | Yes |
| Point-to-point connection: ASCII | Yes; Available as library function |
| Point-to-point connection: Modbus RTU master | Yes |
| Point-to-point connection: Modbus RTU device | Yes |
| Point-to-point connection: USS | Yes; Available as library function |
Interface types 1
| RS 485: Transmission rate, max. | 250 kbit/s |
|---|
Protocols 6
| Integrated protocols Freeport: Telegram length, max. | 4 kbyte |
|---|---|
| Integrated protocols Freeport: Bits per character | 7 or 8 |
| Integrated protocols Freeport: Number of stop bits | 1 (Standard), 2 |
| Integrated protocols Freeport: Parity Modbus RTU master | no parity (standard); even, odd, mark (parity bit always 1); space (parity bit always 0) |
| Integrated protocols Freeport: Address area | 1 through 65535 (Standard Modbus addressing) |
| Integrated protocols Freeport: max. number of devices Modbus RTU device | 247; slave numbers 1 through 247, per MODBUS network segment maximum 32 devices, additional repeaters needed to expand the network to maximum configuration |
Interrupts/diagnostics/status information 3
| Diagnostics function | Yes |
|---|---|
| Diagnostics indication LED: DIAG LED | Yes |
| Diagnostics indication LED: for status of the outputs | Yes |
Degree and class of protection 1
| IP degree of protection | IP20 |
|---|
Standards, approvals, certificates 8
| CE mark | Yes |
|---|---|
| CSA approval | No |
| UL approval | Yes |
| cULus | Yes |
| FM approval | No |
| RCM (formerly C-TICK) | Yes |
| KC approval | Yes |
| Marine approval | No |
Ambient conditions 15
| Free fall: Fall height, max. | 0.3 m; five times, in product package |
|---|---|
| Ambient temperature during operation: horizontal installation, min. | -20 °C |
| Ambient temperature during operation: vertical installation, min. | -20 °C |
| Ambient temperature during storage/transportation: min. | -40 °C |
| Ambient temperature during storage/transportation: max. | 70 °C |
| Air pressure acc. to IEC 60068-2-13: Operation, min. | 540 hPa |
| Air pressure acc. to IEC 60068-2-13: Operation, max. | 1 140 hPa |
| Air pressure acc. to IEC 60068-2-13: Storage/transport, min. | 540 hPa |
| Air pressure acc. to IEC 60068-2-13: Storage/transport, max. | 1 140 hPa |
| Altitude during operation relating to sea level: Installation altitude, min. | -1 000 m |
| Relative humidity: Operation, max. | 95 %; no condensation |
| Vibrations: Vibration resistance during operation acc. to IEC 60068-2-6 | 3.5 mm from 5 - 8.4 Hz, 1g from 8.4 - 150 Hz |
| Vibrations: Operation, tested according to IEC 60068-2-6 | Yes |
| Shock testing: tested according to IEC 60068-2-27 | Yes; IEC 68, Part 2-27 half-sine: strength of the shock 15 g (peak value), duration 11 ms |
| Pollutant concentrations: SO2 at RH < 60% without condensation | S02: < 0.5 ppm; H2S: < 0.1 ppm; RH < 60 % condensation-free |
Mechanics/material 1
| Enclosure material (front): Plastic | Yes |
|---|
Dimensions 3
| Width | 15 mm |
|---|---|
| Height | 62 mm |
| Depth | 63 mm |
Weights 1
| Weight, approx. | 29 g |
|---|
EClass 8 27-24-22-08 4
| eClass | 7.1 27-24-22-08 |
|---|---|
| ETIM | 10 EC001423 |
| IDEA | 4 3564 |
| UNSPSC | 15 32-15-17-05 |
Logistics 7
| Net weight | 0.043 kg |
|---|---|
| Package dimensions | 83 × 36 × 80 mm |
| Country of origin | DE |
| Shipping weight | 0.543 kg |
| Ships from | Türkiye |
| Dispatch | 12 Nov |
| Stock | In stock |
