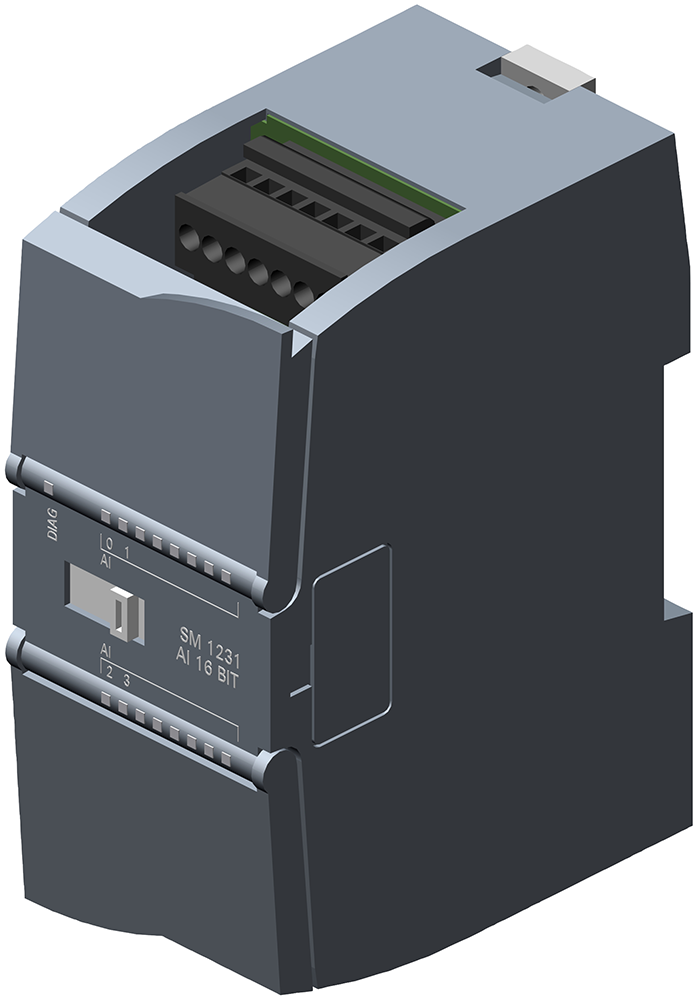

SIMATIC S7-1200Siemens 6ES7231-5ND32-0XB0 SIMATIC S7-1200 SM 1231 AI 4x16bit 0-20mA/+-10V PLC I/O Module
Siemens SM 1231 analog input module, 4AI, 16-bit+sign, 0-20mA/4-20mA, +/-10V ranges.
Description
About the SM 1231, AI 4x16 bit
About the SM 1231, AI 4x16 bit
The Siemens SIMATIC S7-1200 SM 1231 (6ES7231-5ND32-0XB0) is a 4-channel analog input module resolving 15 bits plus sign, accepting voltage ranges from +/-1.25 V up to +/-10 V or current ranges of 0-20 mA and 4-20 mA. It runs from a 24 V DC supply at 65 mA typical, includes wire-break diagnostics, and carries an IP20 rating for cabinet mounting.
Certifications & Standards
- CE
- CSA
- UL
- cULus
- FM
- RCM
- KC
- Marine
Selection Notes
With 15-bit-plus-sign resolution and a 100 microsecond cycle time across all channels, this module suits process signals needing fine granularity, such as pressure transmitters on the 4-20 mA range, rather than simple on/off sensing. The four independently configurable voltage and current ranges mean one module can mix sensor types on a single S7-1200 station instead of stocking separate voltage-only and current-only cards. Diagnostic alarm and wire-break detection are active per channel, useful when the loop must flag a disconnected sensor rather than reading a false zero.
Applications
Used for reading process transmitters, such as pressure, level, and flow transmitters with 4-20 mA output, and precision voltage signals into a SIMATIC S7-1200 station in small to mid-size machine and process control panels.
Specification
Full specification
General information 1
| Product type designation | SM 1231, AI 4x16 bit |
|---|
Supply voltage 1
| Rated value (DC) | 24 V |
|---|
Input current 2
| Current consumption, typ. | 65 mA |
|---|---|
| from backplane bus 5 V DC, typ. | 80 mA |
Show all 85 specifications ↓ Show less ↑81 more values in Identification, Power loss, Analog inputs, Analog value generation for the inputs, Errors/accuracies, Interrupts/diagnostics/status information, Degree and class of protection, Standards, approvals, certificates, Ambient conditions, Version Classification, General Product Approval, Logistics.
Identification 10
| Part number | 6ES7231-5ND32-0XB0 |
|---|---|
| Type designation | SM 1231, AI 4x16 bit |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 6940408102088 |
| ETIM class | EC001420 |
| eCl@ss | 27242201 |
Power loss 1
| Power loss, typ. | 1.8 W |
|---|
Analog inputs 18
| Number of analog inputs | 4; Current or voltage differential inputs |
|---|---|
| permissible input voltage for voltage input (destruction limit), max. | ±35 V |
| permissible input current for current input (destruction limit), max. | 40 mA |
| Cycle time (all channels) max. | 100 µs |
| Input ranges: Voltage | Yes; ±10V, ±5V, ±2.5V or ±1.25V |
| Input ranges: Current | Yes; 4 to 20 mA, 0 to 20 mA |
| Input ranges: Thermocouple | No |
| Input ranges: Resistance thermometer | No |
| Input ranges: Resistance | No |
| Input ranges (rated values), voltages: -1.25 V to +1.25 V | Yes |
| Input ranges (rated values), voltages: -10 V to +10 V | Yes |
| Input ranges (rated values), voltages: Input resistance (-10 V to +10 V) | ≥1 MOhm |
| Input ranges (rated values), voltages: -2.5 V to +2.5 V | Yes |
| Input ranges (rated values), voltages: Input resistance (-2.5 V to +2.5 V) | ≥1 MOhm |
| Input ranges (rated values), voltages: -5 V to +5 V | Yes |
| Input ranges (rated values), voltages: Input resistance (-5 V to +5 V) | ≥1 MOhm |
| Input ranges (rated values), currents: 0 to 20 mA | Yes |
| Input ranges (rated values), currents: 4 mA to 20 mA | Yes |
Analog value generation for the inputs 8
| Integration and conversion time/resolution per channel: Resolution with overrange (bit including sign), max. | 15 bit; + sign |
|---|---|
| Integration and conversion time/resolution per channel: Integration time, parameterizable | Yes |
| Integration and conversion time/resolution per channel: Interference voltage suppression for interference frequency f1 in Hz | 40 dB, DC to 60 V for interference frequency 50 / 60 Hz |
| Smoothing of measured values: parameterizable | Yes |
| Smoothing of measured values: Step: None | Yes |
| Smoothing of measured values: Step: low | Yes |
| Smoothing of measured values: Step: Medium | Yes |
| Smoothing of measured values: Step: High | Yes |
Errors/accuracies 4
| Temperature error (relative to input range), (+/-) | 25 °C ±0.1% / ±0.3% total measurement range |
|---|---|
| Basic error limit (operational limit at 25 °C): Voltage, relative to input range, (+/-) | 0.1 % |
| Basic error limit (operational limit at 25 °C): Current, relative to input range, (+/-) | 0.1 % |
| Interference voltage suppression for f = n x (f1 +/- 1 %), f1 = interference frequency: Common mode voltage, max. | 12 V |
Interrupts/diagnostics/status information 7
| Alarms | Yes |
|---|---|
| Diagnostics function | Yes |
| Alarms: Diagnostic alarm | Yes |
| Diagnoses: Monitoring the supply voltage | Yes |
| Diagnoses: Wire break | Yes |
| Diagnostics indication LED: for status of the inputs | Yes |
| Diagnostics indication LED: for maintenance | Yes |
Degree and class of protection 1
| IP degree of protection | IP20 |
|---|
Standards, approvals, certificates 13
| CE mark | Yes |
|---|---|
| CSA approval | Yes |
| UL approval | Yes |
| cULus | Yes |
| FM approval | Yes |
| RCM (formerly C-TICK) | Yes |
| KC approval | Yes |
| Marine approval | Yes |
| Ecological footprint: environmental product declaration Global warming potential | Yes |
| Ecological footprint: global warming potential, (total) [CO2 eq] | 43.1 kg |
| Ecological footprint: global warming potential, (during production) [CO2 eq] | 7.62 kg |
| Ecological footprint: global warming potential, (during operation) [CO2 eq] | 36 kg |
| Ecological footprint: global warming potential, (after end of life cycle) [CO2 eq] | -0.544 kg |
Ambient conditions 7
| Free fall: Fall height, max. | 0.3 m; five times, in product package |
|---|---|
| Ambient temperature during operation: min. | -20 °C |
| Ambient temperature during operation: max. | 60 °C |
| Ambient temperature during operation: horizontal installation, min. | -20 °C |
| Ambient temperature during operation: vertical installation, min. | -20 °C |
| Ambient temperature during storage/transportation: min. | -40 °C |
| Ambient temperature during storage/transportation: max. | 70 °C |
Version Classification 4
| eClass | 16 27-24-22-01 |
|---|---|
| ETIM | 10 EC001420 |
| IDEA | 4 3562 |
| UNSPSC | 15 32-15-17-05 |
General Product Approval 2
| Miscellaneous Manufacturer Declara- Metrological Approval tion | For use in hazard- |
|---|---|
| General Product Approval EMV | ous locations |
Logistics 6
| Net weight | 0.161 kg |
|---|---|
| Country of origin | CN |
| Shipping weight | 0.661 kg |
| Ships from | Türkiye |
| Dispatch | 12 Nov |
| Stock | In stock |
Source: manufacturer data · Last verified: 01 Nov 2026
