- Part number
- 6ES7226-6BA32-0XB0
- Model no
- SM 1226, F-DI 16x24 V DC
In stock · 27
Dispatch
Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days.
· From Türkiye
0
- CE

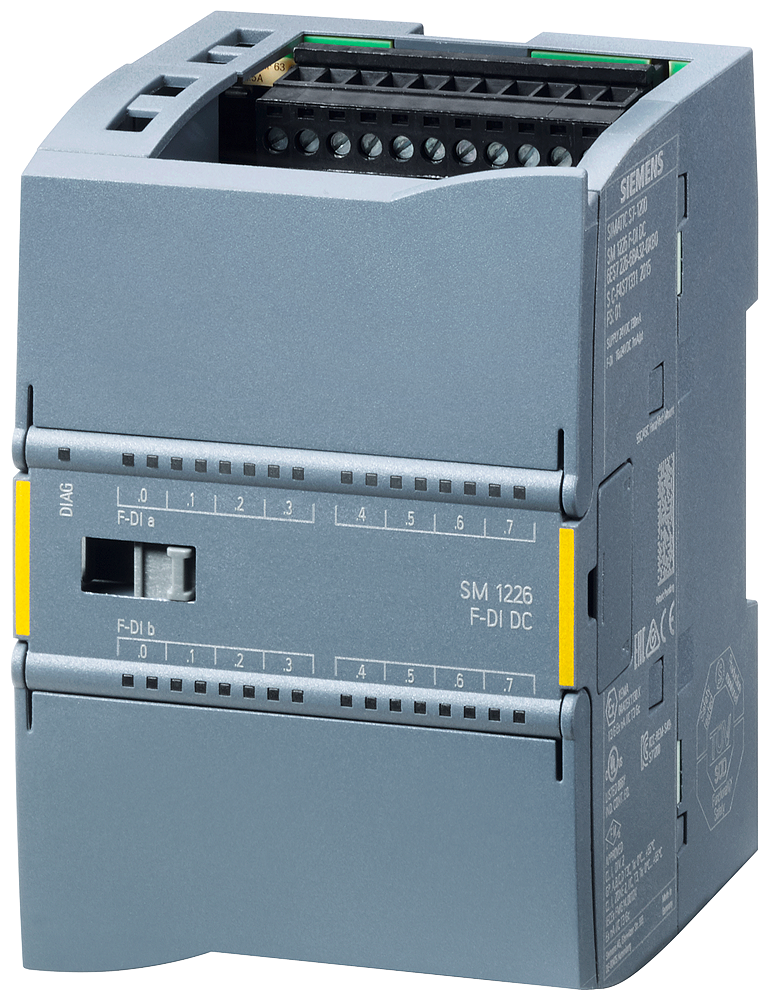

SIMATIC S7-1200Siemens 6ES7226-6BA32-0XB0 SIMATIC S7-1200 SM 1226 F-DI 16x24V DC Fail-safe PLC I/O Module
SIMATIC S7-1200 SM 1226 fail-safe module, 16x F-DI 24V DC, PROFIsafe, PL e/SIL 3.
Description
About the SM 1226, F-DI 16x24 V DC
About the SM 1226, F-DI 16x24 V DC
The Siemens 6ES7226-6BA32-0XB0 is a SIMATIC S7-1200 SM 1226 fail-safe digital input module with 16 channels at 24 V DC, configurable as 16 single-channel (1oo1) or 8 dual-channel (1oo2) safety inputs. It reaches Performance Level e per ISO 13849-1 and SIL 3 per IEC 61508 in two-channel mode, with PFH below 1.00E-10 1/h.
Certifications & Standards
- CE
- cULus
- FM
Selection Notes
Wiring each input pair a.x/b.x as a single 1oo2 dual-channel circuit reaches the full SIL 3 / PL e rating; leaving channels as independent 1oo1 inputs caps the achievable class at SIL 2 / PL d, so the wiring choice - not a different SKU - decides the safety level on this module. One 16-input module can therefore serve either 16 independent single-channel sensors or 8 redundant safety circuits, versus buying two smaller fail-safe modules for a mixed application.
Applications
E-stop pushbuttons, safety door and guard switches, and light-curtain OSSD outputs wired into an S7-1200 fail-safe CPU via PROFIsafe for machine safety circuits up to PL e / SIL 3.
Specification
Full specification
General information 1
| Product type designation | SM 1226, F-DI 16x24 V DC |
|---|
Supply voltage 4
| Rated value (DC) | 24 V |
|---|---|
| permissible range, lower limit (DC) | 20.4 V |
| permissible range, upper limit (DC) | 28.8 V |
| power supply according to NEC Class 2 required | No |
Input current 2
| from backplane bus 5 V DC, max. | 155 mA; Current consumption (SM Bus, 5 V DC): 155 mA |
|---|---|
| Digital inputs: from load voltage L+ (without load), max. | 130 mA; 130 mA + 6 mA / input used + any Vs1/Vs2 current used |
Show all 56 specifications ↓ Show less ↑49 more values in Identification, Power loss, Digital inputs, Interrupts/diagnostics/status information, Degree and class of protection, Standards, approvals, certificates, Ambient conditions, Mechanics/material, Dimensions, Weights, Logistics.
Identification 10
| Part number | 6ES7226-6BA32-0XB0 |
|---|---|
| Type designation | SM 1226, F-DI 16x24 V DC |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4025515082897 |
| ETIM class | EC001419 |
| eCl@ss | 27242204 |
Power loss 1
| Power loss, typ. | 7 W |
|---|
Digital inputs 9
| Number of digital inputs | 16; 16 (1oo1) or 8 (1oo2); Note: You can individually assign each pair of inputs "a.x" and "b.x" as a single (1oo2)-channel or as 2 separate (1oo1)-channels |
|---|---|
| Number of simultaneously controllable inputs horizontal installation: up to 50 °C, max. vertical installation | 16; 16 inputs at 55 °C horizontal |
| Input voltage: for signal "0" | -30 V DC to +5 V DC |
| Input voltage: for signal "1" | 15 V DC to 30 V DC |
| Input current: for signal "0", max. (permissible quiescent current) | 0.5 mA |
| Input current: for signal "1", typ. | 5 mA |
| Input delay (for rated value of input voltage) for standard inputs: parameterizable | Yes; 0.8 / 1.6 / 3.2 / 6.4 / 12.8 ms |
| Cable length: shielded, max. | 200 m; unshielded with input filter time of 1.6 ms to 12.6 ms (With an input delay of 0.8 ms, shielded cables must be used for the digital inputs and the sensor supply) |
| Cable length: unshielded, max. | 200 m; Shielded with input filter time of 0.8 ms to 12.6 s (With an input delay of 0.8 ms, shielded cables must be used for the digital inputs and the sensor supply) |
Interrupts/diagnostics/status information 1
| Diagnostics indication LED: for status of the inputs | Yes |
|---|
Degree and class of protection 1
| IP degree of protection | IP20 |
|---|
Standards, approvals, certificates 7
| CE mark | Yes |
|---|---|
| cULus | Yes |
| FM approval | Yes |
| Highest safety class achievable in safety mode: Performance level according to ISO 13849-1 | 1-channel, Category 3, PL d; 2-channel, Category 3 or 4, PL e |
| Highest safety class achievable in safety mode: SIL acc. to IEC 61508 Probability of failure (for service life of 20 years and repair time of 100 hours) | SIL 2 (single-channel), SIL 3 (two-channel) |
| Highest safety class achievable in safety mode: Low demand mode: PFDavg in accordance with SIL2 | < 5.00E-04 |
| Highest safety class achievable in safety mode: High demand/continuous mode: PFH in accordance with SIL2 | < 1.00E-08 1/h |
Ambient conditions 9
| Free fall: Fall height, max. | 0.3 m; five times, in product package |
|---|---|
| Ambient temperature during operation: min. | 0 °C |
| Ambient temperature during operation: max. | 55 °C |
| Ambient temperature during operation: permissible temperature change | 5°C to 55°C, 3°C / minute |
| Ambient temperature during storage/transportation: min. | -40 °C |
| Ambient temperature during storage/transportation: max. | 70 °C |
| Air pressure acc. to IEC 60068-2-13: Storage/transport, min. | 660 hPa |
| Air pressure acc. to IEC 60068-2-13: Storage/transport, max. | 1 080 hPa |
| Relative humidity: Operation at 25 ℃ without condensation, max. | 95 % |
Mechanics/material 1
| Enclosure material (front): Plastic | Yes |
|---|
Dimensions 3
| Width | 70 mm |
|---|---|
| Height | 100 mm |
| Depth | 75 mm |
Weights 1
| Weight, approx. | 250 g |
|---|
Logistics 6
| Net weight | 0.256 kg |
|---|---|
| Country of origin | CN |
| Shipping weight | 0.756 kg |
| Ships from | Türkiye |
| Dispatch | 12 Nov |
| Stock | In stock |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6ES7226-6BA32-0XB0
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE
- CE mark
- cULus
- FM approval
Quick answers
Questions about the SM 1226, F-DI 16x24 V DC
Which supply voltage is SM 1226, F-DI 16x24 V DC rated for?
The rated operational voltage of SM 1226, F-DI 16x24 V DC is 24 V AC.
What is the HS code of SM 1226, F-DI 16x24 V DC for customs?
The tariff (HS) code on file for SM 1226, F-DI 16x24 V DC is 85389091.
What is the EAN of SM 1226, F-DI 16x24 V DC?
The EAN (GTIN) of SM 1226, F-DI 16x24 V DC is 4025515082897.
Where does SM 1226, F-DI 16x24 V DC ship from, and how fast?
SM 1226, F-DI 16x24 V DC ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
