- Part number
- 6ES7223-7BF50-0XB0
- Model no
- SB 1223, DI 4x 24 V DC/DQ 4x 24 V DC 100 kHz
In stock · 50+
Dispatch
Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days.
· From Türkiye
0

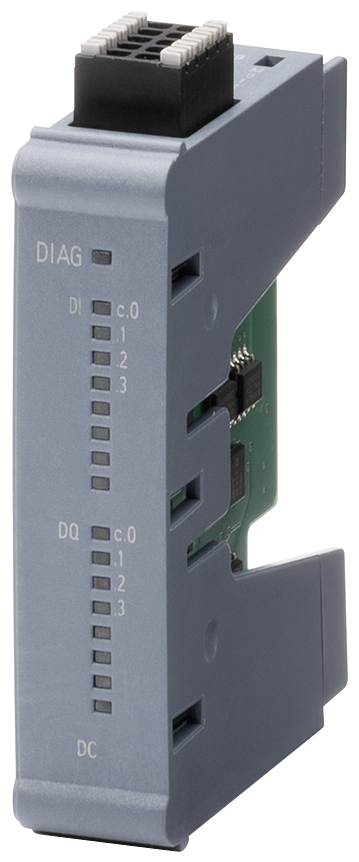

SIMATIC S7-1200Siemens 6ES7223-7BF50-0XB0 SIMATIC S7-1200 SB 1223 4DI/4DO 100kHz PLC I/O Module
SIMATIC S7-1200 SB 1223 signal board, 4DI/4DO 24V DC, up to 100kHz
Description
About the SB 1223, DI 4x 24 V DC/DQ 4x 24 V DC 100 kHz
About the SB 1223, DI 4x 24 V DC/DQ 4x 24 V DC 100 kHz
The Siemens 6ES7223-7BF50-0XB0 is a SIMATIC S7-1200 G2 signal board (SB 1223) that adds 4 digital inputs and 4 digital outputs, both rated 24 V DC and switchable up to 100 kHz for high-speed counting and pulse output. It plugs directly into the CPU housing without consuming rack space and switches loads up to 0.1 A per output.
Certifications & Standards
- CE
- UL
- cULus
- RCM
- KC
Selection Notes
The 100 kHz switching speed on both inputs and outputs handles quadrature encoder feedback and PTO pulse trains that a standard low-speed signal board cannot; pick a conventional-speed SB instead when the application only switches proximity sensors and relays and doesn't need high-speed counting. Because S7-1211C/1212C CPUs have a single signal-board slot, this combined 4DI/4DO board covers a mixed input-and-output need in one slot rather than requiring a DI-only and DQ-only board.
Applications
Adding compact high-speed digital I/O to a small SIMATIC S7-1200 CPU without expanding the rack: quadrature encoder or limit-switch inputs, PTO pulse outputs for simple positioning, and general 24 V DC switching where board space is limited.
Specification
Full specification
General information 2
| Product type designation | SB 1223, DI 4x 24 V DC/DQ 4x 24 V DC 100 kHz |
|---|---|
| Engineering with: STEP 7 TIA Portal configurable/integrated from version | V20 or higher |
Supply voltage 3
| Rated value (DC) | 24 V |
|---|---|
| permissible range, lower limit (DC) | 20.4 V |
| permissible range, upper limit (DC) | 28.8 V |
Input current 3
| from backplane bus 5 V DC, typ. | 48 mA |
|---|---|
| Digital inputs: from load voltage L+ (without load), max. | 6 mA; per channel |
| Digital outputs: from load voltage L+, max. | 15 mA |
Show all 107 specifications ↓ Show less ↑99 more values in Identification, Power loss, Digital inputs, Digital outputs, Interrupts/diagnostics/status information, Potential separation, Degree and class of protection, Standards, approvals, certificates, Ambient conditions, Mechanics/material, Dimensions, Weights, EClass 9 27-24-22-04, Approvals / Certificates, Logistics.
Identification 10
| Part number | 6ES7223-7BF50-0XB0 |
|---|---|
| Type designation | SB 1223, DI 4x 24 V DC/DQ 4x 24 V DC 100 kHz |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4047623417200 |
| ETIM class | EC001419 |
| eCl@ss | 27242204 |
Power loss 1
| Power loss, typ. | 1.7 W |
|---|
Digital inputs 13
| Number of digital inputs | 4; sink / source |
|---|---|
| in groups of | 4 |
| Input characteristic curve in accordance with IEC 61131, type 1 | Yes |
| Number of simultaneously controllable inputs all mounting positions: up to 40 °C, max. | 4 |
| Input voltage: Rated value (DC) | 24 V |
| Input voltage: for signal "0" | 5 V DC or 0.5 mA |
| Input voltage: for signal "1" | 15 V DC at 2.5 mA |
| Input current: for signal "0", max. (permissible quiescent current) | 0.5 mA |
| Input current: for signal "1", min. | 3.3 mA |
| Input current: for signal "1", typ. | 6 mA |
| Input delay (for rated value of input voltage) for standard inputs: parameterizable for interrupt inputs | Yes; 0.1 / 0.2 / 0.4 / 0.8 / 1.6 / 3.2 / 6.4 / 10.0 / 12.8 / 20.0 μs; 0.05 / 0.1 / 0.2 / 0.4 / 0.8 / 1.6 / 3.2 / 6.4 / 10.0 / 12.8 / 20.0 ms |
| Cable length: shielded, max. | 500 m; 500 m shielded, 50 m shielded for HSC inputs |
| Cable length: unshielded, max. | 300 m |
Digital outputs 13
| Number of digital outputs | 4 |
|---|---|
| in groups of | 4 |
| Short-circuit protection | Yes |
| Switching capacity of the outputs: with resistive load, max. | 0.1 A |
| Output voltage: Rated value (DC) | 24 V |
| Output voltage: for signal "0", max. | 1 V |
| Output voltage: for signal "1", min. | L+ (-1.5 V) |
| Output current: for signal "1" rated value | 0.1 A |
| Output delay with resistive load: "0" to "1", max. | 1.8 µs |
| Output delay with resistive load: "1" to "0", max. | 1.8 µs |
| Total current of the outputs (per group) horizontal installation: up to 50 °C, max. | 0.2 A |
| Cable length: shielded, max. | 500 m; 500 m shielded, 50 m shielded for PTO outputs |
| Cable length: unshielded, max. | 150 m |
Interrupts/diagnostics/status information 6
| Diagnostics function | Yes |
|---|---|
| Alarms: Diagnostic alarm | Yes |
| Diagnoses: Monitoring the supply voltage | Yes |
| Diagnostics indication LED: DIAG LED | Yes |
| Diagnostics indication LED: for status of the inputs | Yes |
| Diagnostics indication LED: for status of the outputs | Yes |
Potential separation 8
| Potential separation digital inputs: between the channels | No |
|---|---|
| Potential separation digital inputs: between the channels, in groups of | 4 |
| Potential separation digital inputs: Number of potential groups | 1 |
| Potential separation digital inputs: between the channels and backplane bus | Yes; 707 V DC (type test) |
| Potential separation digital outputs: between the channels | No |
| Potential separation digital outputs: between the channels, in groups of | 4 |
| Potential separation digital outputs: Number of potential groups | 1 |
| Potential separation digital outputs: between the channels and backplane bus | Yes; 707 V DC (type test) |
Degree and class of protection 1
| IP degree of protection | IP20 |
|---|
Standards, approvals, certificates 14
| Siemens Eco Profile (SEP) | Siemens EcoTech |
|---|---|
| CE mark | Yes |
| CSA approval | No |
| UL approval | Yes |
| cULus | Yes |
| FM approval | No |
| RCM (formerly C-TICK) | Yes |
| KC approval | Yes |
| Marine approval | No |
| Ecological footprint: environmental product declaration Global warming potential | Yes; type 2 acc. to ISO 14021 |
| Ecological footprint: global warming potential, (total) [CO2 eq] | 9.53 kg |
| Ecological footprint: global warming potential, (during production) [CO2 eq] | 3.86 kg |
| Ecological footprint: global warming potential, (during operation) [CO2 eq] | 5.74 kg |
| Ecological footprint: global warming potential, (after end of life cycle) [CO2 eq] | -0.086 kg |
Ambient conditions 17
| Free fall: Fall height, max. | 0.3 m; five times, in product package |
|---|---|
| Ambient temperature during operation: min. | -20 °C |
| Ambient temperature during operation: max. | 40 °C; at max. voltages and max. specifications |
| Ambient temperature during operation: horizontal installation, min. | -20 °C |
| Ambient temperature during operation: vertical installation, min. | -20 °C |
| Ambient temperature during storage/transportation: min. | -40 °C |
| Ambient temperature during storage/transportation: max. | 70 °C |
| Air pressure acc. to IEC 60068-2-13: Operation, min. | 540 hPa |
| Air pressure acc. to IEC 60068-2-13: Operation, max. | 1 140 hPa |
| Air pressure acc. to IEC 60068-2-13: Storage/transport, min. | 540 hPa |
| Air pressure acc. to IEC 60068-2-13: Storage/transport, max. | 1 140 hPa |
| Altitude during operation relating to sea level: Installation altitude, min. | -1 000 m |
| Relative humidity: Operation at 25 ℃ without condensation, max. | 95 % |
| Vibrations: Vibration resistance during operation acc. to IEC 60068-2-6 | 3.5 mm from 5 - 8.4 Hz, 1g from 8.4 - 150 Hz |
| Vibrations: Operation, tested according to IEC 60068-2-6 | Yes |
| Shock testing: tested according to IEC 60068-2-27 | Yes; IEC 68, Part 2-27 half-sine: strength of the shock 15 g (peak value), duration 11 ms |
| Pollutant concentrations: SO2 at RH < 60% without condensation | S02: < 0.5 ppm; H2S: < 0.1 ppm; RH < 60 % condensation-free |
Mechanics/material 1
| Enclosure material (front): Plastic | Yes |
|---|
Dimensions 3
| Width | 15 mm |
|---|---|
| Height | 62 mm |
| Depth | 63 mm |
Weights 1
| Weight, approx. | 28 g |
|---|
EClass 9 27-24-22-04 2
| eClass | 8 27-24-22-04 |
|---|---|
| ETIM | 10 EC001419 |
Approvals / Certificates 2
| General Product Approval Miscellaneous | For use in hazard- |
|---|---|
| General Product Approval EMV | ous locations |
Logistics 7
| Net weight | 0.041 kg |
|---|---|
| Package dimensions | 82 × 34 × 79 mm |
| Country of origin | CN |
| Shipping weight | 0.541 kg |
| Ships from | Türkiye |
| Dispatch | 12 Nov |
| Stock | In stock |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6ES7223-7BF50-0XB0
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE mark
- UL approval
- cULus
- RCM (formerly C-TICK)
- KC approval
Quick answers
Questions about the SB 1223, DI 4x 24 V DC/DQ 4x 24 V DC 100 kHz
What is the rated current of SB 1223, DI 4x 24 V DC/DQ 4x 24 V DC 100 kHz?
The rated current of SB 1223, DI 4x 24 V DC/DQ 4x 24 V DC 100 kHz is 0.1 A.
Which supply voltage is SB 1223, DI 4x 24 V DC/DQ 4x 24 V DC 100 kHz rated for?
The rated operational voltage of SB 1223, DI 4x 24 V DC/DQ 4x 24 V DC 100 kHz is 24 V AC.
What is the HS code of SB 1223, DI 4x 24 V DC/DQ 4x 24 V DC 100 kHz for customs?
The tariff (HS) code on file for SB 1223, DI 4x 24 V DC/DQ 4x 24 V DC 100 kHz is 85389091.
What is the EAN of SB 1223, DI 4x 24 V DC/DQ 4x 24 V DC 100 kHz?
The EAN (GTIN) of SB 1223, DI 4x 24 V DC/DQ 4x 24 V DC 100 kHz is 4047623417200.
Where does SB 1223, DI 4x 24 V DC/DQ 4x 24 V DC 100 kHz ship from, and how fast?
SB 1223, DI 4x 24 V DC/DQ 4x 24 V DC 100 kHz ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
