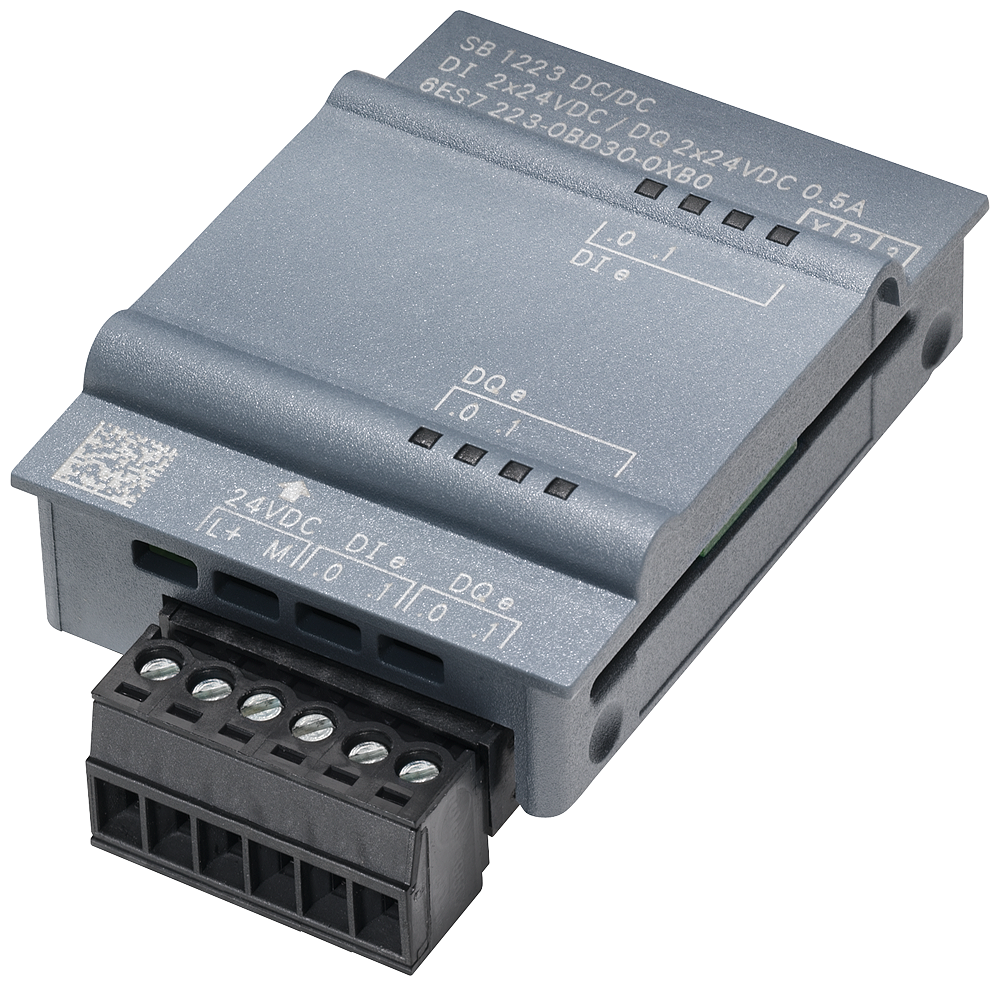

SIMATIC S7-1200Siemens 6ES7223-3BD30-0XB0 SIMATIC S7-1200 SB 1223 2DI/2DQ 200kHz PLC I/O Module
SB 1223 signal board for S7-1200 - 2DI/2DQ, 200kHz high-speed counting, solid-state outputs.
Description
About the SB 1223, DI 2x24 V DC/DQ 2x24 V DC 200 kHz
About the SB 1223, DI 2x24 V DC/DQ 2x24 V DC 200 kHz
The Siemens 6ES7223-3BD30-0XB0 SB 1223 is a SIMATIC S7-1200 signal board adding 2 digital inputs and 2 solid-state digital outputs rated 0.1 A, with both inputs and outputs capable of 200 kHz high-speed counting and pulse functions. It mounts directly onto the CPU front, drawing 35 mA typical from the backplane bus and adding just 0.5 W of power loss.
Certifications & Standards
- CE
- CSA
- UL
- cULus
- FM
- RCM
- KC
- Marine
Selection Notes
The 200 kHz input/output speed makes this signal board suitable for high-speed counting or pulse-train applications that the CPU's standard onboard I/O cannot handle at full rate, so it is the right pick when the application needs a fast encoder input or PTO-class pulse output without consuming a communication module slot. Outputs are MOSFET solid-state rated only 0.1 A, so they suit logic-level and small-relay-coil signaling rather than direct contactor or lamp switching; for higher-current loads, an SM 1222 relay output module is the better choice. Because it plugs into the CPU's dedicated signal board slot rather than the backplane bus, it adds I/O without using one of the CPU's communication module or signal module slots.
Applications
High-speed pulse counting or PTO/PWM output expansion on compact S7-1200 CPUs where panel space rules out a full-size digital I/O module.
Specification
Full specification
General information 1
| Product type designation | SB 1223, DI 2x24 V DC/DQ 2x24 V DC 200 kHz |
|---|
Input current 1
| from backplane bus 5 V DC, typ. | 35 mA |
|---|
Power loss 1
| Power loss, typ. | 0.5 W |
|---|
Show all 68 specifications ↓ Show less ↑65 more values in Identification, Digital inputs, Digital outputs, Interrupts/diagnostics/status information, Standards, approvals, certificates, Ambient conditions, Mechanics/material, Dimensions, Weights, EClass 6 27-24-22-04, Logistics.
Identification 10
| Part number | 6ES7223-3BD30-0XB0 |
|---|---|
| Type designation | SB 1223, DI 2x24 V DC/DQ 2x24 V DC 200 kHz |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 6940408100800 |
| ETIM class | EC001419 |
| eCl@ss | 27242204 |
Digital inputs 11
| Number of digital inputs | 2; Current-sourcing |
|---|---|
| in groups of | 2 |
| Number of simultaneously controllable inputs all mounting positions: up to 40 °C, max. | 2 |
| Input voltage: Rated value (DC) | 24 V |
| Input voltage: for signal "0" | (L+ minus 5.0 V DC) ... L+ |
| Input voltage: for signal "1" | 0 V ... (L+ minus 10 V DC) |
| Input current: for signal "0", max. (permissible quiescent current) | 1.4 mA |
| Input current: for signal "1", min. | 2.9 mA |
| Input current: for signal "1", typ. | 7 mA |
| Input delay (for rated value of input voltage) for standard inputs: parameterizable for interrupt inputs | Yes; 0.1 / 0.2 / 0.4 / 0.8 / 1.6 / 3.2 / 6.4 / 10.0 / 12.8 / 20.0 μs; 0.05 / 0.1 / 0.2 / 0.4 / 0.8 / 1.6 / 3.2 / 6.4 / 10.0 / 12.8 / 20.0 ms |
| Cable length: shielded, max. | 50 m; shielded, twisted pair |
Digital outputs 10
| Number of digital outputs | 2; MOSFET, solid-state (current-sinking/current-sourcing) |
|---|---|
| in groups of | 2 |
| Short-circuit protection | No |
| Switching capacity of the outputs: with resistive load, max. | 0.1 A |
| Output voltage: Rated value (DC) | 24 V |
| Output voltage: for signal "0", max. | 1 V |
| Output voltage: for signal "1", min. | L+ (-1.5 V) |
| Output current: for signal "1" rated value | 0.1 A |
| Output current: for signal "1" permissible range, max. | 0.1 A |
| Cable length: shielded, max. | 50 m |
Interrupts/diagnostics/status information 2
| Diagnostics indication LED: for status of the inputs | Yes |
|---|---|
| Diagnostics indication LED: for status of the outputs | Yes |
Standards, approvals, certificates 8
| CE mark | Yes |
|---|---|
| CSA approval | Yes |
| UL approval | Yes |
| cULus | Yes |
| FM approval | Yes |
| RCM (formerly C-TICK) | Yes |
| KC approval | Yes |
| Marine approval | Yes |
Ambient conditions 10
| Free fall: Fall height, max. | 0.3 m; five times, in product package |
|---|---|
| Ambient temperature during operation: min. | -20 °C |
| Ambient temperature during operation: max. | 60 °C |
| Ambient temperature during operation: horizontal installation, min. | -20 °C |
| Ambient temperature during operation: vertical installation, min. | -20 °C |
| Ambient temperature during storage/transportation: min. | -40 °C |
| Ambient temperature during storage/transportation: max. | 70 °C |
| Air pressure acc. to IEC 60068-2-13: Storage/transport, min. | 660 hPa |
| Air pressure acc. to IEC 60068-2-13: Storage/transport, max. | 1 080 hPa |
| Relative humidity: Operation at 25 ℃ without condensation, max. | 95 % |
Mechanics/material 1
| Enclosure material (front): Plastic | Yes |
|---|
Dimensions 3
| Width | 38 mm |
|---|---|
| Height | 62 mm |
| Depth | 21 mm |
Weights 1
| Weight, approx. | 35 g |
|---|
EClass 6 27-24-22-04 3
| ETIM | 10 EC001419 |
|---|---|
| IDEA | 4 3566 |
| UNSPSC | 15 32-15-17-05 |
Logistics 6
| Net weight | 0.03 kg |
|---|---|
| Country of origin | CN |
| Shipping weight | 0.53 kg |
| Ships from | Türkiye |
| Dispatch | 12 Nov |
| Stock | In stock |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6ES7223-3BD30-0XB0
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE
- UL
- CE mark
- CSA approval
- UL approval
- cULus
- FM approval
- RCM (formerly C-TICK)
- KC approval
- Marine approval
Quick answers
Questions about the SB 1223, DI 2x24 V DC/DQ 2x24 V DC 200 kHz
What is the rated current of SB 1223, DI 2x24 V DC/DQ 2x24 V DC 200 kHz?
The rated current of SB 1223, DI 2x24 V DC/DQ 2x24 V DC 200 kHz is 0.1 A.
Which supply voltage is SB 1223, DI 2x24 V DC/DQ 2x24 V DC 200 kHz rated for?
The rated operational voltage of SB 1223, DI 2x24 V DC/DQ 2x24 V DC 200 kHz is 24 V AC.
What is the HS code of SB 1223, DI 2x24 V DC/DQ 2x24 V DC 200 kHz for customs?
The tariff (HS) code on file for SB 1223, DI 2x24 V DC/DQ 2x24 V DC 200 kHz is 85389091.
What is the EAN of SB 1223, DI 2x24 V DC/DQ 2x24 V DC 200 kHz?
The EAN (GTIN) of SB 1223, DI 2x24 V DC/DQ 2x24 V DC 200 kHz is 6940408100800.
Where does SB 1223, DI 2x24 V DC/DQ 2x24 V DC 200 kHz ship from, and how fast?
SB 1223, DI 2x24 V DC/DQ 2x24 V DC 200 kHz ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
