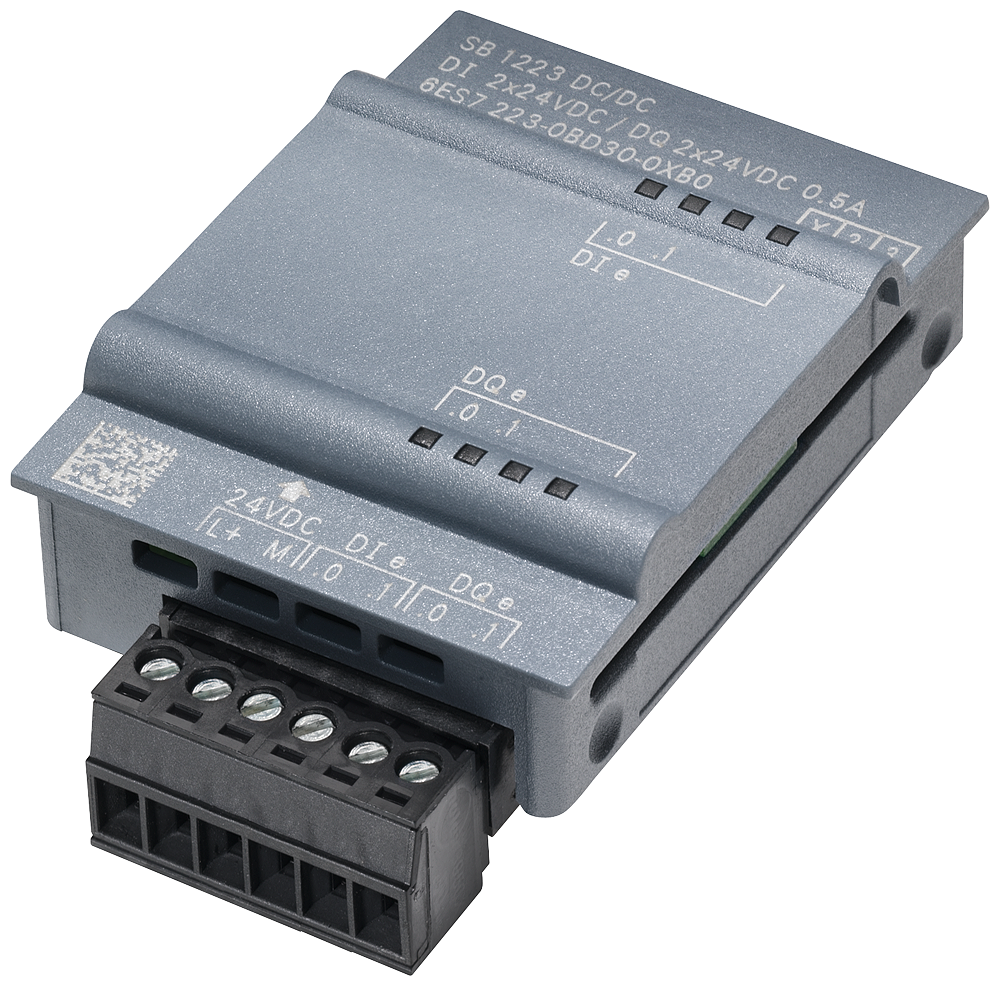

SIMATIC S7-1200Siemens 6ES7223-0BD30-0XB0 SIMATIC S7-1200 Signal Board SB1223 2DI/2DO PLC I/O Module
Siemens SIMATIC S7-1200 Signal Board SB1223, 2 DI / 2 DO 24V DC, plugs into CPU housing.
Description
About the SB 1223, DI 2x24 V DC/DQ 2x24 V DC
About the SB 1223, DI 2x24 V DC/DQ 2x24 V DC
The Siemens SIMATIC S7-1200 Signal Board SB1223 6ES7223-0BD30-0XB0 adds 2 digital inputs and 2 digital outputs to an S7-1200 CPU without using a base rack slot, since it plugs directly into the front of the CPU housing. The 24 V DC inputs are current-sinking and the MOSFET outputs switch up to 0.5 A resistive load, giving a compact option for a few extra I/O points.
Certifications & Standards
- CE
- CSA
- UL
- cULus
- FM
- RCM
- KC
- Marine
Selection Notes
With only 2 DI and 2 DO at 0.5 A per output, this board suits a handful of extra points on a project already short 1-4 I/O channels; if the shortfall is larger, an SM 1223 signal module in the base rack is the better fit since it scales to 16 or more channels. Because it occupies the CPU's own signal-board slot rather than a rack position, it does not reduce the number of signal modules or communication modules the CPU can otherwise carry.
Specification
Full specification
General information 1
| Product type designation | SB 1223, DI 2x24 V DC/DQ 2x24 V DC |
|---|
Supply voltage 2
| permissible range, lower limit (DC) | 20.4 V |
|---|---|
| permissible range, upper limit (DC) | 28.8 V |
Input current 1
| from backplane bus 5 V DC, typ. | 50 mA |
|---|
Show all 76 specifications ↓ Show less ↑72 more values in Identification, Output voltage, Power loss, Digital inputs, Digital outputs, Interrupts/diagnostics/status information, Standards, approvals, certificates, Ambient conditions, Mechanics/material, Dimensions, Version Classification, Logistics.
Identification 10
| Part number | 6ES7223-0BD30-0XB0 |
|---|---|
| Type designation | SB 1223, DI 2x24 V DC/DQ 2x24 V DC |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 6940408100466 |
| ETIM class | EC001419 |
| eCl@ss | 27242204 |
Output voltage 1
| Power supply to the transmitters: Supply current, max. | 4 mA; per channel |
|---|
Power loss 1
| Power loss, typ. | 1 W |
|---|
Digital inputs 11
| Number of digital inputs | 2; Current-sinking |
|---|---|
| in groups of | 1 |
| Input characteristic curve in accordance with IEC 61131, type 1 | Yes |
| Number of simultaneously controllable inputs all mounting positions: up to 40 °C, max. | 2 |
| Input voltage: Rated value (DC) | 24 V |
| Input voltage: for signal "0" | 0 to 5 V |
| Input voltage: for signal "1" | +15 to +30 V |
| Input current: for signal "0", max. (permissible quiescent current) | 1 mA |
| Input current: for signal "1", typ. | 7 mA |
| Input delay (for rated value of input voltage) for standard inputs: parameterizable | Yes; 0.2 ms, 0.4 ms, 0.8 ms, 1.6 ms, 3.2 ms, 6.4 ms and 12.8 ms, selectable in groups of four |
| Cable length: shielded, max. | 50 m |
Digital outputs 13
| Number of digital outputs | 2; MOSFET, solid-state (current-sinking/current-sourcing) |
|---|---|
| in groups of | 1 |
| Short-circuit protection | No |
| Switching capacity of the outputs: with resistive load, max. | 0.5 A |
| Switching capacity of the outputs: on lamp load, max. | 5 W |
| Load resistance range: upper limit | 0.6 Ω |
| Output voltage: Rated value (DC) | 24 V |
| Output voltage: for signal "0", max. | 0.1 V; with 10 kOhm load |
| Output voltage: for signal "1", min. | 20 V |
| Output current: for signal "1" rated value | 0.5 A |
| Output current: for signal "1" permissible range, max. | 0.5 A |
| Output current: for signal "0" residual current, max. | 10 µA |
| Cable length: shielded, max. | 50 m |
Interrupts/diagnostics/status information 4
| Alarms | Yes |
|---|---|
| Diagnostics function | Yes |
| Diagnostics indication LED: for status of the inputs | Yes |
| Diagnostics indication LED: for status of the outputs | Yes |
Standards, approvals, certificates 8
| CE mark | Yes |
|---|---|
| CSA approval | Yes |
| UL approval | Yes |
| cULus | Yes |
| FM approval | Yes |
| RCM (formerly C-TICK) | Yes |
| KC approval | Yes |
| Marine approval | Yes |
Ambient conditions 10
| Free fall: Fall height, max. | 0.3 m; five times, in product package |
|---|---|
| Ambient temperature during operation: min. | -20 °C |
| Ambient temperature during operation: max. | 60 °C |
| Ambient temperature during operation: horizontal installation, min. | -20 °C |
| Ambient temperature during operation: vertical installation, min. | -20 °C |
| Ambient temperature during storage/transportation: min. | -40 °C |
| Ambient temperature during storage/transportation: max. | 70 °C |
| Air pressure acc. to IEC 60068-2-13: Storage/transport, min. | 660 hPa |
| Air pressure acc. to IEC 60068-2-13: Storage/transport, max. | 1 080 hPa |
| Relative humidity: Operation at 25 ℃ without condensation, max. | 95 % |
Mechanics/material 1
| Enclosure material (front): Plastic | Yes |
|---|
Dimensions 3
| Width | 38 mm |
|---|---|
| Height | 62 mm |
| Depth | 21 mm |
Version Classification 4
| eClass | 16 27-24-22-04 |
|---|---|
| ETIM | 10 EC001419 |
| IDEA | 4 3566 |
| UNSPSC | 15 32-15-17-05 |
Logistics 6
| Net weight | 0.03 kg |
|---|---|
| Country of origin | CN |
| Shipping weight | 0.53 kg |
| Ships from | Türkiye |
| Dispatch | 13 Nov |
| Stock | In stock |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6ES7223-0BD30-0XB0
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE mark
- CSA approval
- UL approval
- cULus
- FM approval
- RCM (formerly C-TICK)
- KC approval
- Marine approval
Quick answers
Questions about the SB 1223, DI 2x24 V DC/DQ 2x24 V DC
What is the rated current of SB 1223, DI 2x24 V DC/DQ 2x24 V DC?
The rated current of SB 1223, DI 2x24 V DC/DQ 2x24 V DC is 0.5 A.
Which supply voltage is SB 1223, DI 2x24 V DC/DQ 2x24 V DC rated for?
The rated operational voltage of SB 1223, DI 2x24 V DC/DQ 2x24 V DC is 24 V AC.
What is the HS code of SB 1223, DI 2x24 V DC/DQ 2x24 V DC for customs?
The tariff (HS) code on file for SB 1223, DI 2x24 V DC/DQ 2x24 V DC is 85389091.
What is the EAN of SB 1223, DI 2x24 V DC/DQ 2x24 V DC?
The EAN (GTIN) of SB 1223, DI 2x24 V DC/DQ 2x24 V DC is 6940408100466.
Where does SB 1223, DI 2x24 V DC/DQ 2x24 V DC ship from, and how fast?
SB 1223, DI 2x24 V DC/DQ 2x24 V DC ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
