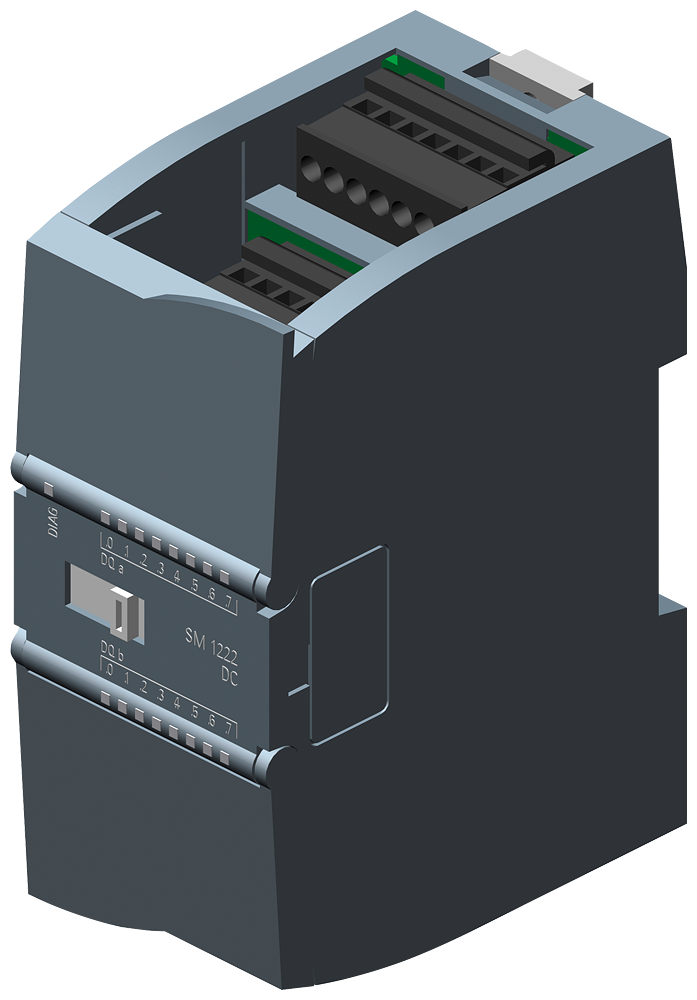

SIMATIC S7-1200Siemens 6ES7222-1BH32-0XB0 SIMATIC S7-1200 SM 1222 16x24VDC/0.5A Digital Output PLC I/O Module
SIMATIC S7-1200 digital output module SM 1222, 16 DO, 24V DC / 0.5A transistor, IP20.
Description
About the SM 1222, DQ 16x24 V DC/0.5 A
About the SM 1222, DQ 16x24 V DC/0.5 A
The Siemens 6ES7222-1BH32-0XB0 is a SIMATIC S7-1200 digital output module (SM 1222) with 16 transistor outputs rated 24 V DC at 0.5 A per channel, expanding a CPU rack with additional discrete outputs. Outputs are not internally short-circuit protected, so external fusing or protection is required per channel.
Certifications & Standards
- CE
- CSA
- UL
- cULus
- FM
- RCM
- KC
- Marine Approval
Selection Notes
Each output switches independently (grouped in ones, not fours), so one shorted or overloaded channel does not drag down its neighbors — but because the module has no internal short-circuit protection, size external fusing per channel at or below 0.5 A to protect the transistor stage. The 200 µs turn-off delay with resistive load suits most contactor and solenoid coils; for higher-frequency switching or lamp loads, check the 5 W lamp-load rating against actual inrush current before wiring incandescent indicators directly.
Applications
Driving 24 V DC loads such as indicator lamps, small relays, and solenoid valves directly from an S7-1200 CPU rack without an external output relay module.
Specification
Full specification
General information 1
| Product type designation | SM 1222, DQ 16x24 V DC/0.5 A |
|---|
Supply voltage 2
| permissible range, lower limit (DC) | 20.4 V |
|---|---|
| permissible range, upper limit (DC) | 28.8 V |
Input current 1
| from backplane bus 5 V DC, max. | 140 mA |
|---|
Show all 77 specifications ↓ Show less ↑73 more values in Identification, Power loss, Digital outputs, Interrupts/diagnostics/status information, Potential separation, Degree and class of protection, Standards, approvals, certificates, Ambient conditions, Connection method, Mechanics/material, Dimensions, Weights, EClass 14 27-24-22-04, For use in hazardous locations Maritime application, Logistics.
Identification 10
| Part number | 6ES7222-1BH32-0XB0 |
|---|---|
| Type designation | SM 1222, DQ 16x24 V DC/0.5 A |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 6940408101951 |
| ETIM class | EC001419 |
| eCl@ss | 27242204 |
Power loss 1
| Power loss, typ. | 2.5 W |
|---|
Digital outputs 16
| Number of digital outputs | 16 |
|---|---|
| in groups of | 1 |
| Short-circuit protection | No; to be provided externally |
| Limitation of inductive shutdown voltage to Switching capacity of the outputs | typ. (L+) -48 V |
| with resistive load, max. | 0.5 A |
| on lamp load, max. | 5 W |
| Output voltage: Rated value (DC) | 24 V |
| Output voltage: for signal "0", max. | 0.1 V; with 10 kOhm load |
| Output voltage: for signal "1", min. | 20 V DC |
| Output current: for signal "1" rated value | 0.5 A |
| Output current: for signal "0" residual current, max. | 10 µA |
| Output delay with resistive load: "0" to "1", max. | 50 µs |
| Output delay with resistive load: "1" to "0", max. | 200 µs |
| Total current of the outputs (per group) horizontal installation: up to 50 °C, max. | 8 A; Current per mass |
| Cable length: shielded, max. | 500 m |
| Cable length: unshielded, max. | 150 m |
Interrupts/diagnostics/status information 2
| Alarms: Diagnostic alarm | Yes |
|---|---|
| Diagnostics indication LED: for status of the outputs | Yes |
Potential separation 2
| Potential separation digital outputs: between the channels, in groups of | 1 |
|---|---|
| Potential separation digital outputs: between the channels and backplane bus | 500 V AC |
Degree and class of protection 1
| IP degree of protection | IP20 |
|---|
Standards, approvals, certificates 13
| CE mark | Yes |
|---|---|
| CSA approval | Yes |
| UL approval | Yes |
| cULus | Yes |
| FM approval | Yes |
| RCM (formerly C-TICK) | Yes |
| KC approval | Yes |
| Marine approval | Yes |
| Ecological footprint: environmental product declaration Global warming potential | Yes |
| Ecological footprint: global warming potential, (total) [CO2 eq] | 68.6 kg |
| Ecological footprint: global warming potential, (during production) [CO2 eq] | 8.16 kg |
| Ecological footprint: global warming potential, (during operation) [CO2 eq] | 60.7 kg |
| Ecological footprint: global warming potential, (after end of life cycle) [CO2 eq] | -0.334 kg |
Ambient conditions 11
| Free fall: Fall height, max. | 0.3 m; five times, in product package |
|---|---|
| Ambient temperature during operation: min. | -20 °C |
| Ambient temperature during operation: max. | 60 °C |
| Ambient temperature during operation: horizontal installation, min. | -20 °C |
| Ambient temperature during operation: vertical installation, min. | -20 °C |
| Ambient temperature during operation: permissible temperature change | 5°C to 55°C, 3°C / minute |
| Ambient temperature during storage/transportation: min. | -40 °C |
| Ambient temperature during storage/transportation: max. | 70 °C |
| Air pressure acc. to IEC 60068-2-13: Storage/transport, min. | 660 hPa |
| Air pressure acc. to IEC 60068-2-13: Storage/transport, max. | 1 080 hPa |
| Relative humidity: Operation at 25 ℃ without condensation, max. | 95 % |
Connection method 1
| required front connector | Yes |
|---|
Mechanics/material 1
| Enclosure material (front): Plastic | Yes |
|---|
Dimensions 3
| Width | 45 mm |
|---|---|
| Height | 100 mm |
| Depth | 75 mm |
Weights 1
| Weight, approx. | 220 g |
|---|
EClass 14 27-24-22-04 4
| eClass | 12 27-24-22-04 |
|---|---|
| ETIM | 10 EC001419 |
| IDEA | 4 3566 |
| UNSPSC | 15 32-15-17-05 |
For use in hazardous locations Maritime application 1
| Miscellaneous CCC-Ex NK / Nippon Kaiji Ky- | okai |
|---|
Logistics 6
| Net weight | 0.195 kg |
|---|---|
| Country of origin | DE |
| Shipping weight | 0.695 kg |
| Ships from | Türkiye |
| Dispatch | 13 Nov |
| Stock | In stock |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6ES7222-1BH32-0XB0
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE mark
- CSA approval
- UL approval
- cULus
- FM approval
- RCM (formerly C-TICK)
- KC approval
- Marine approval
Quick answers
Questions about the SM 1222, DQ 16x24 V DC/0.5 A
What is the rated current of SM 1222, DQ 16x24 V DC/0.5 A?
The rated current of SM 1222, DQ 16x24 V DC/0.5 A is 0.5 A.
Which supply voltage is SM 1222, DQ 16x24 V DC/0.5 A rated for?
The rated operational voltage of SM 1222, DQ 16x24 V DC/0.5 A is 24 V AC.
What is the HS code of SM 1222, DQ 16x24 V DC/0.5 A for customs?
The tariff (HS) code on file for SM 1222, DQ 16x24 V DC/0.5 A is 85389091.
What is the EAN of SM 1222, DQ 16x24 V DC/0.5 A?
The EAN (GTIN) of SM 1222, DQ 16x24 V DC/0.5 A is 6940408101951.
Where does SM 1222, DQ 16x24 V DC/0.5 A ship from, and how fast?
SM 1222, DQ 16x24 V DC/0.5 A ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
