How to Select an Interface Relay for PLC Outputs
A step-by-step guide to matching PLC output type, coil voltage and current, contact rating, and socket style when selecting an interface relay.
- Part number
- 6ES7211-1HE40-0XB0
- Model no
- CPU 1211C DC/DC/relay
Low stock
Dispatch
Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days.
· From Türkiye
0

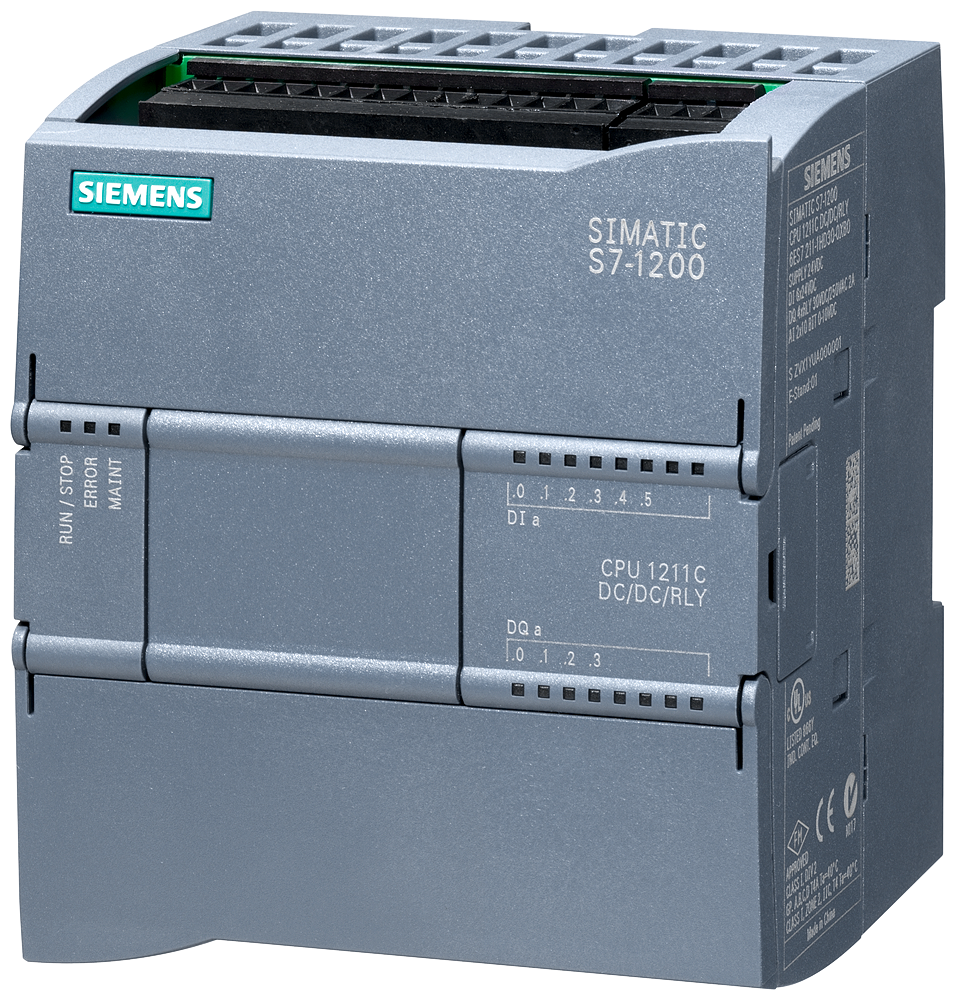

SIMATIC S7-1200Siemens 6ES7211-1HE40-0XB0 SIMATIC S7-1200 CPU 1211C DC/DC/Relay 6DI/4DO/2AI Programmable Logic Controller
Siemens SIMATIC S7-1200 CPU 1211C DC/DC/Relay PLC, 6DI/4DO/2AI, 75KB memory, PROFINET IO controller/device, OPC UA.
Description
About the CPU 1211C DC/DC/relay
About the CPU 1211C DC/DC/relay
The Siemens 6ES7211-1HE40-0XB0 is a SIMATIC S7-1200 CPU 1211C compact controller with DC/DC/relay I/O: 6 digital inputs, 4 relay outputs (2 A), and 2 analog inputs (0-10 V). It runs on 20.4-28.8 V DC, holds 75 KB of program/data memory, and communicates over a single PROFINET interface supporting IO controller, IO device, and OPC UA server functions.
Certifications & Standards
- CE
- UL
- cULus
- FM
- RCM
- KC
- Marine
Selection Notes
The relay outputs on this DC/DC/Relay variant switch up to 2 A resistive or 200 W lamp loads directly, including AC loads, which a transistor-output CPU of the same family cannot do without an external relay - pick this variant when the application drives contactors, indicator lamps, or small AC loads straight from the CPU. With 6 DI, 2 AI, and 4 relay DO built in, the 1211C covers small standalone machines; applications needing more onboard I/O call for the higher-tier CPUs in the same family. The single PROFINET port doubles as IO controller and IO device, so this CPU can run as a PROFINET master to remote I/O or as a device under a higher-level controller.
Applications
Suited to small standalone machine control, packaging, and utility skids where a handful of digital I/O and one PROFINET network connection are enough, and where outputs need to drive AC contactors or pilot lights directly from the CPU relay outputs.
Specification
Full specification
General information 3
| Product type designation | CPU 1211C DC/DC/relay |
|---|---|
| Firmware version | V4.7 |
| Engineering with: Programming package | STEP 7 V20 or higher |
Supply voltage 7
| Rated value (DC): 24 V DC | Yes |
|---|---|
| permissible range, lower limit (DC) | 20.4 V |
| permissible range, upper limit (DC) | 28.8 V |
| Reverse polarity protection | Yes |
| Load voltage L+: Rated value (DC) | 24 V |
| Load voltage L+: permissible range, lower limit (DC) | 20.4 V |
| Load voltage L+: permissible range, upper limit (DC) | 28.8 V |
Input current 4
| Current consumption (rated value) | 300 mA; CPU only |
|---|---|
| Current consumption, max. | 900 mA; CPU with all expansion modules |
| Inrush current, max. | 12 A; at 28.8 V DC |
| I2t | 0.8 A2·s |
Show all 240 specifications ↓ Show less ↑226 more values in Identification, Output current, Encoder supply, Power loss, Storage, CPU processing times, CPU-blocks, Data areas and their retentivity, Address area, Hardware configuration, Time of day, Digital inputs, Digital outputs, Analog inputs, Analog outputs, Analog value generation for the inputs, Encoder, Interfaces, 1. Interface, Protocols, Communication functions, Test commissioning functions, Interrupts/diagnostics/status information, Integrated Functions, Potential separation, EMC, Degree and class of protection, Standards, approvals, certificates, Ambient conditions, Configuration, Dimensions, Weights, Logistics.
Identification 10
| Part number | 6ES7211-1HE40-0XB0 |
|---|---|
| Type designation | CPU 1211C DC/DC/relay |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4047623402688 |
| ETIM class | EC000236 |
| eCl@ss | 27242207 |
Output current 1
| for backplane bus (5 V DC), max. | 750 mA; Max. 5 V DC for CM |
|---|
Encoder supply 1
| 24 V encoder supply: 24 V | L+ minus 4 V DC min. |
|---|
Power loss 1
| Power loss, typ. | 8 W |
|---|
Storage 6
| Work memory: integrated | 75 kbyte |
|---|---|
| Load memory: integrated | 1 Mbyte |
| Load memory: Plug-in (SIMATIC Memory Card), max. | with SIMATIC memory card |
| Backup: present | Yes |
| Backup: maintenance-free | Yes |
| Backup: without battery | Yes |
CPU processing times 3
| for bit operations, typ. | 0.08 µs; / instruction |
|---|---|
| for word operations, typ. | 1.7 µs; / instruction |
| for floating point arithmetic, typ. | 2.3 µs; / instruction |
CPU-blocks 2
| Number of elements (total) | DBs, FCs, FBs, counters and timers. The maximum number of addressable blocks ranges from 1 to 65535. There is no restriction, the entire working memory can be used |
|---|---|
| OB: Number, max. | Limited only by RAM for code |
Data areas and their retentivity 3
| Retentive data area (incl. timers, counters, flags), max. | 14 kbyte |
|---|---|
| Flag: Size, max. | 4 kbyte; Size of bit memory address area |
| Local data: per priority class, max. | 16 kbyte; Priority class 1 (program cycle): 16 KB, priority class 2 to 26: 6 KB |
Address area 2
| Process image: Inputs, adjustable | 1 kbyte |
|---|---|
| Process image: Outputs, adjustable | 1 kbyte |
Hardware configuration 4
| Number of modules per system, max. | 3 communication modules, 1 signal board |
|---|---|
| number of expansion boards (SB, CB, BB) | 1 |
| number of signal modules (SM) | 0 |
| number of communications modules (CM) | 3 |
Time of day 3
| Clock: Hardware clock (real-time) | Yes |
|---|---|
| Clock: Backup time | 480 h; Typical |
| Clock: Deviation per day, max. | ±60 s/month at 25 °C |
Digital inputs 11
| Number of digital inputs | 6; Integrated |
|---|---|
| of which inputs usable for technological functions | 6; HSC (High Speed Counting) |
| Sourcing/sinking input | Yes |
| Number of simultaneously controllable inputs all mounting positions: up to 40 °C, max. | 6 |
| Input voltage: Rated value (DC) | 24 V |
| Input voltage: for signal "0" | 5 V DC at 1 mA |
| Input voltage: for signal "1" | 15 V DC at 2.5 mA |
| Input current: for signal "1", typ. | 4 mA; nominal |
| Input delay (for rated value of input voltage) for standard inputs: parameterizable | 0.1 / 0.2 / 0.4 / 0.8 / 1.6 / 3.2 / 6.4 / 10.0 / 12.8 / 20.0 μs; 0.05 / 0.1 / 0.2 / 0.4 / 0.8 / 1.6 / 3.2 / 6.4 / 10.0 / 12.8 / 20.0 ms |
| Cable length: shielded, max. | 500 m; 50 m for technological functions |
| Cable length: unshielded, max. | 300 m; for technological functions: No |
Digital outputs 9
| Number of digital outputs | 4; Relays |
|---|---|
| Switching capacity of the outputs: with resistive load, max. | 2 A |
| Switching capacity of the outputs: on lamp load, max. | 30 W with DC, 200 W with AC |
| Output delay with resistive load: "0" to "1", max. | 10 ms; max. |
| Output delay with resistive load: "1" to "0", max. | 10 ms; max. |
| Relay outputs: Number of relay outputs | 4 |
| Relay outputs: Number of operating cycles, max. | mechanically 10 million, at rated load voltage 100 000 |
| Cable length: shielded, max. | 500 m |
| Cable length: unshielded, max. | 150 m |
Analog inputs 5
| Number of analog inputs | 2 |
|---|---|
| Input ranges: Voltage | Yes |
| Input ranges (rated values), voltages: 0 to +10 V | Yes |
| Input ranges (rated values), voltages: Input resistance (0 to 10 V) | ≥100k ohms |
| Cable length: shielded, max. | 100 m; twisted and shielded |
Analog outputs 1
| Number of analog outputs | 0 |
|---|
Analog value generation for the inputs 3
| Integration and conversion time/resolution per channel: Resolution with overrange (bit including sign), max. | 10 bit |
|---|---|
| Integration and conversion time/resolution per channel: Integration time, parameterizable | Yes |
| Integration and conversion time/resolution per channel: Conversion time (per channel) | 625 µs |
Encoder 1
| Connectable encoders: 2-wire sensor | Yes |
|---|
Interfaces 1
| Number of PROFINET interfaces | 1 |
|---|
1. Interface 35
| Interface type | PROFINET |
|---|---|
| Isolated | Yes |
| automatic detection of transmission rate | Yes |
| Autonegotiation | Yes |
| Autocrossing | Yes |
| Interface types: RJ 45 (Ethernet) | Yes |
| Interface types: Number of ports | 1 |
| Interface types: integrated switch | No |
| Protocols: PROFINET IO Controller | Yes |
| Protocols: PROFINET IO Device | Yes |
| Protocols: SIMATIC communication | Yes |
| Protocols: Open IE communication | Yes; Optionally also encrypted |
| Protocols: Web server | Yes |
| Protocols: Media redundancy | No |
| PROFINET IO Controller: Transmission rate, max. Services | 100 Mbit/s |
| PROFINET IO Controller: PG/OP communication | Yes; encryption with TLS V1.3 pre-selected |
| PROFINET IO Controller: Isochronous mode | No |
| PROFINET IO Controller: IRT | No |
| PROFINET IO Controller: PROFIenergy | No |
| PROFINET IO Controller: Prioritized startup | Yes |
| PROFINET IO Controller: Number of IO devices with prioritized startup, max. | 16 |
| PROFINET IO Controller: Number of connectable IO Devices, max. | 16 |
| PROFINET IO Controller: Number of connectable IO Devices for RT, max. | 16 |
| PROFINET IO Controller: of which in line, max. | 16 |
| PROFINET IO Controller: Number of IO Devices that can be simultaneously activated/deactivated, max. | 8 |
| PROFINET IO Controller: Updating time | The minimum value of the update time also depends on the communication component set for PROFINET IO, on the number of IO devices and the quantity of configured user data. |
| PROFINET IO Device Services: PG/OP communication | Yes; encryption with TLS V1.3 pre-selected |
| PROFINET IO Device Services: Isochronous mode | No |
| PROFINET IO Device Services: IRT | No |
| PROFINET IO Device Services: Dynamic Frame Packing (DFP) | No |
| PROFINET IO Device Services: PROFIenergy | Yes |
| PROFINET IO Device Services: Prioritized startup | Yes |
| PROFINET IO Device Services: Shared device | Yes |
| PROFINET IO Device Services: Number of IO Controllers with shared device, max. | 2 |
| PROFINET IO Device Services: Asset management record | Yes |
Protocols 36
| Supports protocol for PROFINET IO | Yes |
|---|---|
| PROFIsafe | No |
| PROFIBUS | Yes; CM 1243-5 (master) or CM 1242-5 (slave) required |
| OPC UA | Yes; OPC UA Server |
| AS-Interface | Yes; CM 1243-2 required |
| Protocols (Ethernet): TCP/IP | Yes |
| Protocols (Ethernet): DHCP | No |
| Protocols (Ethernet): SNMP | Yes |
| Protocols (Ethernet): DCP | Yes |
| Protocols (Ethernet): LLDP | Yes |
| Redundancy mode: PROFINET system redundancy (S2) | No |
| Redundancy mode: PROFINET system redundancy (R1) Media redundancy | No |
| Redundancy mode: MRP | No |
| Redundancy mode: MRP interconnection, supported | No |
| Redundancy mode: MRPD | No |
| SIMATIC communication: S7 routing | Yes |
| Open IE communication: TCP/IP | Yes |
| Open IE communication: Data length, max. | 8 kbyte |
| Open IE communication: several passive connections per port, supported | Yes |
| Open IE communication: ISO-on-TCP (RFC1006) | Yes |
| Open IE communication: UDP | Yes |
| Web server: supported | Yes |
| Web server: User-defined websites | Yes |
| OPC UA: Runtime license required | Yes; "Basic" license required |
| OPC UA: OPC UA Server | Yes; data access (read, write, subscribe), method call, runtime license required |
| OPC UA: Application authentication | Available security policies: None, Basic128Rsa15, Basic256Rsa15, Basic256Sha256 |
| OPC UA: User authentication | "anonymous" or by user name & password |
| OPC UA: Number of sessions, max. | 10 |
| OPC UA: Number of subscriptions per session, max. | 5 |
| OPC UA: Sampling interval, min. | 100 ms |
| OPC UA: Publishing interval, min. | 200 ms |
| OPC UA: Number of server methods, max. | 20 |
| OPC UA: Number of monitored items, recommended max. | 1 000 |
| OPC UA: Number of server interfaces, max. | 2 |
| OPC UA: Number of nodes for user-defined server interfaces, max. | 2 000 |
| Further protocols: MODBUS | Yes |
Communication functions 5
| S7 communication: supported | Yes |
|---|---|
| S7 communication: as server | Yes |
| S7 communication: as client | Yes |
| S7 communication: User data per job, max. | See online help (S7 communication, user data size) |
| Number of connections: overall | PG Connections: 4 reserved / 4 max; HMI Connections: 12 reserved / 18 max; S7 Connections: 8 reserved / 14 max; Open User Connections: 8 reserved / 14 max; Web Connections: 2 reserved / 30 max; OPC UA Connections: 0 reserved / 10 max; Total Connections: 34 reserved / 68 max |
Test commissioning functions 6
| Status/control: Status/control variable | Yes |
|---|---|
| Status/control: Variables | Inputs/outputs, memory bits, DBs, distributed I/Os, timers, counters |
| Forcing: Forcing | Yes |
| Diagnostic buffer: present | Yes |
| Traces: Number of configurable Traces | 2 |
| Traces: Memory size per trace, max. | 512 kbyte |
Interrupts/diagnostics/status information 3
| Diagnostics indication LED: RUN/STOP LED | Yes |
|---|---|
| Diagnostics indication LED: ERROR LED | Yes |
| Diagnostics indication LED: MAINT LED | Yes |
Integrated Functions 8
| Counter: Number of counters | 6 |
|---|---|
| Counter: Counting frequency, max. | 100 kHz |
| Frequency measurement | Yes |
| controlled positioning | Yes |
| Number of position-controlled positioning axes, max. | 8 |
| Number of positioning axes via pulse-direction interface | Up to 4 with SB 1222 |
| PID controller | Yes |
| Number of alarm inputs | 4 |
Potential separation 5
| Potential separation digital inputs: Potential separation digital inputs | 500 V AC for 1 minute |
|---|---|
| Potential separation digital inputs: between the channels, in groups of | 1 |
| Potential separation digital outputs: Potential separation digital outputs | Relays |
| Potential separation digital outputs: between the channels | No |
| Potential separation digital outputs: between the channels, in groups of | 1 |
EMC 5
| Interference immunity against discharge of static electricity: Interference immunity against discharge of static electricity acc. to IEC 61000-4-2 | Yes |
|---|---|
| Interference immunity to cable-borne interference: Interference immunity on supply lines acc. to IEC 61000-4-4 | Yes |
| Interference immunity against voltage surge: Interference immunity on supply lines acc. to IEC 61000-4-5 | Yes |
| Interference immunity against conducted variable disturbance induced by high-frequency fields: Interference immunity against high-frequency radiation acc. to IEC 61000-4-6 | Yes |
| Emission of radio interference acc. to EN 55 011: Limit class A, for use in industrial areas | Yes; Group 1 |
Degree and class of protection 1
| IP degree of protection | IP20 |
|---|
Standards, approvals, certificates 13
| Siemens Eco Profile (SEP) | Siemens EcoTech |
|---|---|
| CE mark | Yes |
| UL approval | Yes |
| cULus | Yes |
| FM approval | Yes |
| RCM (formerly C-TICK) | Yes |
| KC approval | Yes |
| Marine approval | Yes |
| Ecological footprint: environmental product declaration Global warming potential | Yes; type II acc. to ISO 14021 |
| Ecological footprint: global warming potential, (total) [CO2 eq] | 69.5 kg |
| Ecological footprint: global warming potential, (during production) [CO2 eq] | 12.6 kg |
| Ecological footprint: global warming potential, (during operation) [CO2 eq] | 57.9 kg |
| Ecological footprint: global warming potential, (after end of life cycle) [CO2 eq] | -1 kg |
Ambient conditions 17
| Free fall: Fall height, max. | 0.3 m; five times, in product package |
|---|---|
| Ambient temperature during operation: min. | -20 °C |
| Ambient temperature during operation: max. | 60 °C |
| Ambient temperature during operation: horizontal installation, min. | -20 °C |
| Ambient temperature during operation: vertical installation, min. | -20 °C |
| Ambient temperature during storage/transportation: min. | -40 °C |
| Ambient temperature during storage/transportation: max. | 70 °C |
| Air pressure acc. to IEC 60068-2-13: Operation, min. | 795 hPa |
| Air pressure acc. to IEC 60068-2-13: Operation, max. | 1 080 hPa |
| Air pressure acc. to IEC 60068-2-13: Storage/transport, min. | 660 hPa |
| Air pressure acc. to IEC 60068-2-13: Storage/transport, max. | 1 080 hPa |
| Altitude during operation relating to sea level: Installation altitude, min. | -1 000 m |
| Relative humidity: Operation, max. | 95 %; no condensation |
| Vibrations: Vibration resistance during operation acc. to IEC 60068-2-6 | 2 g (m/s2) wall mounting, 1 g (m/s2) DIN rail |
| Vibrations: Operation, tested according to IEC 60068-2-6 | Yes |
| Shock testing: tested according to IEC 60068-2-27 | Yes; IEC 68, Part 2-27 half-sine: strength of the shock 15 g (peak value), duration 11 ms |
| Pollutant concentrations: SO2 at RH < 60% without condensation | S02: < 0.5 ppm; H2S: < 0.1 ppm; RH < 60 % condensation-free |
Configuration 15
| Programming Programming language: LAD | Yes |
|---|---|
| Programming Programming language: FBD | Yes |
| Programming Programming language: SCL | Yes |
| Know-how protection: User program protection/password protection | Yes |
| Know-how protection: Copy protection | Yes |
| Know-how protection: Block protection | Yes |
| Access protection: protection of confidential configuration data | Yes |
| Access protection: Protection level: Write protection | Yes |
| Access protection: Protection level: Read/write protection | Yes |
| Access protection: Protection level: Complete protection | Yes |
| Access protection: User administration | Yes; device-wide |
| Access protection: Number of users | 42 |
| Access protection: Number of groups | 14 |
| Access protection: Number of roles | 20 |
| Cycle time monitoring: adjustable | Yes |
Dimensions 3
| Width | 90 mm |
|---|---|
| Height | 100 mm |
| Depth | 75 mm |
Weights 1
| Weight, approx. | 380 g |
|---|
Logistics 6
| Net weight | 0.306 kg |
|---|---|
| Country of origin | CN |
| Shipping weight | 0.806 kg |
| Ships from | Türkiye |
| Dispatch | 13 Nov |
| Stock | Low stock |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6ES7211-1HE40-0XB0
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE mark
- UL approval
- cULus
- FM approval
- RCM (formerly C-TICK)
- KC approval
- Marine approval
Quick answers
Questions about the CPU 1211C DC/DC/relay
What is the rated current of CPU 1211C DC/DC/relay?
The rated current of CPU 1211C DC/DC/relay is 0.3 A.
Which supply voltage is CPU 1211C DC/DC/relay rated for?
The rated operational voltage of CPU 1211C DC/DC/relay is 24 V AC.
What is the HS code of CPU 1211C DC/DC/relay for customs?
The tariff (HS) code on file for CPU 1211C DC/DC/relay is 85371091.
What is the EAN of CPU 1211C DC/DC/relay?
The EAN (GTIN) of CPU 1211C DC/DC/relay is 4047623402688.
Where does CPU 1211C DC/DC/relay ship from, and how fast?
CPU 1211C DC/DC/relay ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
Guides
Guides for PLC & controllers
Main Types of Programmable Logic Controllers: A Complete PLC Guide
Compare the 5 main PLC types, IEC 61131-3 languages, scan-time sizing, and brand options to choose the right controller for your plant. Shop at...
Programmable Logic Controller Guide: Selection, Application, and Maintenance for Engineers
PLC selection guide for engineers covering IEC 61131 compliance, Siemens, Rockwell, Schneider, ABB comparison, scan time sizing, and wiring. Shop at Stoklink.
Reviews
Customer reviews
Series
Siemens SIMATIC S7-1200
- Brand
- Siemens
- Series
- SIMATIC S7-1200
