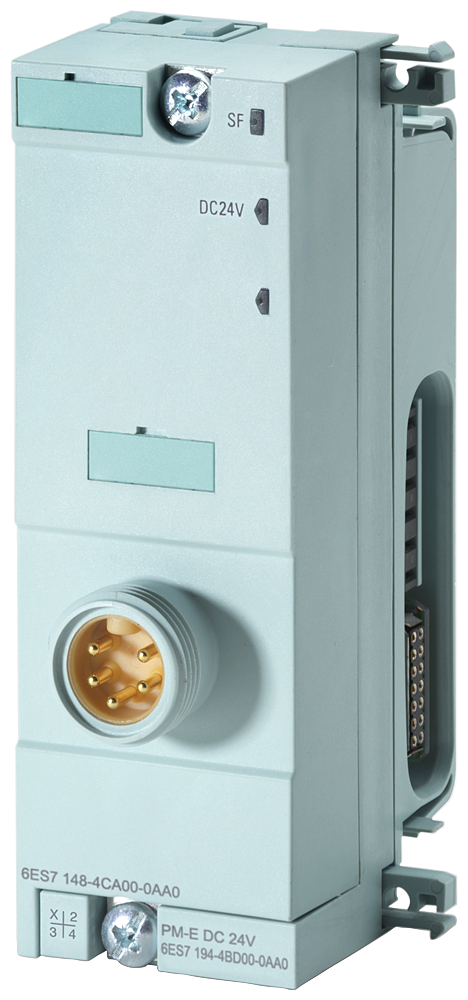

The Siemens 6ES7194-4BD00-0AA0 is a 7/8-inch connection module that feeds the load voltage 2L+ into a SIMATIC ET 200pro station for the PM-E DC24V power module, using a single 7/8-inch round connector. It is rated up to 8 A on the 2L+ rail and measures 45 x 130 x 48 mm.
Choose this 7/8-inch variant over the ECOFAST or Push-Pull versions when the rest of the station's power wiring already uses round 7/8-inch connectors, keeping the connector style consistent across the PM-E DC24V feed point. Its 8 A rating is lower than the ECOFAST Cu module's 10 A, so size the downstream load accordingly.
| from load voltage 2L+ (without load), max. | 8 A |
|---|
| Function description | Feeding of load voltage 2L+ within a station; 1x 7/8" |
|---|---|
| belongs to product | ET 200pro; PM-E DC24V |
| Width | 45 mm |
|---|---|
| Height | 130 mm |
| Depth | 48 mm |
| Part number | 6ES7194-4BD00-0AA0 |
|---|---|
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4025515072904 |
| ETIM class | EC001598 |
| eCl@ss | 27242603 |
| Weight, approx. | 120 g |
|---|
| Net weight | 0.154 kg |
|---|---|
| Country of origin | DE |
| Shipping weight | 0.654 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 01 Nov 2026
No documents are on file for this part yet.
Ask us for the datasheetThe rated current of 6ES7194-4BD00-0AA0 is 8 A.
The tariff (HS) code on file for 6ES7194-4BD00-0AA0 is 85389091.
The EAN (GTIN) of 6ES7194-4BD00-0AA0 is 4025515072904.
6ES7194-4BD00-0AA0 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
