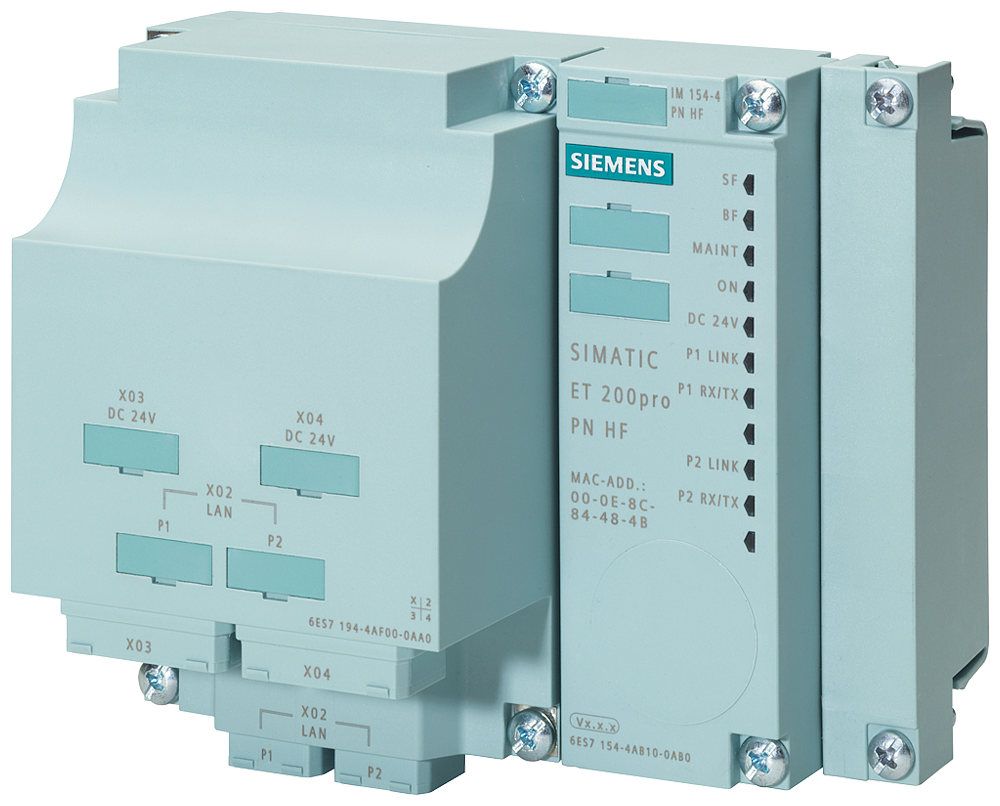

The Siemens 6ES7194-4AF00-0AA0 is a PROFINET connection module for the SIMATIC ET 200pro IM154-4 PN HF interface module, providing two RJ45 ports and two push-pull power connectors. It passes up to 16 A of infeed current on 1L+ and 2L+ with derating, and carries no current consumption of its own.
This PROFINET version replaces the PROFIBUS ECOFAST and M12 modules when the ET 200pro station runs on a PN network via IM154-4 PN HF; the RJ45 pair carries the required port-to-port PROFINET cabling. At 16 A max, it carries the highest infeed rating among the ET 200pro connection modules in this family, reflecting the higher power draw typical of PN head modules.
| Part number | 6ES7194-4AF00-0AA0 |
|---|---|
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4025515075509 |
| Rated current | 16 A |
|---|---|
| Communication | PROFINET |
| Shipping weight | 0.868 kg |
|---|
| HS code | 85389091 |
|---|---|
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
| Series | SIMATIC ET 200pro |
|---|---|
| Function | IM PN, 2x RJ45, 2x Push-Pull interface module |
| Compatible With | IM154-4 PN HF |
| Width | 90 mm |
| Height | 130 mm |
| Depth | 51 mm |
| Net Weight | 0.368 kg |
| Country of Origin | DE |
From the manufacturer description; the values above take precedence.
No documents are on file for this part yet.
Ask us for the datasheetThe rated current of 6ES7194-4AF00-0AA0 is 16 A.
The tariff (HS) code on file for 6ES7194-4AF00-0AA0 is 85389091.
The EAN (GTIN) of 6ES7194-4AF00-0AA0 is 4025515075509.
6ES7194-4AF00-0AA0 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
