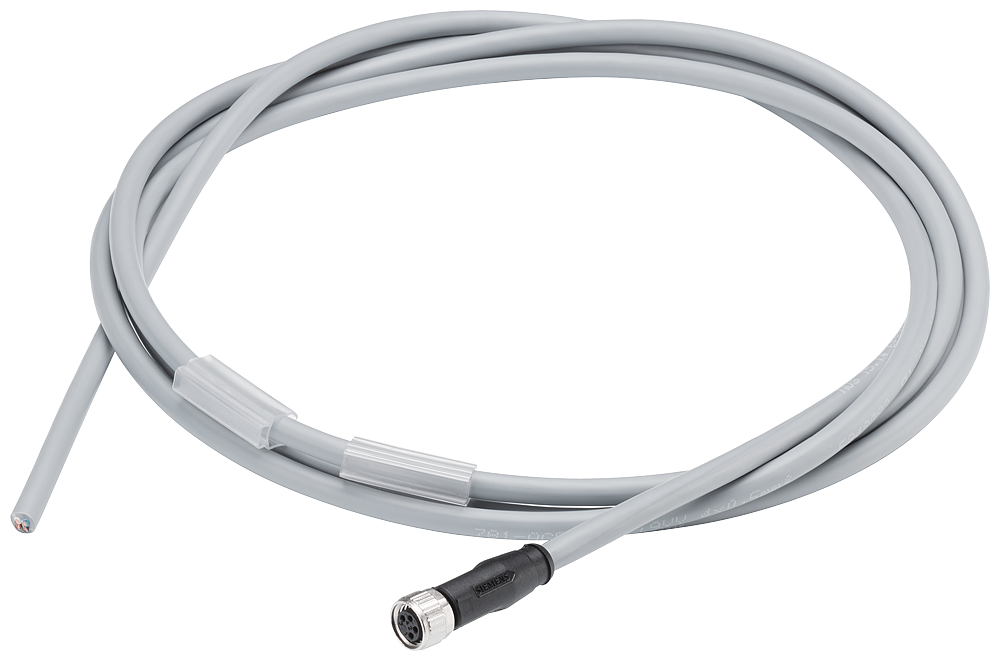

The Siemens 6ES7194-2LN10-1AC0 is a preassembled M8 power cable for the SIMATIC ET 200AL remote I/O system, supplying 24 V DC to the station. It carries four 0.50 mm² cores terminated with a single M8 female connector at one end, a straight 180-degree outlet, and is rated IP65/67. At 10 m length, the open end is wired directly into a terminal block or junction box.
Choose this single-sided version when only one end needs a factory M8 connector; the open end is stripped for direct termination at a terminal block or junction box, unlike the double-ended versions that plug into two M8 sockets. It shares the same 4-core, IP65/67 cable construction as the fully assembled variants, so the electrical rating and bend limits are identical.
| Product type designation | Power cable |
|---|---|
| Product description | Flexible cable (4-core), preassembled at one end with 1x M8 female connector |
| Suitability for use | For connection to ET 200AL for 24 V DC power supply |
| IP degree of protection | IP65/67 |
|---|
| Ambient temperature during assembly, min. | -30 °C |
|---|---|
| Ambient temperature during assembly, max. | 80 °C |
| Ambient temperature during storage/transportation: min. | -40 °C |
| Ambient temperature during storage/transportation: max. | 80 °C |
| Part number | 6ES7194-2LN10-1AC0 |
|---|---|
| Type designation | Power cable |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4047623403555 |
| ETIM class | EC000237 |
| eCl@ss | 27242220 |
| Cable designation | 4 Li9Y 0.50 mm2 Y |
|---|---|
| Cable length | 10 m |
| Number of electrical cores | 4 |
| Outer diameter of inner conductor | 0.8 mm |
| Outer diameter of core insulation | 1.46 mm |
| Outer diameter of cable sheath | 5.2 mm |
| Number of bending cycles | 2 500 000; cable carrier compliant for 2.5 million bending cycles with a bending radius of 52 mm, a speed of 3 m/s and an acceleration of 10 m/s2 |
| Permissible bending radius, single bend, min. | 26 mm |
| Permissible bending radius, multiple bends, min. | 52 mm |
| Bending radius for continuous bending | 52 mm |
| Color of cable sheath | gray |
| Color of core insulation of energy core | white / brown / blue / black |
| Weight per length | 44 kg/km |
| Outgoing feeder type | 180° cable outlet |
|---|---|
| Material of cable sheath | PVC |
| Material of core insulation | PP |
| Material property: Silicone-free | Yes |
| eClass | 12 27-24-22-20 |
|---|---|
| ETIM | 10 EC000237 |
| IDEA | 4 3553 |
| UNSPSC | 15 32-15-17-03 |
| Net weight | 0.444 kg |
|---|---|
| Country of origin | DE |
| Shipping weight | 0.944 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 01 Nov 2026
No documents are on file for this part yet.
Ask us for the datasheetThe tariff (HS) code on file for Power cable is 85444290.
The EAN (GTIN) of Power cable is 4047623403555.
Power cable ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
