Siemens 6ES7194-2LN10-0AA0 SIMATIC ET 200AL Bus Cable M8 4-Pole Both Ends 10m Remote I/O Accessory

% $-83.73

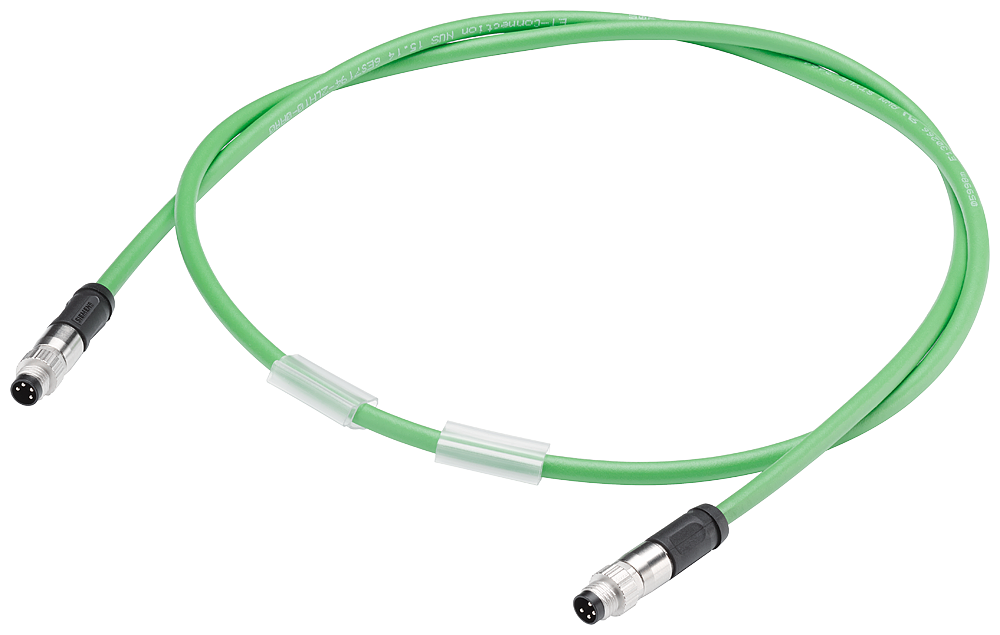

Siemens 6ES7194-2LN10-0AA0 SIMATIC ET 200AL Bus Cable M8 both ends - 10 m
Siemens 6ES7194-2LN10-0AA0 SIMATIC ET 200AL Bus Cable M8 both ends - 10 m

Siemens 6ES7194-2LN10-0AA0 SIMATIC ET 200AL Bus Cable M8 4-Pole Both Ends 10m Remote I/O Accessory

Brand: Siemens
Reference No: 6ES7194-2LN10-0AA0
Catalog No: 6ES7194-2LN10-0AA0
Series: SIMATIC ET 200
Tariff Code (HS): 85444290
Stock: 0
Delivery time: 10-15 business day(s)
Shipping Origin: Türkiye EXW
$83.73

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Siemens 6ES7194-2LN10-0AA0 is a SIMATIC ET 200AL bus cable with 2x M8 connectors preassembled at both ends, used for linking ET-CONNECTION nodes such as SIMATIC ET 200AL. The 4-pole, 10 m cable is rated IP65/67 and built with 2Y(ST)CY 1x4x0.5/1.0-100-GN shielded conductors under a green PVC sheath, with a minimum bend radius of 20 mm for a single bend.

Technical Specifications

SKU (MLFB) 6ES7194-2LN10-0AA0
EAN 4047623403135
Brand Siemens
Series SIMATIC ET 200AL
Product Type Bus Cable
Product Description Flexible cable (4-core), preassembled at both ends with 2x M8 plugs, 4-pin, shielded
IP Degree of Protection IP65/67
Cable Length 10 m
Number of Electrical Cores 4
Cable Designation 2Y(ST)CY 1x4x0.5/1.0-100-GN
Shield Design Overlapped aluminum-clad foil, sheathed in a braid of tin-plated copper wires
Outer Diameter, Inner Conductor 0.5 mm
Outer Diameter, Core Insulation 1 mm
Outer Diameter, Cable Sheath 5 mm
Color of Cable Sheath green
Material of Cable Sheath PVC
Material of Core Insulation PE
Outgoing Feeder Type 180° cable outlet
Permissible Bending Radius, Single Bend, Min. 20 mm
Permissible Bending Radius, Multiple Bends, Min. 40 mm
Bending Radius for Continuous Bending 100 mm
Number of Bending Cycles 1 000 000
Weight per Length 34 kg/km
Net Weight 0.4 kg
Ambient Temperature During Assembly -30 °C ... 80 °C
Ambient Temperature During Storage/Transport -40 °C ... 80 °C
Silicone-Free Yes

Selection Notes

Pick the 6ES7194-2LN10-0AA0 when linking two ET-CONNECTION nodes directly in a daisy chain over a 10 m run, since it carries straight connectors on both ends rather than one bare end. The 180° cable outlet suits installations where a straight run to the mating node sets the routing constraint.

Technical Details

Short Description
Siemens 6ES7194-2LN10-0AA0 SIMATIC ET 200AL M8 bus cable, 4-pole shielded, 10 m, IP65/67, both ends.
Protection Type
IP65/67
Catalog No
6ES7194-2LN10-0AA0
Delivery Date (Days)
10-15 days
Model Number
6ES7194-2LN10-0AA0
Tariff Code
85444290
