Part number
6ES7194-2LH50-0AC0
Model no
Bus cable
$50.72 On request Dispatch — · From TürkiyeGet a Quote
SIMATIC ET 200

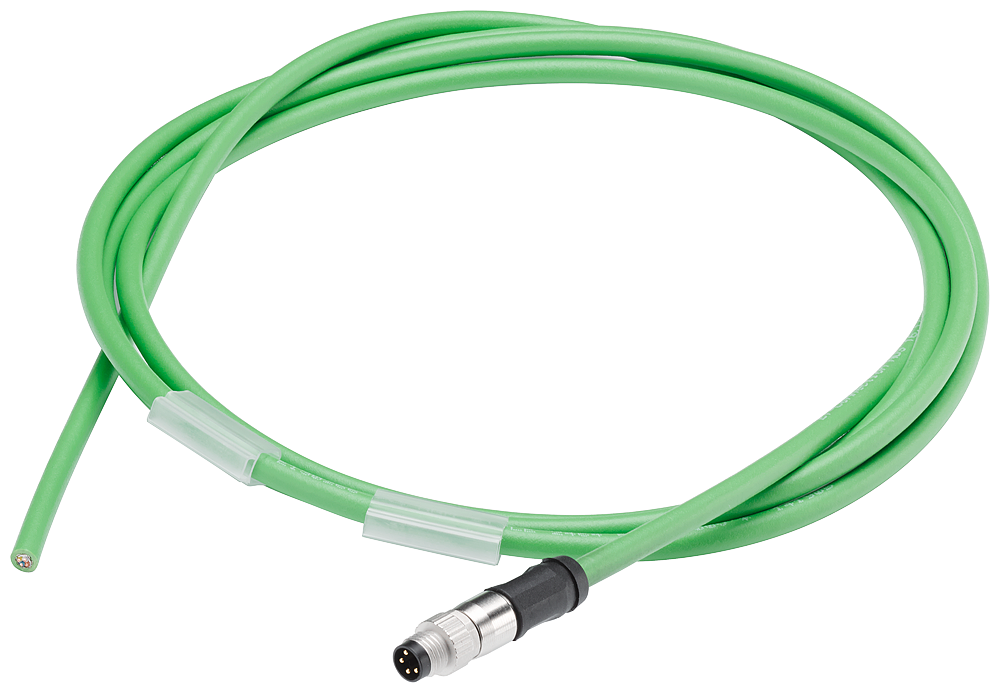

Siemens 6ES7194-2LH50-0AC0 SIMATIC ET 200AL Bus Cable M8 4-Pole Single-Sided 5.0m Remote I/O Accessory

Siemens 6ES7194-2LH50-0AC0 SIMATIC ET 200AL M8 bus cable, 4-pole shielded, 5.0 m, IP65/67, single-sided.

Product type designation
Bus cable
Product description
Flexible cable (4-core), preassembled at one end with 1x M8 plug, 4-pin, shielded
Suitability for use
for connecting ET-CONNECTION nodes (e.g. SIMATIC ET 200AL) in degree of protection IP65 / 67
EAN
4047623403203
Description

About the Bus cable

The Siemens 6ES7194-2LH50-0AC0 is a SIMATIC ET 200AL bus cable with a single M8 connector preassembled at one end, used for linking ET-CONNECTION nodes such as SIMATIC ET 200AL. The 4-pole, 5.0 m cable is rated IP65/67 and built with 2Y(ST)CY 1x4x0.5/1.0-100-GN shielded conductors under a green PVC sheath, with a minimum bend radius of 20 mm for a single bend.

Selection Notes

Pick the single-sided 6ES7194-2LH50-0AC0 when one end connects to an ET-CONNECTION node such as ET 200AL and the other end runs to a switch or the previous segment's open end. The shielded design and 40 mm multiple-bend radius keep signal integrity over the 5.0 m run in IP65/67 installations.

Specification

Full specification

48 values · Last verified 01 Nov 2026

General information 3

Product type designation Bus cable
Product description Flexible cable (4-core), preassembled at one end with 1x M8 plug, 4-pin, shielded
Suitability for use for connecting ET-CONNECTION nodes (e.g. SIMATIC ET 200AL) in degree of protection IP65 / 67

Degree and class of protection 1

IP degree of protection IP65/67

Ambient conditions 4

Ambient temperature during assembly, min. -30 °C
Ambient temperature during assembly, max. 80 °C
Ambient temperature during storage/transportation: min. -40 °C
Ambient temperature during storage/transportation: max. 80 °C
Show all 48 specifications ↓ Show less ↑40 more values in Identification, Cables, Mechanics/material, Version Classification, Miscellaneous Manufacturer Declara- China RoHS Manufacturer Declara-, Logistics.

Identification 10

Part number 6ES7194-2LH50-0AC0
Type designation Bus cable
Brand Siemens
Condition New, factory sealed
Source Siemens and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 4047623403203
ETIM class EC000237
eCl@ss 27242220

Cables 14

Cable designation 2Y(ST)CY 1x4x0.5/1.0-100-GN
Design of shield Overlapped aluminum-clad foil, sheathed in a braid of tin-plated copper wires
Cable length 5 m
Number of electrical cores 4
Outer diameter of inner conductor 0.5 mm
Outer diameter of core insulation 1 mm
Outer diameter of cable sheath 5 mm
Number of bending cycles 1 000 000; cable carrier compliant for 1 million bending cycles with a bending radius of 100 mm, a speed of 4 m/s and an acceleration of 4 m/s2
Permissible bending radius, single bend, min. 20 mm
Permissible bending radius, multiple bends, min. 40 mm
Bending radius for continuous bending 100 mm
Color of cable sheath green
Color of core insulation of data cores white / yellow / blue / orange
Weight per length 34 kg/km

Mechanics/material 5

Outgoing feeder type 180° cable outlet
Material of cable sheath PVC
Material of core insulation PE
Material property: Halogen-free No
Material property: Silicone-free Yes

Version Classification 4

eClass 16 27-24-22-20
ETIM 10 EC000237
IDEA 4 3553
UNSPSC 15 32-15-17-03

Miscellaneous Manufacturer Declara- China RoHS Manufacturer Declara- 1

tion tion

Logistics 6

Net weight 0.208 kg
Country of origin CZ
Shipping weight 0.708 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 01 Nov 2026

Documents

Documents for 6ES7194-2LH50-0AC0

No documents are on file for this part yet.

Ask us for the datasheet
Quick answers

Questions about the Bus cable

What is the HS code of Bus cable for customs?

The tariff (HS) code on file for Bus cable is 85444290.

What is the EAN of Bus cable?

The EAN (GTIN) of Bus cable is 4047623403203.

Where does Bus cable ship from, and how fast?

Bus cable ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
