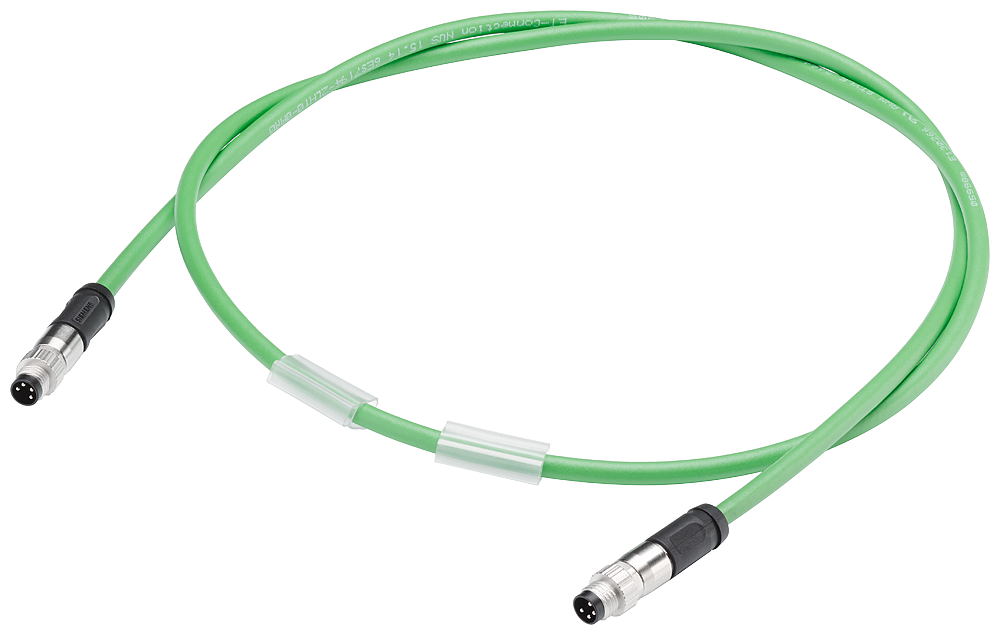

The Siemens 6ES7194-2LH50-0AA0 is a SIMATIC ET 200AL bus cable with 2x M8 connectors preassembled at both ends, used for linking ET-CONNECTION nodes such as SIMATIC ET 200AL. The 4-pole, 5.0 m cable is rated IP65/67 and built with 2Y(ST)CY 1x4x0.5/1.0-100-GN shielded conductors under a green PVC sheath, with a minimum bend radius of 20 mm for a single bend.
Pick the 6ES7194-2LH50-0AA0 when linking two ET-CONNECTION nodes directly in a daisy chain over a 5.0 m run, since it carries straight connectors on both ends rather than one bare end. The 180° cable outlet suits installations where a straight run to the mating node sets the routing constraint.
| Product type designation | Bus cable |
|---|---|
| Product description | Flexible cable (4-core), preassembled at both ends with 2x M8 plugs, 4-pin, shielded |
| Suitability for use | for connecting ET-CONNECTION nodes (e.g. SIMATIC ET 200AL) in degree of protection IP65 / 67 |
| IP degree of protection | IP65/67 |
|---|
| Ambient temperature during assembly, min. | -30 °C |
|---|---|
| Ambient temperature during assembly, max. | 80 °C |
| Ambient temperature during storage/transportation: min. | -40 °C |
| Ambient temperature during storage/transportation: max. | 80 °C |
| Part number | 6ES7194-2LH50-0AA0 |
|---|---|
| Type designation | Bus cable |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4047623403128 |
| ETIM class | EC000237 |
| eCl@ss | 27242220 |
| Cable designation | 2Y(ST)CY 1x4x0.5/1.0-100-GN |
|---|---|
| Design of shield | Overlapped aluminum-clad foil, sheathed in a braid of tin-plated copper wires |
| Cable length | 5 m |
| Number of electrical cores | 4 |
| Outer diameter of inner conductor | 0.5 mm |
| Outer diameter of core insulation | 1 mm |
| Outer diameter of cable sheath | 5 mm |
| Number of bending cycles | 1 000 000; cable carrier compliant for 1 million bending cycles with a bending radius of 100 mm, a speed of 4 m/s and an acceleration of 4 m/s2 |
| Permissible bending radius, single bend, min. | 20 mm |
| Permissible bending radius, multiple bends, min. | 40 mm |
| Bending radius for continuous bending | 100 mm |
| Color of cable sheath | green |
| Color of core insulation of data cores | white / yellow / blue / orange |
| Weight per length | 34 kg/km |
| Outgoing feeder type | 180° cable outlet |
|---|---|
| Material of cable sheath | PVC |
| Material of core insulation | PE |
| Material property: Halogen-free | No |
| Material property: Silicone-free | Yes |
| eClass | 16 27-24-22-20 |
|---|---|
| ETIM | 10 EC000237 |
| IDEA | 4 3553 |
| UNSPSC | 15 32-15-17-03 |
| Net weight | 0.213 kg |
|---|---|
| Country of origin | Slovakia |
| Shipping weight | 0.713 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 01 Nov 2026
No documents are on file for this part yet.
Ask us for the datasheetThe tariff (HS) code on file for Bus cable is 85444290.
The EAN (GTIN) of Bus cable is 4047623403128.
Bus cable ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
