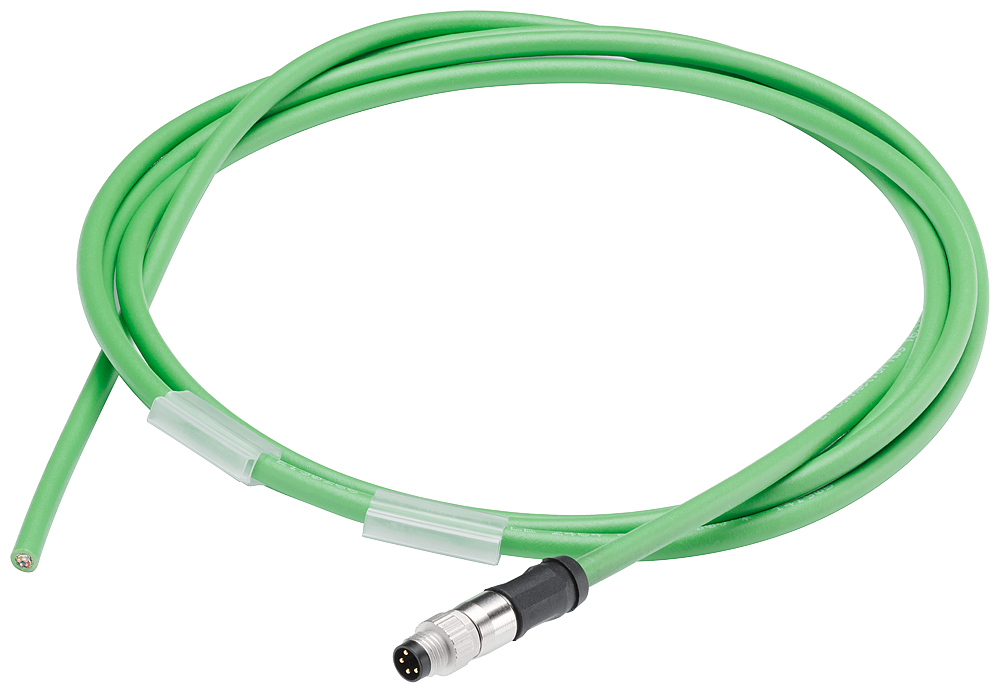

The Siemens 6ES7194-2LH20-0AC0 is a shielded ET-Connection bus cable for SIMATIC ET 200AL, preassembled with a single 4-pin M8 plug at one end and 2 m of open cable at the other. It carries the two shielded data cores at the IP65/67 protection rating the ET 200AL line uses, letting the open end be wired directly into a junction point or another connector. The 100 mm continuous bending radius suits fixed routing.
This one-end-assembled version terminates a single 4-pin M8 plug at one node and leaves 2 m of open, shielded cable at the other end for wiring directly into a junction box or terminal strip instead of a second preassembled M8 port. It suits installations where the second connection point is not itself an ET-CONNECTION M8 socket — for node-to-node runs where both ends terminate in the standard ET-CONNECTION port, the two-ends-assembled straight or angled variants in this line are the direct fit. The shielded twisted construction (2Y(ST)CY) still runs the full 2 m, so the open end should be terminated carefully to preserve shield continuity.
| Product type designation | Bus cable |
|---|---|
| Product description | Flexible cable (4-core), preassembled at one end with 1x M8 plug, 4-pin, shielded |
| Suitability for use | for connecting ET-CONNECTION nodes (e.g. SIMATIC ET 200AL) in degree of protection IP65 / 67 |
| IP degree of protection | IP65/67 |
|---|
| Ambient temperature during assembly, min. | -30 °C |
|---|---|
| Ambient temperature during assembly, max. | 80 °C |
| Ambient temperature during storage/transportation: min. | -40 °C |
| Ambient temperature during storage/transportation: max. | 80 °C |
| Part number | 6ES7194-2LH20-0AC0 |
|---|---|
| Type designation | Bus cable |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4047623403197 |
| ETIM class | EC000237 |
| eCl@ss | 27242220 |
| Cable designation | 2Y(ST)CY 1x4x0.5/1.0-100-GN |
|---|---|
| Design of shield | Overlapped aluminum-clad foil, sheathed in a braid of tin-plated copper wires |
| Cable length | 2 m |
| Number of electrical cores | 4 |
| Outer diameter of inner conductor | 0.5 mm |
| Outer diameter of core insulation | 1 mm |
| Outer diameter of cable sheath | 5 mm |
| Number of bending cycles | 1 000 000; cable carrier compliant for 1 million bending cycles with a bending radius of 100 mm, a speed of 4 m/s and an acceleration of 4 m/s2 |
| Permissible bending radius, single bend, min. | 20 mm |
| Permissible bending radius, multiple bends, min. | 40 mm |
| Bending radius for continuous bending | 100 mm |
| Color of cable sheath | green |
| Color of core insulation of data cores | white / yellow / blue / orange |
| Weight per length | 34 kg/km |
| Outgoing feeder type | 180° cable outlet |
|---|---|
| Material of cable sheath | PVC |
| Material of core insulation | PE |
| Material property: Halogen-free | No |
| Material property: Silicone-free | Yes |
| eClass | 16 27-24-22-20 |
|---|---|
| ETIM | 10 EC000237 |
| IDEA | 4 3553 |
| UNSPSC | 15 32-15-17-03 |
| tion | tion |
|---|
| Net weight | 0.093 kg |
|---|---|
| Country of origin | Slovakia |
| Shipping weight | 0.593 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 01 Nov 2026
No documents are on file for this part yet.
Ask us for the datasheetThe tariff (HS) code on file for Bus cable is 85444290.
The EAN (GTIN) of Bus cable is 4047623403197.
Bus cable ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
