Siemens 6ES7194-2LH02-0AD0 ET-CONNECTION M8 Bus Extension Cable 4-Pole 0.2m Remote I/O Accessory

% $-34.11

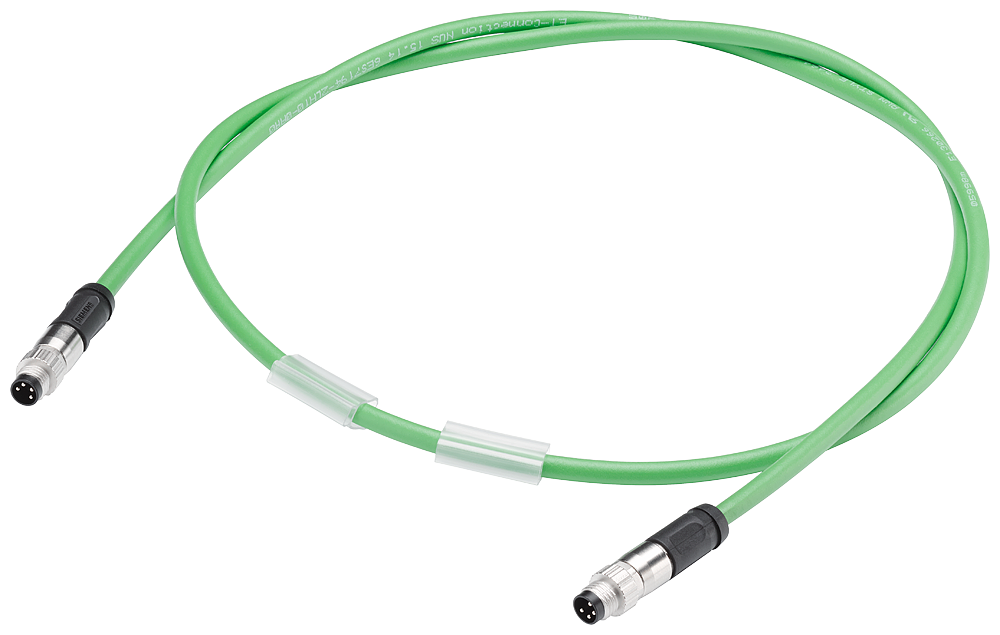

Siemens 6ES7194-2LH02-0AD0 M8 Bus Extension Cable Remote I/O Accessory - 0.2m shielded, IP65/67
Siemens 6ES7194-2LH02-0AD0 M8 Bus Extension Cable Remote I/O Accessory - 0.2m shielded, IP65/67

Siemens 6ES7194-2LH02-0AD0 ET-CONNECTION M8 Bus Extension Cable 4-Pole 0.2m Remote I/O Accessory

Brand: Siemens
Reference No: 6ES7194-2LH02-0AD0
Catalog No: 6ES7194-2LH02-0AD0
Series: SIMATIC ET 200
Tariff Code (HS): 85444290
Communication: ET-CONNECTION
Stock: 0
Delivery time: 10-15 business day(s)
Shipping Origin: Türkiye EXW
$34.11

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Siemens 6ES7194-2LH02-0AD0 is a 0.2 m extension cable preassembled with two M8 sockets for joining two ET-CONNECTION bus cables in a SIMATIC ET 200AL installation. The shielded 4-core cable is rated IP65/67, tolerates -30 to 80 degC during assembly and -40 to 80 degC in storage, and uses a 180-degree cable outlet at both ends.

Technical Specifications

SKU 6ES7194-2LH02-0AD0
Brand Siemens
Series SIMATIC ET-CONNECTION
EAN 4047623407904
Product type designation Connecting cable for bus cable
Product description Flexible cable (4-core), preassembled at both ends with 2x M8 sockets, 4-pin, shielded
Suitability for use For connecting two ET CONNECTION bus cables
IP degree of protection IP65/67
Ambient temperature during assembly -30 to 80 degC
Ambient temperature during storage/transportation -40 to 80 degC
Cable designation 2Y(ST)CY 1x4x0.5/1.0-100-GN
Design of shield Overlapped aluminum-clad foil, sheathed in a braid of tin-plated copper wires
Cable length 0.2 m
Number of electrical cores 4
Outer diameter of inner conductor 0.5 mm
Outer diameter of core insulation 1 mm
Outer diameter of cable sheath 5 mm
Permissible bending radius, single bend, min. 20 mm
Permissible bending radius, multiple bends, min. 40 mm
Bending radius for continuous bending 100 mm
Color of cable sheath Green
Color of core insulation White / yellow / blue / orange
Weight per length 34 kg/km
Weight, approx. (assembly) 28 g
Outgoing feeder type 180 degree cable outlet
Material of cable sheath PVC
Material of core insulation PE
Silicone-free Yes

Selection Notes

The M8-socket-to-M8-socket build makes this a coupler for extending an existing ET-CONNECTION bus run, not a node drop cable; use it only to join two bus cables together, not to connect a device port directly. Choose the 0.2 m length when the extra run between two existing cable ends is short.

Technical Details

Short Description
Siemens M8 ET-CONNECTION extension cable, 4-pole shielded, 0.2 m, joins two bus cables, IP65/67.
Protection Type
IP65/67
Catalog No
6ES7194-2LH02-0AD0
Delivery Date (Days)
10-15 days
Model Number
6ES7194-2LH02-0AD0
Tariff Code
85444290
