Once production ends, supply depends on remaining stock.
No replacement announced yet. Tell us the application and we will propose an alternative.

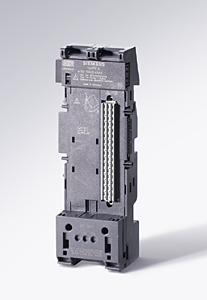

The Siemens 6ES7193-7DB10-0AA0 is a SIMATIC ET 200iSP terminal module, type TM-PS-B, built to hold a second, redundant 24 V DC power supply module (order number 6ES7138-7EA01-0AA0) alongside a TM-PS-A. It accepts 19.2-30 V DC input and delivers up to 5 A DC output, with ATEX/IECEx Zone 1 gas and Zone 21 dust ratings.
TM-PS-B only mounts in addition to a TM-PS-A, it does not replace it; order it only when the station needs a redundant power feed rather than a single power supply module. Use it with the same 6ES7138-7EA01-0AA0 power supply module as TM-PS-A so both feeds share identical input/output ratings, keeping the station powered if one supply module fails.
| Product type designation | TM-PS-B |
|---|
| Rack mounting | No |
|---|---|
| Front mounting | Yes |
| Rail mounting | Yes |
| Wall mounting/direct mounting | No |
| Type of supply voltage | DC |
|---|---|
| permissible range, lower limit (DC) | 19.2 V |
| permissible range, upper limit (DC) | 30 V |
| Part number | 6ES7193-7DB10-0AA0 |
|---|---|
| Type designation | TM-PS-B |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Phase-out announced by the manufacturer |
| EAN | 4019169146678 |
| At DC, max. | 6 A |
|---|
| Type of output voltage | DC |
|---|---|
| permissible range, lower limit (DC) | 20.4 V |
| permissible range, upper limit (DC) | 28.8 V |
| At DC, max. | 5 A |
|---|
| Slots: Number of slots | 1 |
|---|---|
| Slots: Plug-in modules, analog I/O | No |
| Slots: Plug-in modules, digital I/O | No |
| Slots: Plug-in modules, function modules and technology modules | No |
| Slots: Plug-in modules, communication modules | No |
| Slots: Plug-in modules, CPUs | No |
| Slots: Plug-in modules, others | Yes |
| Suitable for safety functions | Yes |
|---|---|
| reference designation according to IEC 81346-2 (2009) | XX |
| Use in hazardous areas: ATEX marking | see ET 200iSP system |
| Use in hazardous areas: Explosion protection category for gas | ATEX gas explosion protection, Zone 1 |
| Use in hazardous areas: Explosion protection category for dust | ATEX dust explosion protection, Zone 21; always install in corresponding enclosure |
| Use in hazardous areas: associated equipment (Ex ia) | No |
| Use in hazardous areas: associated equipment (Ex ib) | No |
| eClass | 16 27-24-26-03 |
|---|---|
| ETIM | 10 EC001598 |
| IDEA | 4 3560 |
| UNSPSC | 15 32-15-17-04 |
| Maritime application NK / Nippon Kaiji Ky- | okai |
|---|
| Net weight | 0.293 kg |
|---|---|
| Country of origin | DE |
| Shipping weight | 0.793 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 01 Nov 2026
No documents are on file for this part yet.
Ask us for the datasheetThe rated current of TM-PS-B is 5 A.
The tariff (HS) code on file for TM-PS-B is 85389099.
The EAN (GTIN) of TM-PS-B is 4019169146678.
TM-PS-B ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
