Part number
6ES7193-7DA20-0AA0
Model no
TM-PS-A UC
$183.20 Critical stock Dispatch Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days. · From Türkiye
SIMATIC ET 200SP

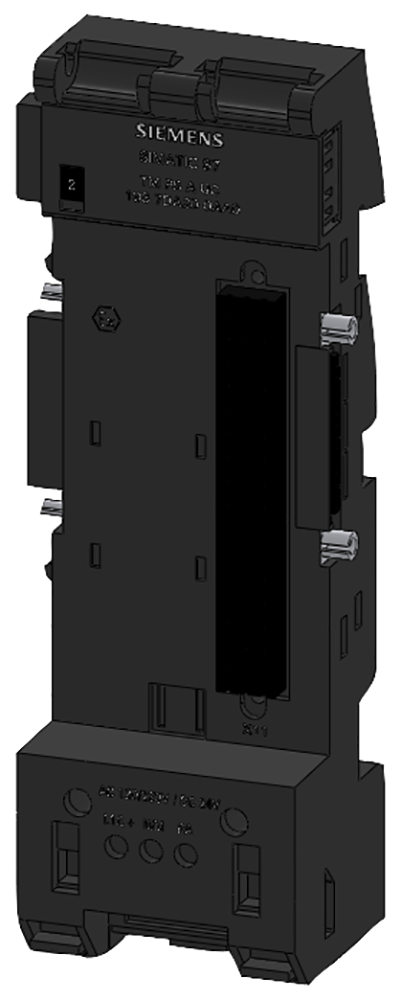

Siemens 6ES7193-7DA20-0AA0 SIMATIC ET200iSP TM-PS-A UC Terminal Module Ex Remote I/O Accessory

Siemens ET200iSP terminal module TM-PS-A UC, 120/230V AC power supply holder, Ex eb IIC T4 Gb, ATEX Zone 1/21.

Rated current
5 A
Rated operational voltage
85–264 V AC
EAN
4019169214520
Description

About the TM-PS-A UC

The Siemens 6ES7193-7DA20-0AA0 is the TM-PS-A UC terminal module for SIMATIC ET200iSP, holding a 120/230 V AC power supply module rated up to 6 A input and delivering 24 V DC output at up to 5 A. Certified Ex eb [ia] IIC T4 Gb for ATEX Zone 1 gas and Zone 21 dust areas, it also carries cULus, FM, IECEx, and CCC Ex hazardous-location approvals.

Certifications & Standards

  • CE
  • UKCA
  • cULus
  • FM
  • INMETRO
  • ATEX
  • IECEx
  • CCC Ex
  • GL
  • ABS
  • BV
  • DNV

Selection Notes

The TM-PS-A UC terminal module carries the ET200iSP power supply's Ex eb [ia Ga/ib] IIC T4 Gb rating for Zone 1 gas and Ex eb [ia IIIC Da] IIC T4 Gb for Zone 21 dust areas, so it belongs on the intrinsically-safe rail together with Ex-rated field modules rather than a standard, non-hazardous ET200iSP station. Its 85 to 264 V AC input accepts both 120 V and 230 V mains without reconfiguration, and the 5 A DC output at 24 V sizes the downstream I/O load the station can carry from this slot.

Applications

Powering SIMATIC ET200iSP fail-safe and standard I/O modules inside Zone 1/21 hazardous-area installations - process automation in oil and gas, chemical, and pharmaceutical plants with marine classification requirements.

Specification

Full specification

62 values · Last verified 01 Nov 2026

General information 1

Product type designation TM-PS-A UC

Installation type/mounting 4

Rack mounting No
Front mounting Yes
Rail mounting Yes
Wall mounting/direct mounting No

Supply voltage 3

Type of supply voltage AC
permissible range, lower limit (AC) 85 V
permissible range, upper limit (AC) 264 V
Show all 62 specifications ↓ Show less ↑54 more values in Identification, Input current, Output voltage, Output current, Hardware configuration, Isolation, Standards, approvals, certificates, Connection method, Dimensions, Weights, Logistics.

Identification 10

Part number 6ES7193-7DA20-0AA0
Type designation TM-PS-A UC
Brand Siemens
Condition New, factory sealed
Source Siemens and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 4019169214520
ETIM class EC001598
eCl@ss 27242603

Input current 2

At 50 Hz AC, max. 6 A
At 60 Hz AC, max. 6 A

Output voltage 3

Type of output voltage DC
permissible range, lower limit (DC) 20.4 V
permissible range, upper limit (DC) 28.8 V

Output current 1

At DC, max. 5 A

Hardware configuration 7

Slots: Number of slots 1
Slots: Plug-in modules, analog I/O No
Slots: Plug-in modules, digital I/O No
Slots: Plug-in modules, function modules and technology modules No
Slots: Plug-in modules, communication modules No
Slots: Plug-in modules, CPUs No
Slots: Plug-in modules, others Yes

Isolation 1

Isolation tested with 2500 V AC between control supply voltages and all output voltages

Standards, approvals, certificates 18

CE mark CE 0344
UKCA mark DEKRA 21UKEX0032 Importer UK: Siemens plc Manchester M20 2UR
cULus LISTED E334384
FM approval CLASSIFIED 3025852
Suitable for safety functions Yes
INMETRO certificate UL-BR 12.0077
Use in hazardous areas: ATEX marking II 2 G (1) G Ex eb [ia Ga/ib] IIC T4 Gb II 2 G (1) D Ex eb [ia IIIC Da] IIC T4 Gb I M2 Ex eb [ia/ib] I Mb
Use in hazardous areas: ATEX certificate KEMA 04 ATEX 2242
Use in hazardous areas: IECEx IECEx KEM 05.0003
Use in hazardous areas: CCC Ex 2020322310002881
Use in hazardous areas: Explosion protection category for gas ATEX gas explosion protection, Zone 1
Use in hazardous areas: Explosion protection category for dust ATEX dust explosion protection, Zone 21 always install in corresponding enclosure
Use in hazardous areas: associated equipment (Ex ia) No
Use in hazardous areas: associated equipment (Ex ib) No
Marine approval: Germanischer Lloyd (GL) Yes
Marine approval: American Bureau of Shipping (ABS) Yes
Marine approval: Bureau Veritas (BV) Yes
Marine approval: Det Norske Veritas (DNV) Yes

Connection method 2

Terminals: Conductor cross-section, min. 0.5 mm2; note "Wiring rules for ET 200iSP"
Terminals: Conductor cross-section, max. 4 mm2

Dimensions 3

Width 60 mm
Height 190 mm
Depth 52 mm

Weights 1

Weight, approx. 230 g

Logistics 6

Net weight 0.29 kg
Country of origin DE
Shipping weight 0.79 kg
Ships from Türkiye
Dispatch 18 Nov
Stock Critical stock

Source: manufacturer data · Last verified: 01 Nov 2026

Documents

Documents for 6ES7193-7DA20-0AA0

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • Suitable for safety functions
  • Germanischer Lloyd (GL)
  • American Bureau of Shipping (ABS)
  • Bureau Veritas (BV)
  • Det Norske Veritas (DNV)
  • Ex eb IIC T4 Gb
  • ATEX Zone 1/21
Quick answers

Questions about the TM-PS-A UC

What is the rated current of TM-PS-A UC?

The rated current of TM-PS-A UC is 5 A.

Which supply voltage is TM-PS-A UC rated for?

The rated operational voltage of TM-PS-A UC is 85–264 V AC.

What is the HS code of TM-PS-A UC for customs?

The tariff (HS) code on file for TM-PS-A UC is 85389099.

What is the EAN of TM-PS-A UC?

The EAN (GTIN) of TM-PS-A UC is 4019169214520.

Where does TM-PS-A UC ship from, and how fast?

TM-PS-A UC ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
