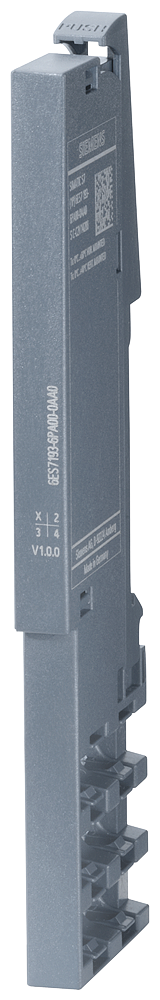

The Siemens 6ES7193-6PA00-0AA0 is a server module for the SIMATIC ET 200SP remote I/O station, mounted on a 7.5 mm or 15 mm DIN rail. It draws a maximum of 30 mA and operates from -30°C to 60°C horizontally (-30°C to 50°C vertically), in a 7 mm wide, 117 mm tall, 36 mm deep housing that weighs approximately 19 g.
The 6ES7193-6PA00-0AA0 fits both 7.5 mm and 15 mm DIN rail profiles, so it drops into existing ET 200SP racks without a rail swap. Vertical mounting derates the upper ambient limit from 60°C to 50°C, which matters when the module sits in a control cabinet with limited convection. At 19 g and 7 mm wide, it adds negligible depth to a station assembly.
Used as a spare or replacement server module in SIMATIC ET 200SP distributed I/O stations, alongside the interface module in PROFINET-connected remote I/O installations in switchgear and process cabinets.
| Product type designation | Server module |
|---|
| Mounting | Mounting rail 7.5 mm and 15 mm |
|---|
| Current consumption, max. | 30 mA |
|---|
| Part number | 6ES7193-6PA00-0AA0 |
|---|---|
| Type designation | Server module |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4025515080947 |
| ETIM class | EC002584 |
| eCl@ss | 27242692 |
| Ambient temperature during operation: horizontal installation, min. | -30 °C |
|---|---|
| Ambient temperature during operation: vertical installation, min. | -30 °C |
| Altitude during operation relating to sea level: Installation altitude above sea level, max. | 5 000 m; Restrictions for installation altitudes > 2 000 m, see manual |
| Absolute humidity: dew point, min. | -60 °C; suitable for dry room applications |
| Width | 7 mm |
|---|---|
| Height | 117 mm |
| Depth | 36 mm |
| Weight, approx. | 19 g |
|---|
| Net weight | 0.023 kg |
|---|---|
| Country of origin | DE |
| Shipping weight | 0.523 kg |
| Ships from | Türkiye |
| Dispatch | 18 Nov |
| Stock | In stock |
Source: manufacturer data · Last verified: 01 Nov 2026
No documents are on file for this part yet.
Ask us for the datasheetThe tariff (HS) code on file for Server module is 85176200.
The EAN (GTIN) of Server module is 4025515080947.
Server module ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
