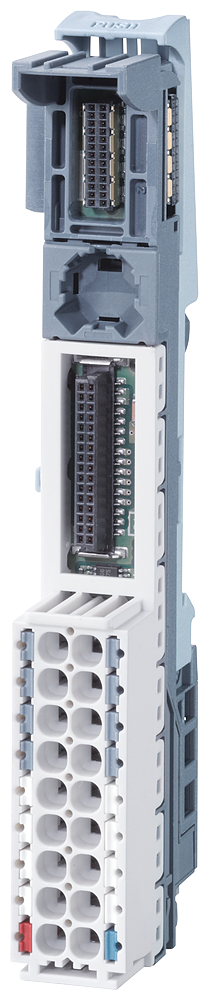

The Siemens 6ES7193-6BP00-0DA0 is a SIMATIC ET 200SP BaseUnit, type A0, that starts a new 24 V DC potential group at its position instead of bridging power in from the left. It integrates a mains filter, provides 16 push-in process terminals on a 15 x 117 mm footprint, and carries up to 10 A on the P1/P2 backplane bus.
This BaseUnit opens a new 24 V DC potential group at its slot, with an integrated mains filter and potential separation from the group upstream - use it wherever an I/O module needs its own supply reference, for example after a block of relay or inductive-load outputs that should not share transients with the rest of the station. Pick a bridged-group BaseUnit instead when the module can share the existing 24 V feed from its neighbor. Terminal layout (16 push-in process terminals, 0.14-2.5 mm² conductors) and the Type A0 slot match the rest of the A0 family, so modules move between the two potential-group styles without rewiring changes to the module itself.
Starts a fresh, filtered 24 V DC potential group inside a SIMATIC ET 200SP station - used ahead of I/O modules that must be electrically segmented from earlier stations in the row, such as noisy output groups or modules fed from a separate power supply branch.
| Product type designation | BU type A0 |
|---|---|
| HW functional status | From FS06 |
| Rated value (DC) | 24 V |
|---|---|
| external protection for power supply lines | Yes; 24 V DC/10 A miniature circuit breaker with type B or C tripping characteristic |
| Mains filter: integrated | Yes |
| For P1 and P2 bus, max. | 10 A |
|---|---|
| For process terminals, max. | 2 A |
| Part number | 6ES7193-6BP00-0DA0 |
|---|---|
| Type designation | BU type A0 |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4025515080855 |
| ETIM class | EC001598 |
| eCl@ss | 27242603 |
| Formation of potential groups: New potential group | Yes |
|---|---|
| Formation of potential groups: Potential group continued from the left | No |
| Slots: Number of slots | 1; Type A0 |
| between the potential groups | Yes |
|---|
| Isolation tested with | 707 V DC (type test) |
|---|
| Ecological footprint: environmental product declaration Global warming potential | Yes |
|---|---|
| Ecological footprint: global warming potential, (total) [CO2 eq] | 0.873 kg |
| Ecological footprint: global warming potential, (during production) [CO2 eq] | 0.866 kg |
| Ecological footprint: global warming potential, (during operation) [CO2 eq] | 0 kg |
| Ecological footprint: global warming potential, (after end of life cycle) [CO2 eq] | -0.0011 kg |
| Ambient temperature during operation: horizontal installation, min. | -30 °C |
|---|---|
| Ambient temperature during operation: vertical installation, min. | -30 °C |
| Altitude during operation relating to sea level: Installation altitude above sea level, max. | 5 000 m; Restrictions for installation altitudes > 2 000 m, see manual |
| Absolute humidity: dew point, min. | -60 °C; suitable for dry room applications |
| Color coding labels: for process terminals | CC00 to CC09 |
|---|---|
| Color coding labels: for AUX terminals | does not exist |
| Color coding labels: for add-on terminals | does not exist |
| Terminals: Terminal type | Push-in terminal |
|---|---|
| Terminals: system-integrated shield connection | Yes; Optional |
| Terminals: Conductor cross-section, min. | 0.14 mm2; AWG 26 |
| Terminals: Conductor cross-section, max. | 2.5 mm2; AWG 14 |
| Terminals: Number of process terminals to I/O module | 16 |
| Terminals: Number of terminals to AUX bus | 0 |
| Terminals: Number of add-on terminals | 0 |
| Terminals: Number of terminals with connection to P1 and P2 bus | 2 |
| Width | 15 mm |
|---|---|
| Height | 117 mm |
| Depth | 35 mm |
| Weight, approx. | 40 g |
|---|
| Net weight | 0.048 kg |
|---|---|
| Country of origin | DE |
| Shipping weight | 0.548 kg |
| Ships from | Türkiye |
| Dispatch | 18 Nov |
| Stock | In stock |
Source: manufacturer data · Last verified: 01 Nov 2026
No documents are on file for this part yet.
Ask us for the datasheetThe rated current of BU type A0 is 10 A.
The rated operational voltage of BU type A0 is 24 V AC.
The tariff (HS) code on file for BU type A0 is 85366990.
The EAN (GTIN) of BU type A0 is 4025515080855.
BU type A0 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
