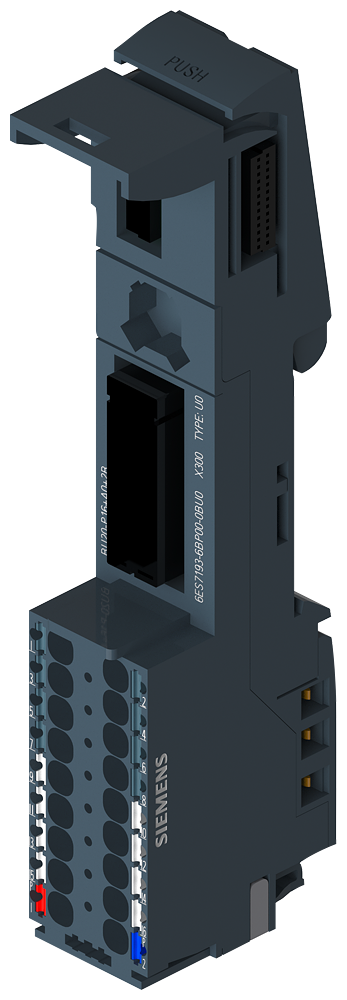

The Siemens 6ES7193-6BP00-0BU0 is a SIMATIC ET 200SP BaseUnit type U0 (BU20-P16+A0+2B) that provides push-in terminal connections for I/O modules on the ET 200SP backplane, rated 120 V DC or up to 277 V AC per process terminal, and bridged to the BaseUnit on its left to continue the existing potential group. It carries 10 A and measures 20 x 117 mm (W x H).
Type U0 is a bridged BaseUnit - it continues the potential group from the BaseUnit mounted to its left instead of starting a new one, so use it mid-station where modules share the same supply zone as their neighbor, and reserve a load-group-starting type for the point where a new voltage domain begins. The 120 V DC / up to 277 V AC (480 V L-L) rating and 16 process terminals fit modules that need more I/O points per slot than the smaller 6-terminal BaseUnits.
Mid-station potential-group continuation in an ET 200SP station, a mounting slot for digital I/O modules needing 16 process terminals, and 120/277 V class distributed I/O in North American voltage systems.
| Product type designation | BU type U0 |
|---|---|
| HW functional status | from FS11 |
| Rated value (DC) | See manual |
|---|---|
| For P1 and P2 bus | 120 V |
| For AUX bus | 120 V; Equal potential group to P1/P2 bus or PE |
| for process terminals | 120 V |
| Rated value (AC) | See manual |
| Mains filter: Integrated | No |
| up to 60 °C, max. | 10 A |
|---|---|
| For P1 and P2 bus, max. | 10 A |
| For AUX bus, max. | 10 A |
| For process terminals, max. | 10 A; Point of contact, derating depends on the module |
| Part number | 6ES7193-6BP00-0BU0 |
|---|---|
| Type designation | BU type U0 |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4047623409427 |
| ETIM class | EC001598 |
| eCl@ss | 27242603 |
| Automatic encoding | Yes |
|---|---|
| Formation of potential groups: New potential group | No |
| Formation of potential groups: Potential group continued from the left | Yes |
| Slots: Number of slots | 1 |
| between backplane bus and supply voltage | Yes |
|---|---|
| between process terminals and supply voltage | Yes; Not applicable for process terminals 15 and 16 |
| between power bus and supply voltage | No |
| Isolation tested with | 3 100 V DC |
|---|
| Ecological footprint: environmental product declaration Global warming potential | Yes |
|---|---|
| Ecological footprint: global warming potential, (total) [CO2 eq] | 0.873 kg |
| Ecological footprint: global warming potential, (during production) [CO2 eq] | 0.866 kg |
| Ecological footprint: global warming potential, (during operation) [CO2 eq] | 0 kg |
| Ecological footprint: global warming potential, (after end of life cycle) [CO2 eq] | -0.0011 kg |
| Ambient temperature during operation: horizontal installation, min. | -30 °C |
|---|---|
| Ambient temperature during operation: vertical installation, min. | -30 °C |
| Altitude during operation relating to sea level: Installation altitude above sea level, max. | 3 000 m |
| Absolute humidity: dew point, min. | -60 °C; suitable for dry room applications |
| Terminals: Terminal type | Push-in terminal |
|---|---|
| Terminals: system-integrated shield connection | Yes; Optional |
| Terminals: Conductor cross-section, min. | 0.14 mm2; 0.2 mm2 without wire end ferrule |
| Terminals: Conductor cross-section, max. | 2.5 mm2; 1.5 mm2 with wire end ferrule |
| Terminals: Number of process terminals to I/O module | 16 |
| Terminals: Number of terminals to AUX bus | 0 |
| Terminals: Number of add-on terminals | 0 |
| Terminals: Number of terminals with connection to P1 and P2 bus | 2 |
| Width | 20 mm |
|---|---|
| Height | 117 mm |
| Depth | 35 mm |
| Weight, approx. | 50 g |
|---|
| Net weight | 0.06 kg |
|---|---|
| Country of origin | DE |
| Shipping weight | 0.56 kg |
| Ships from | Türkiye |
| Dispatch | 18 Nov |
| Stock | In stock |
Source: manufacturer data · Last verified: 01 Nov 2026
No documents are on file for this part yet.
Ask us for the datasheetThe rated current of BU type U0 is 10 A.
The rated operational voltage of BU type U0 is 277 V AC.
The tariff (HS) code on file for BU type U0 is 85366990.
The EAN (GTIN) of BU type U0 is 4047623409427.
BU type U0 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
