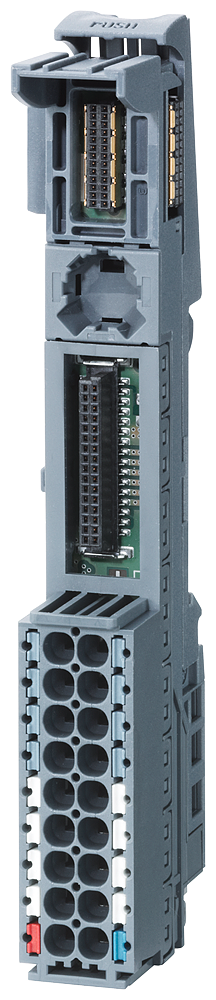

The Siemens 6ES7193-6BP00-0BA0 is a SIMATIC ET 200SP BaseUnit, type A0, that carries a digital I/O module on a 24 V DC potential group bridged in from the terminal to its left. It provides 16 push-in process terminals across a 15 x 117 mm footprint and passes up to 10 A on the P1/P2 backplane bus.
This BaseUnit bridges its potential group in from the terminal on its left, so it shares the 24 V supply and reference potential of the preceding BaseUnit in the row - use it for modules that stay on the same load group as their neighbor. Pick a new-potential-group BaseUnit instead when a module needs its own fresh 24 V group at that position, for example downstream of outputs that must be individually fused or isolated. The push-in terminals accept 0.14-2.5 mm² (AWG 26-14) conductors, and the 10 A external circuit breaker requirement on the supply line sets the practical current ceiling for the whole potential group, not just this base.
Mounts in a SIMATIC ET 200SP station to carry a Type A0 digital I/O module (16 process terminals) sharing a bridged 24 V DC potential group with the adjacent station position - typical in mixed digital I/O racks where several modules run off one supply feed.
| Product type designation | BU type A0 |
|---|---|
| HW functional status | From FS06 |
| Rated value (DC) | 24 V |
|---|---|
| external protection for power supply lines | Yes; 24 V DC/10 A miniature circuit breaker with type B or C tripping characteristic |
| Mains filter: integrated | No |
| For P1 and P2 bus, max. | 10 A |
|---|---|
| For process terminals, max. | 2 A |
| Part number | 6ES7193-6BP00-0BA0 |
|---|---|
| Type designation | BU type A0 |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4025515080848 |
| ETIM class | EC001598 |
| eCl@ss | 27242603 |
| Automatic encoding | Yes |
|---|---|
| Formation of potential groups: New potential group | No |
| Formation of potential groups: Potential group continued from the left | Yes |
| Slots: Number of slots | 1; Type A0 |
| Isolation tested with | 707 V DC (type test) |
|---|
| Ecological footprint: environmental product declaration Global warming potential | Yes |
|---|---|
| Ecological footprint: global warming potential, (total) [CO2 eq] | 0.873 kg |
| Ecological footprint: global warming potential, (during production) [CO2 eq] | 0.866 kg |
| Ecological footprint: global warming potential, (during operation) [CO2 eq] | 0 kg |
| Ecological footprint: global warming potential, (after end of life cycle) [CO2 eq] | -0.0011 kg |
| Ambient temperature during operation: horizontal installation, min. | -30 °C |
|---|---|
| Ambient temperature during operation: vertical installation, min. | -30 °C |
| Altitude during operation relating to sea level: Installation altitude above sea level, max. | 5 000 m; Restrictions for installation altitudes > 2 000 m, see manual |
| Absolute humidity: dew point, min. | -60 °C; suitable for dry room applications |
| Color coding labels: for process terminals | CC00 to CC09 |
|---|---|
| Color coding labels: for AUX terminals | does not exist |
| Color coding labels: for add-on terminals | does not exist |
| Terminals: Terminal type | Push-in terminal |
|---|---|
| Terminals: system-integrated shield connection | Yes; Optional |
| Terminals: Conductor cross-section, min. | 0.14 mm2; AWG 26 |
| Terminals: Conductor cross-section, max. | 2.5 mm2; AWG 14 |
| Terminals: Number of process terminals to I/O module | 16; Pro slot |
| Terminals: Number of terminals to AUX bus | 0 |
| Terminals: Number of add-on terminals | 0 |
| Terminals: Number of terminals with connection to P1 and P2 bus | 2; Pro slot |
| Width | 15 mm |
|---|---|
| Height | 117 mm |
| Depth | 35 mm |
| Weight, approx. | 40 g |
|---|
| Net weight | 0.048 kg |
|---|---|
| Country of origin | DE |
| Shipping weight | 0.548 kg |
| Ships from | Türkiye |
| Dispatch | 18 Nov |
| Stock | In stock |
Source: manufacturer data · Last verified: 01 Nov 2026
No documents are on file for this part yet.
Ask us for the datasheetThe rated current of BU type A0 is 10 A.
The rated operational voltage of BU type A0 is 24 V AC.
The tariff (HS) code on file for BU type A0 is 85366990.
The EAN (GTIN) of BU type A0 is 4025515080848.
BU type A0 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
