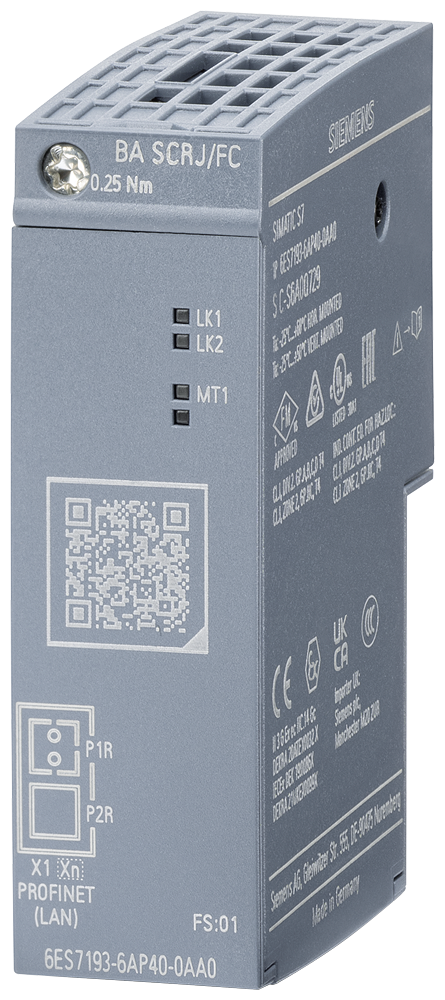

The Siemens 6ES7193-6AP40-0AA0 is a SIMATIC ET 200SP BusAdapter (BA SCRJ/FC) that converts an ET 200SP interface module's PROFINET port to one SCRJ fiber-optic port and one FastConnect copper port, supporting PCF fiber up to 100 m, plastic POF up to 50 m, or copper up to 100 m. It mounts directly on the interface module's BusAdapter slot at 20 mm width.
The BA SCRJ/FC pairs one polymer/PCF fiber port with one FastConnect copper port, aimed at short-hop fiber runs - 100 m on PCF, 50 m on plastic POF - rather than the multi-kilometer reach of the glass-fiber BA LC/FC or BA 2xLC variants; pick it when the fiber leg only needs to cross a machine cell or clear a few meters of EMI-heavy cabling, not a plant-wide backbone. The copper FastConnect leg on the other port covers a conventional 100 m run to the next panel.
Short-range fiber-to-copper media conversion on an ET 200SP PROFINET line within a single machine cell or across localized EMI sources, where full glass-fiber distance is not needed.
| Product type designation | BA SCRJ/FC |
|---|---|
| HW functional status | from FS04 |
| Number of PROFINET interfaces | 1; 2 ports (switch) SCRJ/FC |
|---|---|
| Supports protocol for PROFINET IO: Number of FC (FastConnect) connections | 1 |
| Supports protocol for PROFINET IO: Number of SCRJ ports Cable length | 1 |
| Supports protocol for PROFINET IO: PCF | 100 m |
| Supports protocol for PROFINET IO: Plastic FOC (POF) | 50 m |
| Supports protocol for PROFINET IO: Cu conductors | 100 m |
| Ecological footprint: environmental product declaration Global warming potential | Yes |
|---|---|
| Ecological footprint: global warming potential, (total) [CO2 eq] | 27.1 kg |
| Ecological footprint: global warming potential, (during production) [CO2 eq] | 1.35 kg |
| Ecological footprint: global warming potential, (during operation) [CO2 eq] | 25.7 kg |
| Ecological footprint: global warming potential, (after end of life cycle) [CO2 eq] | -0.023 kg |
| Part number | 6ES7193-6AP40-0AA0 |
|---|---|
| Type designation | BA SCRJ/FC |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4047623405627 |
| ETIM class | EC002584 |
| eCl@ss | 27242692 |
| Ambient temperature during operation: horizontal installation, min. | -25 °C |
|---|---|
| Ambient temperature during operation: vertical installation, min. | -25 °C |
| Altitude during operation relating to sea level: Installation altitude above sea level, max. | 5 000 m; restrictions for installation altitudes > 2 000 m, see ET 200SP system manual |
| Absolute humidity: dew point, min. | -60 °C; suitable for dry room applications |
| Width | 20 mm |
|---|---|
| Height | 69.5 mm |
| Depth | 59 mm |
| Weight, approx. | 50 g |
|---|
| eClass | 16 27-24-26-92 |
|---|---|
| ETIM | 10 EC002584 |
| IDEA | 4 3552 |
| UNSPSC | 15 32-15-17-03 |
| Maritime application NK / Nippon Kaiji Ky- | okai |
|---|
| Net weight | 0.069 kg |
|---|---|
| Country of origin | DE |
| Shipping weight | 0.569 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 01 Nov 2026
No documents are on file for this part yet.
Ask us for the datasheetThe tariff (HS) code on file for BA SCRJ/FC is 85176200.
The EAN (GTIN) of BA SCRJ/FC is 4047623405627.
BA SCRJ/FC ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
