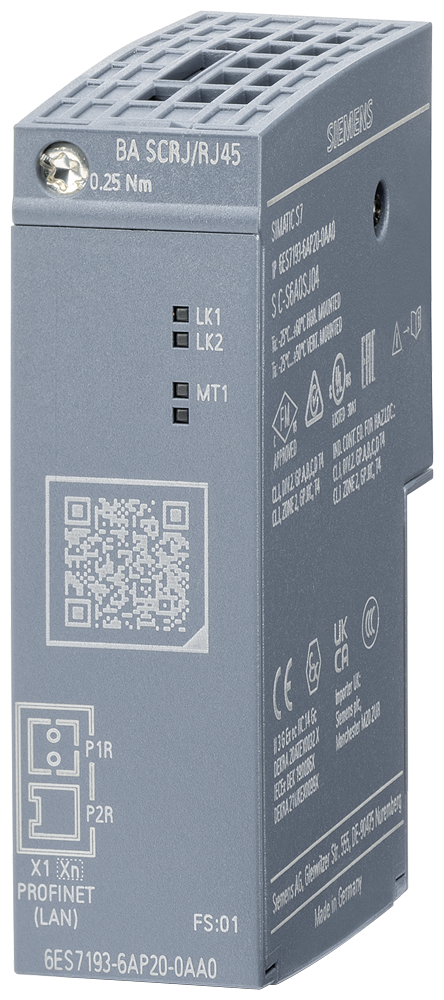

The Siemens 6ES7193-6AP20-0AA0 is a SIMATIC ET 200SP BusAdapter (BA SCRJ/RJ45) that converts a PROFINET fiber-optic segment to copper, combining one SCRJ fiber port with one RJ45 copper port on the same interface module. It extends fiber-optic cable runs up to 100 m on PCF and up to 50 m on plastic FOC, with a single copper RJ45 uplink to the rest of the network.
Choose this SCRJ/RJ45 BusAdapter over the all-copper BA 2x RJ45 variant when one port of the ET 200SP station needs to run over a plastic or PCF fiber-optic link — for EMI-heavy environments or cable runs where copper's distance limit is a problem — while the other port stays on standard RJ45 copper for the rest of the network. There are no configurable parameters on the BusAdapter itself — module diagnostics and network settings are handled entirely by the ET 200SP interface module it plugs into.
Mixed fiber/copper PROFINET wiring on ET 200SP stations where part of the network run needs fiber-optic isolation or extended distance and the rest stays on standard Ethernet cabling.
| Product type designation | BA SCRJ/RJ45 |
|---|---|
| HW functional status | from FS04 |
| Number of PROFINET interfaces | 1; 2 ports (switch) SCRJ/RJ45 |
|---|---|
| Supports protocol for PROFINET IO: Number of RJ45 ports | 1 |
| Supports protocol for PROFINET IO: Number of SCRJ ports Cable length | 1 |
| Supports protocol for PROFINET IO: PCF | 100 m |
| Supports protocol for PROFINET IO: Plastic FOC (POF) | 50 m |
| Supports protocol for PROFINET IO: Cu conductors | 100 m |
| Ecological footprint: environmental product declaration Global warming potential | Yes |
|---|---|
| Ecological footprint: global warming potential, (total) [CO2 eq] | 27.1 kg |
| Ecological footprint: global warming potential, (during production) [CO2 eq] | 1.35 kg |
| Ecological footprint: global warming potential, (during operation) [CO2 eq] | 25.7 kg |
| Ecological footprint: global warming potential, (after end of life cycle) [CO2 eq] | -0.023 kg |
| Part number | 6ES7193-6AP20-0AA0 |
|---|---|
| Type designation | BA SCRJ/RJ45 |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4047623405610 |
| ETIM class | EC002584 |
| eCl@ss | 27242692 |
| Ambient temperature during operation: horizontal installation, min. | -25 °C |
|---|---|
| Ambient temperature during operation: vertical installation, min. | -25 °C |
| Altitude during operation relating to sea level: Installation altitude above sea level, max. | 5 000 m; restrictions for installation altitudes > 2 000 m, see ET 200SP system manual |
| Absolute humidity: dew point, min. | -60 °C; suitable for dry room applications |
| Width | 20 mm |
|---|---|
| Height | 69.5 mm |
| Depth | 59 mm |
| Weight, approx. | 50 g |
|---|
| eClass | 16 27-24-26-92 |
|---|---|
| ETIM | 10 EC002584 |
| IDEA | 4 3552 |
| UNSPSC | 15 32-15-17-03 |
| Maritime application NK / Nippon Kaiji Ky- | okai |
|---|
| Net weight | 0.067 kg |
|---|---|
| Country of origin | DE |
| Shipping weight | 0.567 kg |
| Ships from | Türkiye |
| Dispatch | 18 Nov |
| Stock | Low stock |
Source: manufacturer data · Last verified: 01 Nov 2026
No documents are on file for this part yet.
Ask us for the datasheetThe tariff (HS) code on file for BA SCRJ/RJ45 is 85176200.
The EAN (GTIN) of BA SCRJ/RJ45 is 4047623405610.
BA SCRJ/RJ45 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
