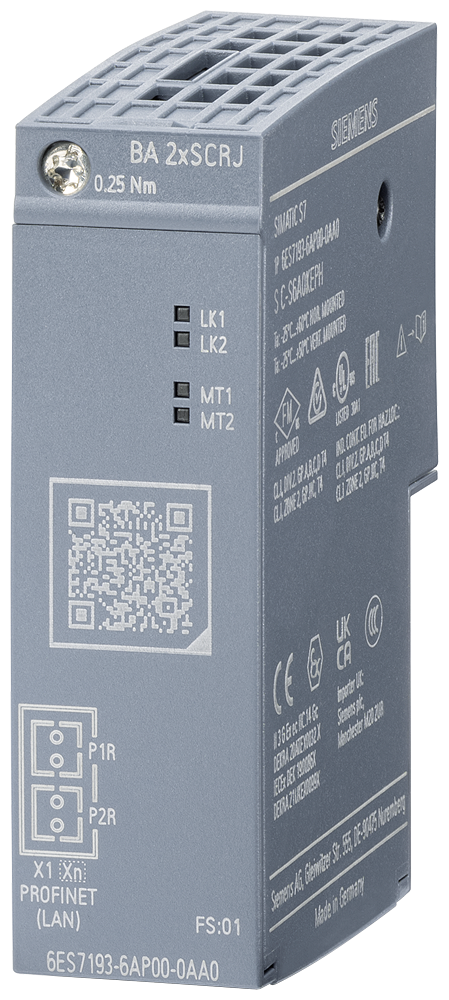

The Siemens 6ES7193-6AP00-0AA0 is a SIMATIC ET 200SP BusAdapter (BA 2xSCRJ) that replaces the copper PROFINET port of an ET 200SP interface module with two SCRJ fiber-optic ports, supporting PCF fiber runs up to 100 m or plastic POF up to 50 m. It mounts directly on the interface module's BusAdapter slot at just 20 mm width.
The BA 2xSCRJ swaps the ET 200SP interface module's onboard copper PROFINET port for two SCRJ fiber ports, which is the choice when a station segment runs through electrically noisy areas (near VFDs or welding equipment) or exceeds practical copper distances. PCF fiber covers 100 m and plastic POF covers 50 m, both suited to a single machine-to-panel hop rather than a plant-wide backbone. At 20 mm width and 50 g it adds no extra footprint beyond the interface module it plugs into, so it does not change the station's DIN-rail length.
ET 200SP stations wired through high-EMI zones where a fiber PROFINET hop avoids ground-loop interference on copper Ethernet, and panel-to-panel fiber links where cable trays cross high-voltage switchgear.
| Product type designation | BA 2x SCRJ |
|---|---|
| HW functional status | from FS04 |
| Number of PROFINET interfaces | 1; 2 ports (switch) 2x SCRJ |
|---|---|
| Supports protocol for PROFINET IO: Number of SCRJ ports Cable length | 2 |
| Supports protocol for PROFINET IO: PCF | 100 m |
| Supports protocol for PROFINET IO: Plastic FOC (POF) | 50 m |
| Ecological footprint: environmental product declaration Global warming potential | Yes |
|---|---|
| Ecological footprint: global warming potential, (total) [CO2 eq] | 27.1 kg |
| Ecological footprint: global warming potential, (during production) [CO2 eq] | 1.35 kg |
| Ecological footprint: global warming potential, (during operation) [CO2 eq] | 25.7 kg |
| Ecological footprint: global warming potential, (after end of life cycle) [CO2 eq] | -0.023 kg |
| Part number | 6ES7193-6AP00-0AA0 |
|---|---|
| Type designation | BA 2x SCRJ |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4047623403524 |
| ETIM class | EC002584 |
| eCl@ss | 27242692 |
| Ambient temperature during operation: horizontal installation, min. | -25 °C |
|---|---|
| Ambient temperature during operation: vertical installation, min. | -25 °C |
| Altitude during operation relating to sea level: Installation altitude above sea level, max. | 5 000 m; restrictions for installation altitudes > 2 000 m, see ET 200SP system manual |
| Absolute humidity: dew point, min. | -60 °C; suitable for dry room applications |
| Width | 20 mm |
|---|---|
| Height | 69.5 mm |
| Depth | 59 mm |
| Weight, approx. | 50 g |
|---|
| eClass | 16 27-24-26-92 |
|---|---|
| ETIM | 10 EC002584 |
| IDEA | 4 3552 |
| UNSPSC | 15 32-15-17-03 |
| Maritime application NK / Nippon Kaiji Ky- | okai |
|---|
| Net weight | 0.076 kg |
|---|---|
| Country of origin | DE |
| Shipping weight | 0.576 kg |
| Ships from | Türkiye |
| Dispatch | 18 Nov |
| Stock | In stock |
