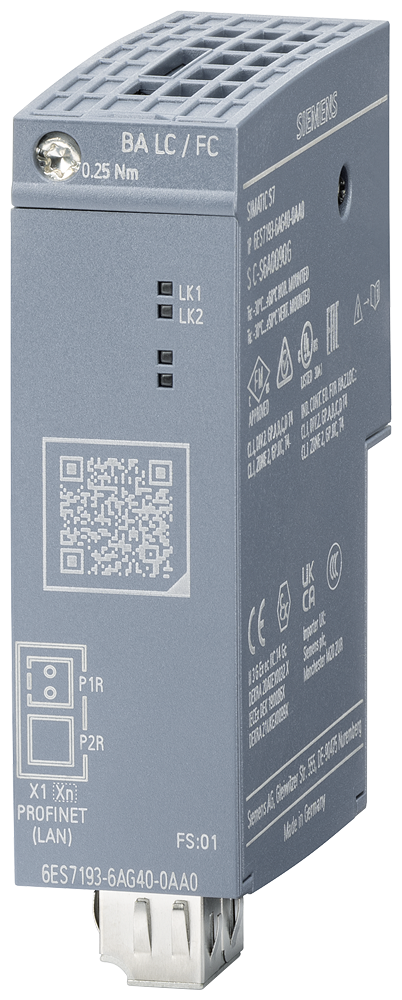

The Siemens 6ES7193-6AG40-0AA0 is a SIMATIC ET 200SP BusAdapter (BA LC/FC) that converts an ET 200SP interface module's PROFINET port to one LC glass fiber-optic port, up to 3 km, and one FastConnect copper port, up to 100 m, replacing the standard 2-port copper connection. It mounts directly on the interface module's BusAdapter slot at 20 mm width.
The BA LC/FC mixes one glass fiber port with one copper FastConnect port on the same BusAdapter, the choice at a station that needs to continue a fiber backbone on one side while dropping a short copper run to the next panel on the other - a single-fiber BA 2xLC does not offer that copper leg. The glass fiber leg reaches up to 3 km, well past the 100 m copper leg, so segment planning should route the longer run over the LC port. Like the other BusAdapters in this family it adds no footprint beyond the interface module it plugs into.
Media conversion point on an ET 200SP PROFINET line where one hop needs a fiber run into a remote panel and the other continues on standard copper cabling within the same station segment.
| Product type designation | BA LC/FC |
|---|---|
| HW functional status | from FS04 |
| Number of PROFINET interfaces | 1; 2 ports (switch) LC / FC |
|---|---|
| Supports protocol for PROFINET IO: Number of FC (FastConnect) connections | 1 |
| Supports protocol for PROFINET IO: Number of LC ports Cable length | 1; Wavelength of 1 270 ... 1 380 nm, corresponds to 100BASE-FX |
| Supports protocol for PROFINET IO: Cu conductors | 100 m |
| Supports protocol for PROFINET IO: Multimode graded-index fiber 50/125 µm | 3 km; min. transmit power -23.5 dB, min. receiver sensitivity -31 dB |
| Ecological footprint: environmental product declaration Global warming potential | Yes |
|---|---|
| Ecological footprint: global warming potential, (total) [CO2 eq] | 27.1 kg |
| Ecological footprint: global warming potential, (during production) [CO2 eq] | 1.35 kg |
| Ecological footprint: global warming potential, (during operation) [CO2 eq] | 25.7 kg |
| Ecological footprint: global warming potential, (after end of life cycle) [CO2 eq] | -0.023 kg |
| Part number | 6ES7193-6AG40-0AA0 |
|---|---|
| Type designation | BA LC/FC |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4047623406761 |
| ETIM class | EC002584 |
| eCl@ss | 27242692 |
| Ambient temperature during operation: horizontal installation, min. | -30 °C |
|---|---|
| Ambient temperature during operation: vertical installation, min. | -30 °C |
| Altitude during operation relating to sea level: Installation altitude above sea level, max. | 5 000 m; restrictions for installation altitudes > 2 000 m, see ET 200SP system manual |
| Width | 20 mm |
|---|---|
| Height | 69.5 mm |
| Depth | 59 mm |
| Weight, approx. | 50 g |
|---|
| eClass | 16 27-24-26-92 |
|---|---|
| ETIM | 10 EC002584 |
| IDEA | 4 3552 |
| UNSPSC | 15 32-15-17-03 |
| Maritime application NK / Nippon Kaiji Ky- | okai |
|---|
| Net weight | 0.068 kg |
|---|---|
| Country of origin | DE |
| Shipping weight | 0.568 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 01 Nov 2026
No documents are on file for this part yet.
Ask us for the datasheetThe tariff (HS) code on file for BA LC/FC is 85176200.
The EAN (GTIN) of BA LC/FC is 4047623406761.
BA LC/FC ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
