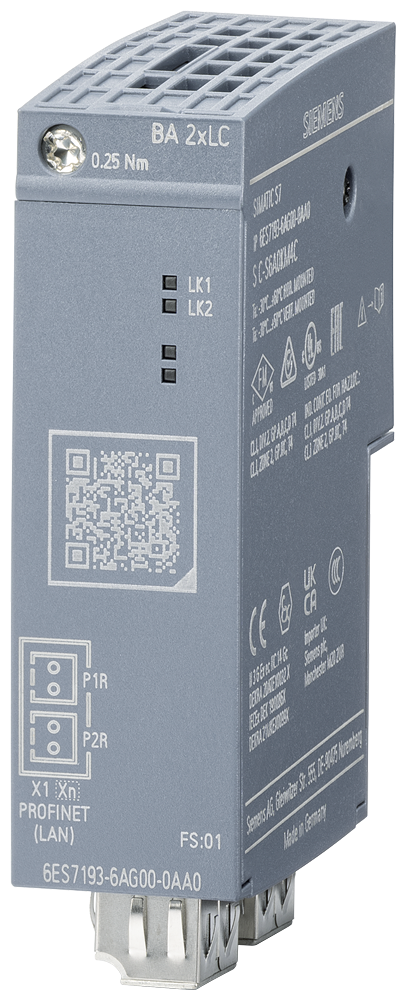

The Siemens 6ES7193-6AG00-0AA0 is a SIMATIC ET 200SP BusAdapter (BA 2xLC) that replaces the copper PROFINET port of an ET 200SP interface module with two LC glass fiber-optic ports, covering up to 3 km on 50/125 µm or 62.5/125 µm multimode fiber. It mounts directly on the interface module's BusAdapter slot at just 20 mm width.
The BA 2xLC swaps the ET 200SP interface module's onboard copper PROFINET port for two LC glass fiber ports, the choice when a segment must cover up to 3 km - well beyond copper's practical reach - or route through electrically noisy plant areas immune to ground-loop interference on copper Ethernet. Glass fiber, unlike the shorter-range plastic/PCF BusAdapters in the same family, is the pick when the run genuinely needs kilometer-class distance rather than a single machine-to-panel hop. At 20 mm width and 40 g it adds no extra footprint beyond the interface module it plugs into.
Long-distance PROFINET fiber links between ET 200SP stations spread across a plant, and segments routed through high-EMI zones where copper Ethernet risks ground-loop interference.
| Product type designation | BA 2x LC |
|---|---|
| HW functional status | from FS04 |
| Number of PROFINET interfaces | 1; 2 ports (switch) LC Multimode Glass Fibre |
|---|---|
| Supports protocol for PROFINET IO: Number of LC ports Cable length | 2; Wavelength of 1 270 ... 1 380 nm, corresponds to 100BASE-FX |
| Supports protocol for PROFINET IO: Multimode graded-index fiber 50/125 µm | 3 km; min. transmit power -23.5 dB, min. receiver sensitivity -31 dB |
| Ecological footprint: environmental product declaration Global warming potential | Yes |
|---|---|
| Ecological footprint: global warming potential, (total) [CO2 eq] | 27.1 kg |
| Ecological footprint: global warming potential, (during production) [CO2 eq] | 1.35 kg |
| Ecological footprint: global warming potential, (during operation) [CO2 eq] | 25.7 kg |
| Ecological footprint: global warming potential, (after end of life cycle) [CO2 eq] | -0.023 kg |
| Part number | 6ES7193-6AG00-0AA0 |
|---|---|
| Type designation | BA 2x LC |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4047623406754 |
| ETIM class | EC002584 |
| eCl@ss | 27242692 |
| Ambient temperature during operation: horizontal installation, min. | -30 °C |
|---|---|
| Ambient temperature during operation: vertical installation, min. | -30 °C |
| Altitude during operation relating to sea level: Installation altitude above sea level, max. | 5 000 m; restrictions for installation altitudes > 2 000 m, see ET 200SP system manual |
| Width | 20 mm |
|---|---|
| Height | 69.5 mm |
| Depth | 59 mm |
| Weight, approx. | 40 g |
|---|
| eClass | 14 27-24-26-92 |
|---|---|
| ETIM | 10 EC002584 |
| IDEA | 4 3552 |
| UNSPSC | 15 32-15-17-03 |
| Net weight | 0.072 kg |
|---|---|
| Country of origin | DE |
| Shipping weight | 0.572 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 01 Nov 2026
No documents are on file for this part yet.
Ask us for the datasheetThe tariff (HS) code on file for BA 2x LC is 85176200.
The EAN (GTIN) of BA 2x LC is 4047623406754.
BA 2x LC ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
