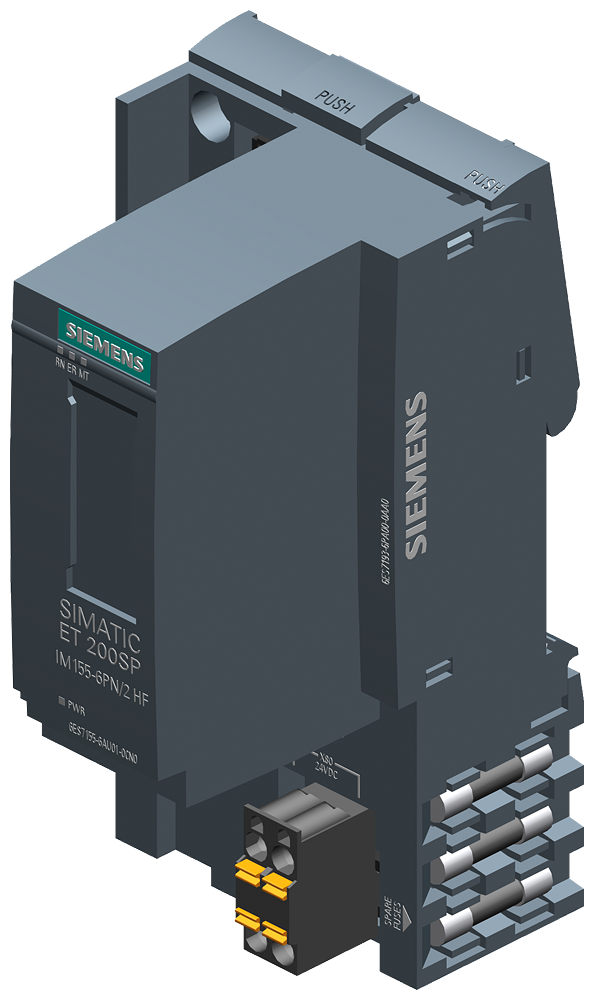

Siemens 6ES7155-6AU01-0CN0 is a SIMATIC ET 200SP interface module, IM 155-6 PN/2 HF, with a 2-port PROFINET interface supporting S2 system redundancy and multi-hot-swap of up to 64 ET 200SP modules plus 16 ET 200AL modules. It provides isochronous mode down to a 250 us bus cycle and requires a separate BusAdapter for the physical Ethernet ports.
The High Feature (HF) designation and S2 system redundancy support are what set this interface module apart - choose it specifically for stations needing PROFINET media redundancy (MRP) or system redundancy against a controller failover, or where up to 64 I/O modules exceed a base module's station limit. Isochronous mode down to a 250 us bus cycle with 1 us jitter matters for motion or fast closed-loop applications; skip it for simple discrete I/O where standard cyclic PROFINET is sufficient. The BusAdapter (RJ45, FC, M12, SCRJ, or LC variants) is ordered separately - this module ships without physical Ethernet ports.
Serves as the head module for ET 200SP distributed I/O stations on PROFINET networks requiring redundant media paths, isochronous motion synchronization, or large I/O counts across up to 64 ET 200SP and 16 ET 200AL modules.
| Product type designation | IM 155-6 PN/2 HF |
|---|---|
| HW functional status | From FS02 |
| Firmware version | V4.2 |
| FW update possible | Yes |
| Product function: I&M data | Yes; I&M0 to I&M3 |
| Product function: Module swapping during operation (hot swapping) | Yes; Multi-hot swapping |
| Product function: Isochronous mode | Yes |
| Product function: Tool changer | Yes; Docking station and docking unit |
| Engineering with: STEP 7 TIA Portal configurable/integrated from version | V15.1 |
| Engineering with: STEP 7 configurable/integrated from version | use GSD file |
| Engineering with: PROFINET from GSD version/GSD revision | GSDML V2.43 |
| via dataset | Yes |
|---|
| Rated value (DC) | 24 V |
|---|---|
| permissible range, lower limit (DC) | 19.2 V |
| permissible range, upper limit (DC) | 28.8 V |
| Reverse polarity protection | Yes |
| Short-circuit protection | Yes |
| Mains buffering: Mains/voltage failure stored energy time | 10 ms |
| Part number | 6ES7155-6AU01-0CN0 |
|---|---|
| Type designation | IM 155-6 PN/2 HF |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Phase-out announced by the manufacturer |
| EAN | 4047623409755 |
| ETIM class | EC001604 |
| eCl@ss | 27242608 |
| Current consumption, max. | 700 mA |
|---|---|
| Inrush current, max. | 4.5 A |
| I2t | 0.25 A2·s |
| Power loss, typ. | 2.4 W |
|---|
| Address space per module: Address space per module, max. | 288 byte; For input and output data respectively |
|---|---|
| Address space per station: Address space per station, max. | 1 440 byte |
| Rack: Quantity of operable ET 200SP modules, max. | 64 |
|---|---|
| Rack: Quantity of operable ET 200AL modules, max. | 16 |
| Submodules: Number of submodules per station, max. | 256 |
| Transmission procedure | 100BASE-TX |
|---|---|
| Number of PROFINET interfaces | 1; 2 ports (switch) |
| Interface types: RJ 45 (Ethernet) | Yes; with BusAdapter |
|---|---|
| Interface types: Number of ports | 2; with BusAdapter |
| Interface types: integrated switch | Yes |
| Interface types: BusAdapter (PROFINET) | Yes; BA 2x RJ45, BA 2x FC, BA 2x M12, BA 2x SCRJ, BA SCRJ/RJ45, BA SCRJ/FC, BA 2x LC, BA LC/RJ45, BA LC/FC |
| Protocols: PROFINET IO Device | Yes |
| Protocols: Open IE communication | Yes |
| Protocols: Media redundancy | Yes; PROFINET MRP client |
| PROFINET IO Device Services: IRT | Yes; 250 µs to 4 ms in 125 µs frame |
| PROFINET IO Device Services: Dynamic Frame Packing (DFP) | No |
| PROFINET IO Device Services: PROFIenergy | Yes |
| PROFINET IO Device Services: Prioritized startup | Yes |
| PROFINET IO Device Services: Shared device | Yes |
| PROFINET IO Device Services: Number of IO Controllers with shared device, max. | 4 |
| RJ 45 (Ethernet): Transmission procedure | PROFINET with 100 Mbit/s full duplex (100BASE-TX) |
|---|---|
| RJ 45 (Ethernet): 100 Mbps | Yes |
| RJ 45 (Ethernet): Autonegotiation | Yes |
| RJ 45 (Ethernet): Autocrossing | Yes |
| PROFINET IO | Yes |
|---|---|
| PROFIsafe | Yes |
| PROFIBUS | No |
| EtherNet/IP | No |
| Modbus TCP | No |
| Number of connections: Number of MtM communication relationships/connections, max. | 16 |
| Redundancy mode: PROFINET system redundancy (S2) | Yes; NAP S2 |
| Redundancy mode: PROFINET system redundancy (R1) | No |
| Redundancy mode: H-Sync forwarding Media redundancy | Yes |
| Redundancy mode: MRP | Yes |
| Redundancy mode: MRPD | No |
| Open IE communication: TCP/IP | Yes |
| Open IE communication: SNMP | Yes |
| Open IE communication: LLDP | Yes |
| Equidistance | Yes |
|---|---|
| shortest clock pulse | 250 µs |
| max. cycle | 4 ms |
| Bus cycle time (TDP), min. | 250 µs |
| Jitter, max. | 1 µs |
| Status indicator | Yes |
|---|---|
| Alarms | Yes |
| Diagnostics function | Yes |
| Diagnostics indication LED: RUN LED | Yes; green LED |
| Diagnostics indication LED: ERROR LED | Yes; red LED |
| Diagnostics indication LED: MAINT LED | Yes; Yellow LED |
| Diagnostics indication LED: Monitoring of the supply voltage (PWR-LED) | Yes; green PWR LED |
| Diagnostics indication LED: Connection display LINK TX/RX | Yes; 2x green link LEDs on BusAdapter |
| between backplane bus and electronics | No |
|---|---|
| between PROFINET and all other circuits | Yes; 1500 V AC (type test) |
| between supply and all other circuits | No |
| between different circuits | Safety extra low voltage SELV |
|---|
| Isolation tested with | 707 V DC (type test) |
|---|
| Network loading class | 3 |
|---|---|
| Ecological footprint: environmental product declaration Global warming potential | Yes |
| Ecological footprint: global warming potential, (total) [CO2 eq] | 105 kg |
| Ecological footprint: global warming potential, (during production) [CO2 eq] | 13.7 kg |
| Ecological footprint: global warming potential, (during operation) [CO2 eq] | 91.9 kg |
| Ecological footprint: global warming potential, (after end of life cycle) [CO2 eq] | -0.617 kg |
| PROFINET Security Class | 1 |
|---|
| Ambient temperature during operation: horizontal installation, min. | -30 °C; No condensation |
|---|---|
| Ambient temperature during operation: vertical installation, min. | -30 °C; No condensation |
| Altitude during operation relating to sea level: Installation altitude above sea level, max. | 5 000 m; Restrictions for installation altitudes > 2 000 m, see manual |
| Absolute humidity: dew point, min. | -60 °C; suitable for dry room applications |
| ET-Connection: via BU/BA Send | Yes; + 16 ET 200AL modules |
|---|
| Strain relief | Yes; Optional |
|---|
| Width | 50 mm |
|---|---|
| Height | 117 mm |
| Depth | 74 mm |
| Weight, approx. | 120 g; without BusAdapter |
|---|
| eClass | 7.1 27-24-26-08 |
|---|---|
| ETIM | 10 EC001604 |
| IDEA | 4 3564 |
| UNSPSC | 15 32-15-17-05 |
| General Product Approval | China RoHS |
|---|
| Net weight | 0.171 kg |
|---|---|
| Country of origin | DE |
| Shipping weight | 0.671 kg |
| Ships from | Türkiye |
| Dispatch | 18 Nov |
| Stock | In stock |
