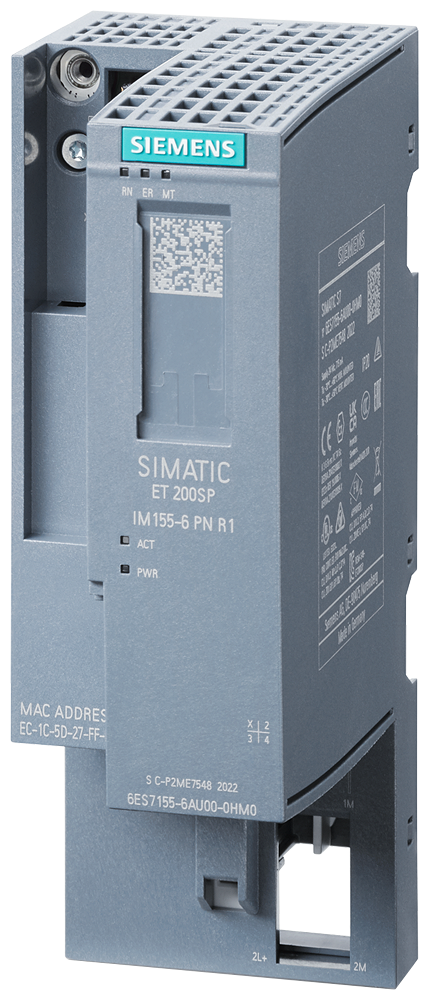

The Siemens 6ES7155-6AU00-0HM0 is a SIMATIC ET 200SP PROFINET interface module (IM 155-6 PN R1) built for PROFINET system redundancy (R1), supporting up to 64 I/O modules with multi-hot-swap and a 1 ms system cycle for redundancy synchronization. It runs from 24 V DC through a 2-port BusAdapter slot and supports PROFINET Security Class 1.
The R1 suffix marks this as the PROFINET system-redundancy variant of the ET 200SP interface module, keeping a station running when one of two redundant PROFINET paths fails - pick it over a standard IM 155-6 PN when the line needs controller-level redundancy, not just media-redundant cabling. Multi-hot-swap lets individual I/O modules be replaced while all 64 module slots stay in RUN, and PROFINET Security Class 1 adds signed firmware updates and data-integrity checks against unauthorized configuration changes. The BusAdapter for the physical PROFINET ports is ordered separately and must match the plant's copper or fiber cabling.
Head module for redundant SIMATIC ET 200SP stations on process or high-availability machine lines where a PROFINET path fault must not interrupt up to 64 I/O modules.
| Product type designation | IM 155-6 PN R1 |
|---|---|
| HW functional status | From FS03 |
| Firmware version | V6.1 |
| FW update possible | Yes |
| Product function: I&M data | Yes; I&M0 to I&M4 |
| Product function: Module swapping during operation (hot swapping) | Yes; Multi-hot swapping |
| Product function: Isochronous mode | No |
| Product function: IRT | No |
| Engineering with: STEP 7 TIA Portal configurable/integrated from version | V19 |
| Engineering with: STEP 7 configurable/integrated from version | use GSD file |
| Engineering with: PROFINET from GSD version/GSD revision | GSDML V2.45 |
| via dataset | No |
|---|
| Reparameterization possible in RUN | Yes |
|---|---|
| reconfiguration possible in RUN | Yes |
| Part number | 6ES7155-6AU00-0HM0 |
|---|---|
| Type designation | IM 155-6 PN R1 |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Phase-out announced by the manufacturer |
| EAN | 4047623413028 |
| ETIM class | EC001604 |
| eCl@ss | 27242608 |
| Rated value (DC) | 24 V |
|---|---|
| permissible range, lower limit (DC) | 19.2 V |
| permissible range, upper limit (DC) | 28.8 V |
| Reverse polarity protection | Yes |
| Short-circuit protection | Yes |
| Mains buffering: Mains/voltage failure stored energy time | 10 ms |
| Current consumption, max. | 700 mA |
|---|---|
| Inrush current, max. | 5 A |
| I2t | 0.36 A2·s |
| Power loss, typ. | 2.4 W |
|---|
| Address space per module: Address space per module, max. | 288 byte; For input and output data respectively |
|---|---|
| Address space per station: Address space per station, max. | 1 440 byte |
| Rack: Quantity of operable ET 200SP modules, max. | 64 |
|---|---|
| Rack: Quantity of operable ET 200AL modules, max. | 0 |
| Submodules: Number of submodules per station, max. | 256 |
| Transmission procedure | 100BASE-TX |
|---|---|
| Number of PROFINET interfaces | 1; 2 ports (switch) |
| Interface types: RJ 45 (Ethernet) | Yes; with BusAdapter |
|---|---|
| Interface types: Number of ports | 2; with BusAdapter |
| Interface types: integrated switch | Yes |
| Interface types: BusAdapter (PROFINET) | Yes; BA 2x RJ45, BA 2x M12, BA 2x FC, BA 2x SCRJ, BA SCRJ/RJ45, BA SCRJ/FC, BA 2x LC, BA LC/RJ45, BA LC/FC, BA 2x LC-LD, BA LC-LD/RJ45, BA LC-LD/M12 |
| Protocols: PROFINET IO Device | Yes |
| Protocols: Open IE communication | Yes |
| Protocols: Media redundancy | Yes; PROFINET MRP client |
| PROFINET IO Device Services: IRT | No |
| PROFINET IO Device Services: Dynamic Frame Packing (DFP) | No |
| PROFINET IO Device Services: PROFIenergy | No |
| PROFINET IO Device Services: Prioritized startup | No |
| PROFINET IO Device Services: Shared device | No |
| RJ 45 (Ethernet): Transmission procedure | PROFINET with 100 Mbit/s full duplex (100BASE-TX) |
|---|---|
| RJ 45 (Ethernet): 100 Mbps | Yes |
| RJ 45 (Ethernet): Autonegotiation | Yes |
| RJ 45 (Ethernet): Autocrossing | Yes |
| Supports protocol for PROFINET IO | Yes |
|---|---|
| PROFIsafe | Yes |
| PROFIBUS | No |
| EtherNet/IP | No |
| Modbus TCP | No |
| Redundancy mode: PROFINET system redundancy (S2) | No |
| Redundancy mode: PROFINET system redundancy (R1) | Yes |
| Redundancy mode: H-Sync forwarding Media redundancy | Yes |
| Redundancy mode: MRP | Yes |
| Redundancy mode: MRPD | No |
| Open IE communication: TCP/IP | Yes |
| Open IE communication: SNMP | Yes |
| Open IE communication: LLDP | Yes |
| Status indicator | Yes |
|---|---|
| Alarms | Yes |
| Diagnostics function | Yes |
| Diagnostics indication LED: RUN LED | Yes; green LED |
| Diagnostics indication LED: ERROR LED | Yes; red LED |
| Diagnostics indication LED: MAINT LED | Yes; Yellow LED |
| Diagnostics indication LED: ACT LED | Yes; green LED |
| Diagnostics indication LED: Monitoring of the supply voltage (PWR-LED) | Yes; green PWR LED |
| Diagnostics indication LED: Connection display LINK TX/RX | Yes; 2x green link LEDs on BusAdapter |
| between backplane bus and electronics | No |
|---|---|
| between PROFINET and all other circuits | Yes; 1500 V AC (type test) |
| between supply and all other circuits | Yes |
| between different circuits | Safety extra low voltage SELV |
|---|
| Isolation tested with | 707 V DC (type test) |
|---|
| Network loading class | 3 |
|---|---|
| Ecological footprint: environmental product declaration Global warming potential | Yes |
| Ecological footprint: global warming potential, (total) [CO2 eq] | 105 kg |
| Ecological footprint: global warming potential, (during production) [CO2 eq] | 13.7 kg |
| Ecological footprint: global warming potential, (during operation) [CO2 eq] | 91.9 kg |
| Ecological footprint: global warming potential, (after end of life cycle) [CO2 eq] | -0.617 kg |
| PROFINET Security Class | 1 |
|---|---|
| signed firmware update | Yes |
| Secure Boot | No |
| securely removing data | No |
| data integrity | Yes |
| Ambient temperature during operation: horizontal installation, min. | -30 °C; No condensation |
|---|---|
| Ambient temperature during operation: vertical installation, min. | -30 °C; No condensation |
| Altitude during operation relating to sea level: Installation altitude above sea level, max. | 2 000 m |
| ET-Connection: via BU/BA Send | No |
|---|
| Width | 50 mm |
|---|---|
| Height | 138 mm |
| Depth | 89 mm |
| Weight, approx. | 192 g; without BusAdapter |
|---|
| ETIM | 9 EC001604 |
|---|---|
| IDEA | 4 3564 |
| UNSPSC | 15 32-15-17-05 |
| General Product Approval | China RoHS |
|---|
| Net weight | 0.225 kg |
|---|---|
| Country of origin | DE |
| Shipping weight | 0.725 kg |
| Ships from | Türkiye |
| Dispatch | 18 Nov |
| Stock | Low stock |
