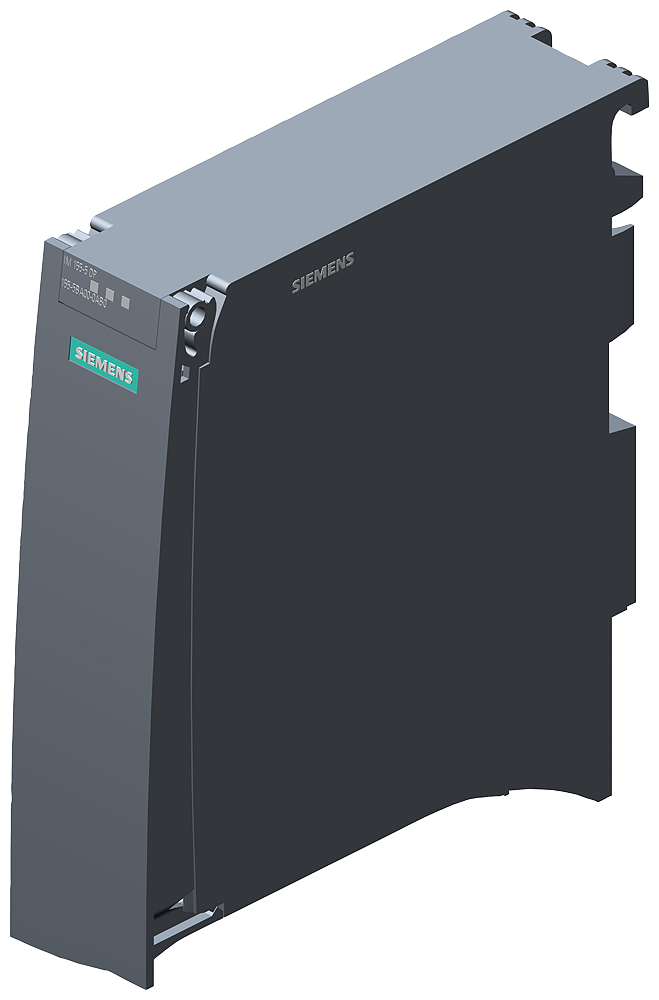

The Siemens 6ES7155-5BA00-0AB0 is a SIMATIC ET 200MP PROFIBUS interface module (IM 155-5 DP ST) that connects up to 12 S7-1500 I/O modules to a PROFIBUS DP master through a single RS 485 port at up to 12 Mbit/s. It runs from a 24 V DC supply and ships with the PROFIBUS connection plug 6ES7972-0BB70-0XA0 included.
The ST (Standard) designation means this interface module covers standard-speed PROFIBUS DP connectivity for up to 12 S7-1500 modules without the extended IRT diagnostics of a PROFINET HF variant - choose it when the station only needs cyclic DP data exchange and DPV1 acyclic parameterization on a PROFIBUS, not PROFINET, network. PROFIsafe support lets F-modules run in the same rack for fail-safe I/O over the same DP segment. The RS 485 port tops out at 12 Mbit/s, so segment length and repeater count on the DP trunk should be checked against that rate before scaling toward the 12-module limit.
Head module for a PROFIBUS DP-based ET 200MP station carrying up to 12 S7-1500 I/O modules, including fail-safe PROFIsafe I/O, on plants standardized on PROFIBUS rather than PROFINET.
| Product type designation | IM 155-5 DP ST |
|---|---|
| HW functional status | from FS01 |
| Firmware version | V2.0.0 |
| FW update possible | Yes |
| Vendor identification (VendorID) | 81 AAh |
| Product function: I&M data | Yes; I&M0 to I&M3 |
| Product function: Module swapping during operation (hot swapping) | No |
| Product function: Isochronous mode | No |
| Product function: IRT | No |
| Product function: Tool changer | No |
| Product function: Local coupling, IO data | No |
| Engineering with: STEP 7 TIA Portal configurable/integrated from version | V13 |
| Engineering with: STEP 7 configurable/integrated from version | use GSD file |
| Engineering with: PROFIBUS from GSD version/GSD revision | V1.0 / V5.1 |
| via dataset | No |
|---|
| Rated value (DC) | 24 V |
|---|---|
| permissible range, lower limit (DC) | 19.2 V |
| permissible range, upper limit (DC) | 28.8 V |
| Reverse polarity protection | Yes |
| Short-circuit protection | Yes |
| Mains buffering: Mains/voltage failure stored energy time | 5 ms |
| Part number | 6ES7155-5BA00-0AB0 |
|---|---|
| Type designation | IM 155-5 DP ST |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Phase-out announced by the manufacturer |
| EAN | 4047623402138 |
| ETIM class | EC001604 |
| eCl@ss | 27242608 |
| Current consumption (rated value) | 0.2 A; at 24 V DC and without load |
|---|---|
| Current consumption, max. | 1.2 A; at 20.4 V DC and max. load |
| Inrush current, max. | 4 A |
| I2t | 0.09 A2·s |
| from interface 5 V DC, max. | 80 mA |
| Infeed power to the backplane bus | 14 W |
|---|
| Power loss, typ. | 4 W |
|---|
| Address space per module: Address space per module, max. | 64 byte; For input and output data respectively |
|---|---|
| Address space per station: Address space per station, max. | 244 byte; For input and output data respectively |
| Integrated power supply | Yes; 14 W |
|---|---|
| System power supply can be plugged in to left of IM | No |
| Number of permissible power segments | 1; incl. interface module |
| Rack: Modules per rack, max. | 12; I/O modules |
| Number of PROFIBUS interfaces | 1; 1 port |
|---|
| Interface types: RS 485 | Yes |
|---|---|
| Interface types: Number of ports | 1 |
| Interface types: integrated switch | No |
| Interface types: BusAdapter (PROFINET) | No |
| Protocols: PROFIBUS DP device | Yes |
| PROFINET IO Device Services: IRT | No |
| RS 485: Transmission rate, max. | 12 Mbit/s |
|---|
| Supports protocol for PROFINET IO | No |
|---|---|
| PROFIsafe | Yes |
| PROFIBUS | Yes |
| EtherNet/IP | No |
| Modbus TCP | No |
| PROFIBUS DP Services: SYNC capability | Yes |
| PROFIBUS DP Services: FREEZE capability | Yes |
| PROFIBUS DP Services: DPV1 | Yes |
| Status indicator | Yes |
|---|---|
| Alarms | Yes |
| Diagnostics function | Yes |
| Diagnostics indication LED: RUN LED | Yes; green LED |
| Diagnostics indication LED: ERROR LED | Yes; red LED |
| Diagnostics indication LED: MAINT LED | Yes; Yellow LED |
| Diagnostics indication LED: Connection display DP | Yes; green LED |
| between backplane bus and electronics | No |
|---|---|
| between PROFIBUS DP and all other circuit components | Yes |
| between supply and all other circuits | No |
| between different circuits | Safety extra low voltage SELV |
|---|
| Isolation tested with | 707 V DC (type test) |
|---|
| Siemens Eco Profile (SEP) | Siemens EcoTech |
|---|---|
| Ecological footprint: environmental product declaration Global warming potential | Yes |
| Ecological footprint: global warming potential, (total) [CO2 eq] | 64.1 kg |
| Ecological footprint: global warming potential, (during production) [CO2 eq] | 11.1 kg |
| Ecological footprint: global warming potential, (during operation) [CO2 eq] | 53.6 kg |
| Ecological footprint: global warming potential, (after end of life cycle) [CO2 eq] | -0.669 kg |
| Ambient temperature during operation: horizontal installation, min. | -25 °C; from FS04 |
|---|---|
| Ambient temperature during operation: vertical installation, min. | -25 °C; from FS04 |
| Altitude during operation relating to sea level: Installation altitude above sea level, max. | 5 000 m; Restrictions for installation altitudes > 2 000 m, see manual |
| Absolute humidity: dew point, min. | -60 °C; suitable for dry room applications |
| ET-Connection: via BU/BA Send | No |
|---|
| Width | 35 mm |
|---|---|
| Height | 147 mm |
| Depth | 129 mm |
| Weight, approx. | 360 g |
|---|
| Net weight | 0.391 kg |
|---|---|
| Country of origin | DE |
| Shipping weight | 0.891 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
