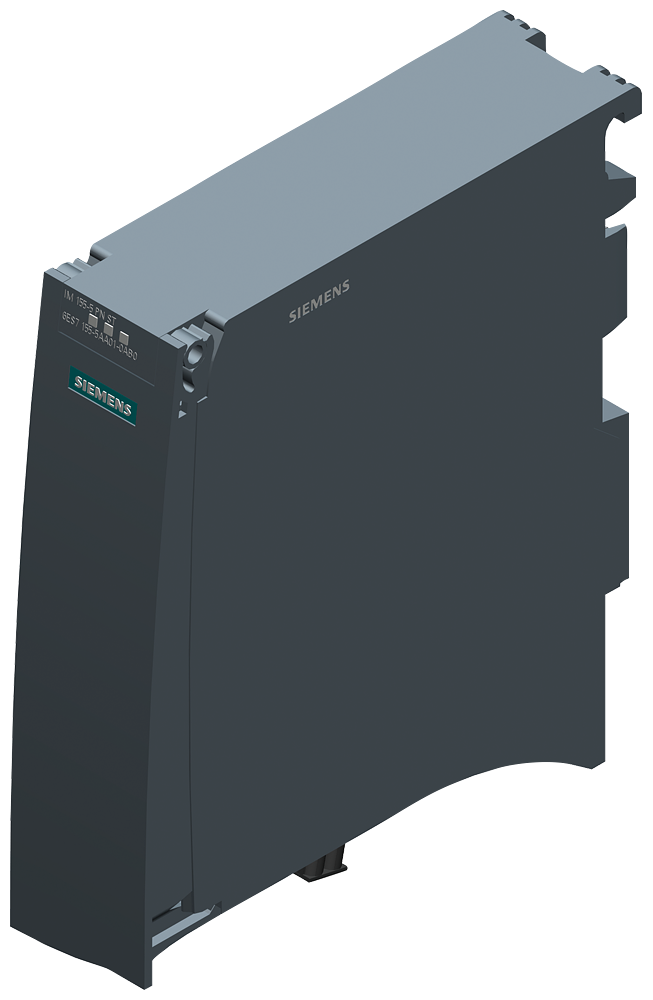

The Siemens SIMATIC ET 200MP IM 155-5 PN ST (6ES7155-5AA01-0AB0) is a PROFINET IO-Device interface module that connects up to 30 ET 200MP I/O modules to a PROFINET IO controller, with an integrated 2-port switch, IRT support down to 250us, and Media Redundancy Protocol (MRP) client capability. It supports up to 12 modules without an added power supply, or 30 with one.
The integrated 14W power supply (backplane infeed) lets this IM host I/O modules directly without a separate power supply, and 3 permissible power segments extend that to 30 modules per station instead of the 12-module limit without an added supply. Shared Device support for up to 2 IO Controllers and PROFINET MRP client capability suit split-ownership or ring-topology PROFINET architectures; select a station design with an additional power supply only if the connected I/O modules draw more than the 14W the integrated supply provides.
Used to build distributed ET 200MP I/O stations on PROFINET for machine control, process skids, and panel-building applications needing IRT-capable I/O with switch-embedded ring or line network topology.
| Product type designation | IM 155-5 PN ST |
|---|---|
| HW functional status | from FS01 |
| Firmware version | V4.1.0 |
| FW update possible | Yes |
| Vendor identification (VendorID) | 0x002A |
| Device identifier (DeviceID) | 0X0312 |
| Product function: I&M data | Yes; I&M0 to I&M3 |
| Product function: Module swapping during operation (hot swapping) | No |
| Product function: Isochronous mode | Yes |
| Product function: IRT | Yes |
| Product function: Tool changer | No |
| Product function: Local coupling, IO data | No |
| Engineering with: STEP 7 TIA Portal configurable/integrated from version | V15 |
| Engineering with: STEP 7 configurable/integrated from version | use GSD file |
| Engineering with: PROFINET from GSD version/GSD revision | GSDML V2.3 |
| via dataset | Yes |
|---|
| Rated value (DC) | 24 V |
|---|---|
| permissible range, lower limit (DC) | 19.2 V |
| permissible range, upper limit (DC) | 28.8 V |
| Reverse polarity protection | Yes |
| Short-circuit protection | Yes |
| Mains buffering: Mains/voltage failure stored energy time | 10 ms |
| Part number | 6ES7155-5AA01-0AB0 |
|---|---|
| Type designation | IM 155-5 PN ST |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Phase-out announced by the manufacturer |
| EAN | 4047623408505 |
| ETIM class | EC001604 |
| eCl@ss | 27242608 |
| Current consumption (rated value) | 0.2 A; at 24 V DC and without load |
|---|---|
| Current consumption, max. | 1.2 A |
| Inrush current, max. | 9 A |
| I2t | 0.09 A2·s |
| Infeed power to the backplane bus | 14 W |
|---|---|
| Power consumption from the backplane bus | 2.3 W; in case of operation with separate system power supply to the left of IM |
| Power loss, typ. | 4.5 W |
|---|
| Address space per module: Address space per module, max. | 256 byte; For input and output data respectively |
|---|---|
| Address space per station: Address space per station, max. | 512 byte; For input and output data respectively |
| Integrated power supply | Yes; 14 W |
|---|---|
| System power supply can be plugged in to left of IM | Yes |
| Number of permissible power segments | 3; incl. interface module |
| Rack: Modules per rack, max. | 30; I/O modules |
| Submodules: Number of submodules per station, max. | 256; 9 per I/O module |
| Transmission procedure | 100BASE-TX |
|---|---|
| Number of PROFINET interfaces | 1; 2 ports (switch) |
| Interface types: RJ 45 (Ethernet) | Yes |
|---|---|
| Interface types: Number of ports | 2 |
| Interface types: integrated switch | Yes |
| Interface types: BusAdapter (PROFINET) | No |
| Protocols: PROFINET IO Device | Yes |
| Protocols: Open IE communication | Yes |
| Protocols: Media redundancy | Yes; PROFINET MRP client |
| PROFINET IO Device Services: IRT | Yes; 250 µs to 4 ms in 125 µs frame |
| PROFINET IO Device Services: Dynamic Frame Packing (DFP) | No |
| PROFINET IO Device Services: PROFIenergy | No |
| PROFINET IO Device Services: Prioritized startup | Yes |
| PROFINET IO Device Services: Shared device | Yes |
| PROFINET IO Device Services: Number of IO Controllers with shared device, max. | 2 |
| RJ 45 (Ethernet): Transmission procedure | PROFINET with 100 Mbit/s full duplex (100BASE-TX) |
|---|---|
| RJ 45 (Ethernet): 100 Mbps | Yes |
| RJ 45 (Ethernet): Autonegotiation | Yes |
| RJ 45 (Ethernet): Autocrossing | Yes |
| PROFINET IO | Yes |
|---|---|
| PROFIsafe | Yes |
| PROFIBUS | No |
| EtherNet/IP | No |
| Modbus TCP | No |
| Redundancy mode: PROFINET system redundancy (S2) | No |
| Redundancy mode: on S7-1500R/H | No |
| Redundancy mode: on S7-400H | No |
| Redundancy mode: PROFINET system redundancy (R1) | No |
| Redundancy mode: H-Sync forwarding Media redundancy | No |
| Redundancy mode: MRP | Yes |
| Redundancy mode: MRPD | No |
| Open IE communication: TCP/IP | Yes |
| Open IE communication: SNMP | Yes |
| Open IE communication: LLDP | Yes |
| Equidistance | Yes |
|---|---|
| shortest clock pulse | 250 µs |
| max. cycle | 4 ms |
| Bus cycle time (TDP), min. | 250 µs |
| Jitter, max. | 1 µs |
| Status indicator | Yes |
|---|---|
| Alarms | Yes |
| Diagnostics function | Yes |
| Diagnostics indication LED: RUN LED | Yes; green LED |
| Diagnostics indication LED: ERROR LED | Yes; red LED |
| Diagnostics indication LED: MAINT LED | Yes; Yellow LED |
| Diagnostics indication LED: Connection display LINK TX/RX | Yes; 2x green-yellow LEDs |
| between backplane bus and electronics | No |
|---|---|
| between PROFINET and all other circuits | Yes; 1500 V AC (type test) |
| between supply and all other circuits | No |
| between different circuits | Safety extra low voltage SELV |
|---|
| Isolation tested with | 707 V DC (type test) |
|---|
| Siemens Eco Profile (SEP) | Siemens EcoTech |
|---|---|
| Network loading class | 3 |
| Ecological footprint: environmental product declaration Global warming potential | Yes |
| Ecological footprint: global warming potential, (total) [CO2 eq] | 64.1 kg |
| Ecological footprint: global warming potential, (during production) [CO2 eq] | 11.1 kg |
| Ecological footprint: global warming potential, (during operation) [CO2 eq] | 53.6 kg |
| Ecological footprint: global warming potential, (after end of life cycle) [CO2 eq] | -0.669 kg |
| PROFINET Security Class | 0 |
|---|
| Ambient temperature during operation: horizontal installation, min. | -25 °C; From FS03 |
|---|---|
| Ambient temperature during operation: vertical installation, min. | -25 °C; From FS03 |
| Altitude during operation relating to sea level: Installation altitude above sea level, max. | 5 000 m; Restrictions for installation altitudes > 2 000 m, see manual |
| Absolute humidity: dew point, min. | -60 °C; suitable for dry room applications |
| ET-Connection: via BU/BA Send | No |
|---|
| Width | 35 mm |
|---|---|
| Height | 147 mm |
| Depth | 129 mm |
| eClass | 14 27-24-26-08 |
|---|---|
| ETIM | 10 EC001604 |
| IDEA | 4 3564 |
| UNSPSC | 15 32-15-17-05 |
| Net weight | 0.28 kg |
|---|---|
| Country of origin | DE |
| Shipping weight | 0.78 kg |
| Ships from | Türkiye |
| Dispatch | 18 Nov |
| Stock | In stock |
