Part number
6ES7155-5AA00-0AC0
Model no
IM 155-5 PN HF
$596.16 In stock · 12 Dispatch Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days. · From Türkiye
Manufacturer phase-out

Siemens has announced the end of 6ES7155-5AA00-0AC0

Once production ends, supply depends on remaining stock.

No replacement announced yet. Tell us the application and we will propose an alternative.

SIMATIC ET 200MP

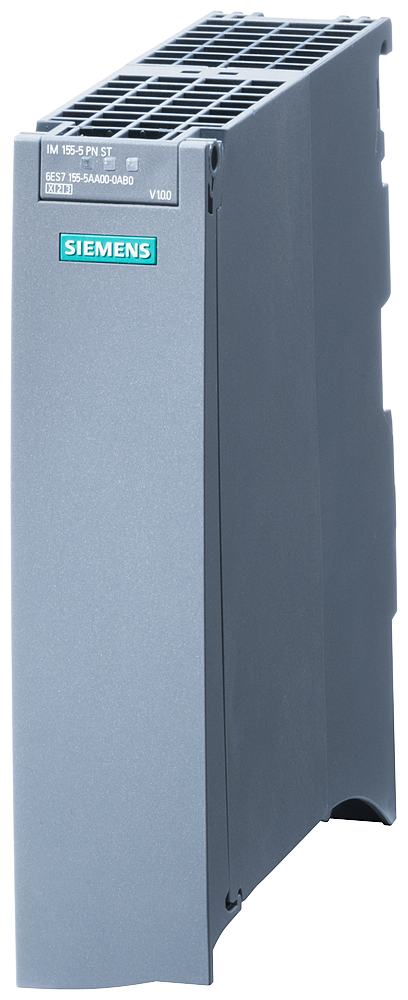

Siemens 6ES7155-5AA00-0AC0 ET 200MP IM 155-5 PN HF PROFINET 2-Port Remote I/O Interface Module

Siemens ET 200MP IM 155-5 PN HF PROFINET interface module, 24V DC, 2-port switch, IRT, MRP, shared device with 4 controllers.

Rated operational voltage
24 V AC
Motor power
Yes; 14 W kW
Communication
PROFINET IO, MRP, IRT, PROFIsafe, Open IE, S2 system redundancy
EAN
4047623402237
Description

About the IM 155-5 PN HF

The Siemens 6ES7155-5AA00-0AC0 is a SIMATIC ET 200MP PROFINET interface module (IM 155-5 PN HF) that connects up to 30 I/O modules to a PROFINET IO controller through an integrated 2-port switch. It runs on 24V DC, supports isochronous mode down to 250 µs, PROFINET system redundancy (S2), and shared device operation with up to four IO controllers.

Selection Notes

The HF (High Feature) designation on this interface module adds isochronous real-time (IRT) support down to a 250 µs bus cycle and PROFINET system redundancy (S2), capability the lower-feature ET 200MP interface modules skip - choose this variant when the line needs motion-synchronized I/O or an S7-1500R/H redundant controller pair. The integrated 2-port switch removes the need for a separate PROFINET switch when daisy-chaining stations, and shared-device support for up to four IO controllers lets one ET 200MP station split its modules across independent PLCs.

Applications

Used as the head module for SIMATIC ET 200MP I/O stations in PROFINET-based machine and process automation, particularly where isochronous drive synchronization, media-redundant ring topologies (MRP), or S7-1500H/R controller redundancy are required.

Specification

Full specification

116 values · Last verified 01 Nov 2026

General information 15

Product type designation IM 155-5 PN HF
HW functional status From FS03
Firmware version V4.4
FW update possible Yes
Vendor identification (VendorID) 002 AH
Device identifier (DeviceID) 0X0312
Product function: I&M data Yes; I&M0 to I&M3
Product function: Module swapping during operation (hot swapping) Yes; In combination with active backplane bus
Product function: Isochronous mode Yes
Product function: IRT Yes
Product function: Tool changer No
Product function: Local coupling, IO data No
Engineering with: STEP 7 TIA Portal configurable/integrated from version V16
Engineering with: STEP 7 configurable/integrated from version use GSD file
Engineering with: PROFINET from GSD version/GSD revision GSDML V2.3

Configuration control 1

via dataset Yes

Supply voltage 6

Rated value (DC) 24 V
permissible range, lower limit (DC) 19.2 V
permissible range, upper limit (DC) 28.8 V
Reverse polarity protection Yes
Short-circuit protection Yes
Mains buffering: Mains/voltage failure stored energy time 5 ms
Show all 116 specifications ↓ Show less ↑94 more values in Identification, Input current, Power, Power loss, Address area, Hardware configuration, Interfaces, 1. Interface, Interface types, Protocols, Isochronous mode, Interrupts/diagnostics/status information, Potential separation, Permissible potential difference, Isolation, Standards, approvals, certificates, Security, Ambient conditions, Connection method, Dimensions, Weights, EClass 6 27-24-26-08, For use in hazard-Maritime application ous locations, Logistics.

Identification 8

Part number 6ES7155-5AA00-0AC0
Type designation IM 155-5 PN HF
Brand Siemens
Condition New, factory sealed
Source Siemens and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Phase-out announced by the manufacturer
EAN 4047623402237

Input current 4

Current consumption (rated value) 0.2 A; at 24 V DC and without load
Current consumption, max. 1.2 A
Inrush current, max. 9 A
I2t 0.09 A2·s

Power 2

Infeed power to the backplane bus 14 W
Power consumption from the backplane bus 2.3 W; in case of operation with separate system power supply to the left of IM

Power loss 1

Power loss, typ. 4.5 W

Address area 2

Address space per module: Address space per module, max. 256 byte; For input and output data respectively
Address space per station: Address space per station, max. 512 byte; For input and output data respectively

Hardware configuration 5

Integrated power supply Yes; 14 W
System power supply can be plugged in to left of IM Yes; only with design with U-connectors
Number of permissible power segments 3; incl. interface module
Rack: Modules per rack, max. 30; I/O modules
Submodules: Number of submodules per station, max. 256; 9 per I/O module

Interfaces 2

Transmission procedure 100BASE-TX
Number of PROFINET interfaces 1; 2 ports (switch)

1. Interface 13

Interface types: RJ 45 (Ethernet) Yes
Interface types: Number of ports 2
Interface types: integrated switch Yes
Interface types: BusAdapter (PROFINET) No
Protocols: PROFINET IO Device Yes
Protocols: Open IE communication Yes
Protocols: Media redundancy Yes; PROFINET MRP client / HRP client
PROFINET IO Device Services: IRT Yes; 250 µs to 4 ms in 125 µs frame
PROFINET IO Device Services: Dynamic Frame Packing (DFP) No
PROFINET IO Device Services: PROFIenergy No
PROFINET IO Device Services: Prioritized startup Yes
PROFINET IO Device Services: Shared device Yes
PROFINET IO Device Services: Number of IO Controllers with shared device, max. 4

Interface types 4

RJ 45 (Ethernet): Transmission procedure PROFINET with 100 Mbit/s full duplex (100BASE-TX)
RJ 45 (Ethernet): 100 Mbps Yes
RJ 45 (Ethernet): Autonegotiation Yes
RJ 45 (Ethernet): Autocrossing Yes

Protocols 15

Supports protocol for PROFINET IO Yes
PROFIsafe Yes
PROFIBUS No
EtherNet/IP No
Modbus TCP No
Redundancy mode: PROFINET system redundancy (S2) Yes; NAP S2
Redundancy mode: on S7-1500R/H Yes
Redundancy mode: on S7-400H Yes; use GSD file
Redundancy mode: PROFINET system redundancy (R1) No
Redundancy mode: H-Sync forwarding Media redundancy Yes
Redundancy mode: MRP Yes
Redundancy mode: MRPD Yes
Open IE communication: TCP/IP Yes
Open IE communication: SNMP Yes
Open IE communication: LLDP Yes

Isochronous mode 5

Equidistance Yes
shortest clock pulse 250 µs
max. cycle 4 ms
Bus cycle time (TDP), min. 250 µs
Jitter, max. 1 µs

Interrupts/diagnostics/status information 7

Status indicator Yes
Alarms Yes
Diagnostics function Yes
Diagnostics indication LED: RUN LED Yes; green LED
Diagnostics indication LED: ERROR LED Yes; red LED
Diagnostics indication LED: MAINT LED Yes; Yellow LED
Diagnostics indication LED: Connection display LINK TX/RX Yes; 2x green-yellow LEDs

Potential separation 3

between backplane bus and electronics No
between PROFINET and all other circuits Yes; 1500 V AC (type test)
between supply and all other circuits No

Permissible potential difference 1

between different circuits Safety extra low voltage SELV

Isolation 1

Isolation tested with 707 V DC (type test)

Standards, approvals, certificates 1

Network loading class 3

Security 1

PROFINET Security Class 0

Ambient conditions 4

Ambient temperature during operation: horizontal installation, min. -25 °C; from FS04
Ambient temperature during operation: vertical installation, min. -25 °C; from FS04
Altitude during operation relating to sea level: Installation altitude above sea level, max. 5 000 m; Restrictions for installation altitudes > 2 000 m, see manual
Absolute humidity: dew point, min. -60 °C; suitable for dry room applications

Connection method 1

ET-Connection: via BU/BA Send No

Dimensions 3

Width 35 mm
Height 147 mm
Depth 129 mm

Weights 1

Weight, approx. 350 g

EClass 6 27-24-26-08 3

ETIM 10 EC001604
IDEA 4 3564
UNSPSC 15 32-15-17-05

For use in hazard-Maritime application ous locations 1

CCC-Ex NK / Nippon Kaiji Ky- okai

Logistics 6

Net weight 0.351 kg
Country of origin DE
Shipping weight 0.851 kg
Ships from Türkiye
Dispatch 18 Nov
Stock In stock

Source: manufacturer data · Last verified: 01 Nov 2026

Documents

Documents for 6ES7155-5AA00-0AC0

No documents are on file for this part yet.

Ask us for the datasheet
Quick answers

Questions about the IM 155-5 PN HF

Which supply voltage is IM 155-5 PN HF rated for?

The rated operational voltage of IM 155-5 PN HF is 24 V AC.

What motor power is IM 155-5 PN HF rated for?

The rated motor power of IM 155-5 PN HF is Yes; 14 W kW.

What is the HS code of IM 155-5 PN HF for customs?

The tariff (HS) code on file for IM 155-5 PN HF is 85176200.

What is the EAN of IM 155-5 PN HF?

The EAN (GTIN) of IM 155-5 PN HF is 4047623402237.

Where does IM 155-5 PN HF ship from, and how fast?

IM 155-5 PN HF ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
