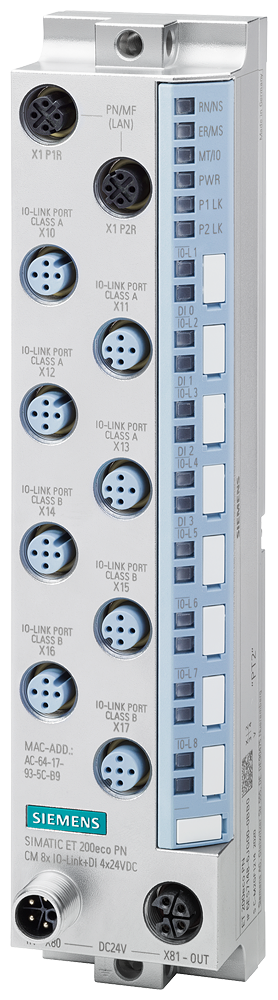

The Siemens 6ES7148-6JG00-0BB0 is a SIMATIC ET 200eco PN combination module with 8 IO-Link ports and 4 standard digital inputs, in an IP67/IP69K M12-L housing for direct machine mounting. It runs PROFINET IO with EtherNet/IP and Modbus TCP together, supports S2 system redundancy, MRP and shared-device access for up to 2 controllers, and reads back per-port diagnostics for each connected IO-Link device.
With 8 IO-Link ports against the sibling combination module's smaller IO-Link count and 12 standard DIQ, this module suits stations dominated by IO-Link sensors and actuators rather than mixed discrete wiring; choose the DIQ-heavy sibling instead when more than 4 conventional digital I/O points are needed. The 4 standard digital inputs are fixed inputs, not parameterizable as outputs, so any switching function still has to go through the IO-Link ports or a separate output module. IP67/IP69K sealing and the shared 2-controller, dual-protocol support, PROFINET plus EtherNet/IP or Modbus TCP, make it usable on machines built for more than one automation platform without a second I/O drop.
| HW functional status | FS05 |
|---|---|
| Firmware version | V5.2.x |
| FW update possible | Yes |
| Vendor identification (VendorID) | 002 AH |
| Device identifier (DeviceID) | 0306 H |
| Manufacturer ID according to ODVA (VendorID) | 04E3H |
| Device ID according to ODVA (Product code) | 0FA9H |
| Product function: I&M data | Yes; I&M0 to I&M3, I&M5 |
| Product function: Isochronous mode | No |
| Product function: IRT | Yes |
| Product function: Prioritized startup | Yes |
| Engineering with: STEP 7 TIA Portal configurable/integrated from version | STEP 7 V17 or higher with HSP 0363 |
| Engineering with: PROFINET from GSD version/GSD revision | GSDML V2.4.x |
| Engineering with: Multi Fieldbus Configuration Tool (MFCT) | from V1.3 SP1 |
| Operating mode: IO-Link | Yes |
| Operating mode: DI | Yes |
| Operating mode: DQ | No |
| Operating mode: MSI | No |
| Operating mode: MSO | No |
| power supply according to NEC Class 2 required | No |
|---|---|
| Load voltage 1L+: Rated value (DC) | 24 V |
| Load voltage 1L+: permissible range, lower limit (DC) | 20.4 V |
| Load voltage 1L+: permissible range, upper limit (DC) | 28.8 V |
| Load voltage 1L+: Reverse polarity protection | Yes; against destruction |
| Load voltage 2L+: Rated value (DC) | 24 V |
| Load voltage 2L+: permissible range, lower limit (DC) | 20.4 V |
| Load voltage 2L+: permissible range, upper limit (DC) | 28.8 V |
| Load voltage 2L+: Reverse polarity protection | Yes; Against destruction; encoder power supply outputs applied with reversed polarity |
| Current consumption (rated value) | 70 mA; without load |
|---|---|
| from load voltage 1L+ (unswitched voltage) | 12 A; Maximum value |
| from load voltage 2L+, max. | 12 A; Maximum value |
| Part number | 6ES7148-6JG00-0BB0 |
|---|---|
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4047623410980 |
| ETIM class | EC001604 |
| eCl@ss | 27242608 |
| Number of outputs | 8 |
|---|---|
| 24 V encoder supply: Short-circuit protection | Yes; per channel, electronic |
| 24 V encoder supply: Output current, max. | 0.5 A; Per channel |
| Power loss, typ. | 5.5 W |
|---|
| Address space per module: Inputs | 264 byte; + 8 bytes for QI information |
|---|---|
| Address space per module: Outputs | 256 byte |
| Submodules: Number of configurable submodules, max. | 9 |
|---|
| Number of digital inputs | 4 |
|---|---|
| Sourcing/sinking input | P-reading |
| Input characteristic curve in accordance with IEC 61131, type 3 | Yes |
| Number of simultaneously controllable inputs all mounting positions: up to 60 °C, max. | 4 |
| Input voltage: Rated value (DC) | 24 V |
| Input voltage: for signal "0" | -3 to +5V |
| Input voltage: for signal "1" | +11 to +30V |
| Input current: for signal "1", typ. | 2.5 mA |
| Input delay (for rated value of input voltage) for standard inputs: at "0" to "1", max. | typically 3 ms |
| Cable length: unshielded, max. | 30 m |
| Number of ports | 8 |
|---|---|
| of which simultaneously controllable | 8 |
| IO-Link protocol 1.0 | Yes |
| IO-Link protocol 1.1 | Yes |
| Transmission rate | 4.8 kBaud (COM1); 38.4 kBaud (COM2), 230 kBaud (COM3) |
| Cycle time, min. | 2 ms |
| Size of process data, input per port | 33 byte |
| Size of process data, input per module | 264 byte |
| Size of process data, output per port | 32 byte |
| Size of process data, output per module | 256 byte |
| Memory size for device parameter | 2 kbyte; for each port |
| Master backup | possible with LIOLink_Master function block |
| Configuration without S7-PCT | Possible; autostart/manual function |
| Cable length unshielded, max. | 20 m |
| Operating modes: IO-Link | Yes |
| Operating modes: DI | Yes |
| Operating modes: DQ | Yes; max. 100 mA |
| Connection of IO-Link devices: Port type A | Yes; via 3-core cable |
| Connection of IO-Link devices: Port type B | Yes; additional device supply: max. 2 A per port, max. 6 A per module |
| Connection of IO-Link devices: via three-wire connection | Yes |
| Transmission procedure | 100BASE-TX |
|---|---|
| Number of PROFINET interfaces | 1 |
| Interface type | PROFINET with 100 Mbit/s full duplex (100BASE-TX) |
|---|---|
| Interface types: M12 port | Yes; 2x M12, 4-pin, D-coded |
| Interface types: Number of ports | 2 |
| Interface types: integrated switch | Yes |
| Protocols: PROFINET IO Device | Yes |
| Protocols: Open IE communication | Yes |
| PROFINET IO Device Services: IRT | Yes; 250 µs to 4 ms in 125 µs frame |
| PROFINET IO Device Services: Prioritized startup | Yes |
| PROFINET IO Device Services: Shared device | Yes |
| PROFINET IO Device Services: Number of IO Controllers with shared device, max. | 2 |
| M12 port: Autonegotiation | Yes |
|---|---|
| M12 port: Autocrossing | Yes |
| M12 port: Transmission rate, max. | 100 Mbit/s |
| Supports protocol for PROFINET IO | Yes |
|---|---|
| PROFIsafe | No |
| EtherNet/IP | Yes |
| Modbus TCP | Yes |
| Redundancy mode: PROFINET system redundancy (S2) | Yes |
| Redundancy mode: on S7-1500R/H | Yes |
| Redundancy mode: on S7-400H | Yes |
| Redundancy mode: PROFINET system redundancy (R1) | No |
| Redundancy mode: H-Sync forwarding Media redundancy | Yes |
| Redundancy mode: MRP | Yes |
| Redundancy mode: MRPD | No |
| EtherNet/IP Services: CIP Implicit Messaging | Yes |
| EtherNet/IP Services: CIP Explicit Messaging | Yes |
| EtherNet/IP Services: CIP Safety | No |
| EtherNet/IP Services: Shared device | Yes; 2x EtherNet/IP Scanner |
| EtherNet/IP Services: Number of scanners with shared device, max. Updating times | 2 |
| EtherNet/IP Services: Requested Packet Interval (RPI) Redundancy mode | 2 ms |
| EtherNet/IP Services: DLR (Device Level Ring) Address area | No |
| EtherNet/IP Services: Address space per module, max. | 300 byte |
| EtherNet/IP Services: LargeForwardOpen (Class3) | No |
| Modbus TCP Services: read coils (code=1) | Yes |
| Modbus TCP Services: read discrete inputs (code=2) | Yes |
| Modbus TCP Services: Read Holding Registers (Code=3) | Yes |
| Modbus TCP Services: write single coil (code=5) | Yes |
| Modbus TCP Services: write multiple coils (code=15) | Yes |
| Modbus TCP Services: Write Multiple Registers (Code=16) | Yes |
| Modbus TCP Services: Parameter change by master | No |
| Modbus TCP Services: Modbus TCP Security Protocol Address space per station | No |
| Modbus TCP Services: Address space per station, max. | 300 byte |
| Modbus TCP Services: Access-consistent address space Updating time | 2 byte |
| Modbus TCP Services: I/O request interval Connections | 2 ms |
| Modbus TCP Services: number of connections per device | 12 |
| Open IE communication: TCP/IP | Yes; (only EtherNet/IP or Modbus TCP) |
| Open IE communication: SNMP | Yes |
| Open IE communication: LLDP | Yes |
| Open IE communication: ARP | Yes |
| Alarms: Diagnostic alarm | Yes; Parameterizable |
|---|---|
| Alarms: Maintenance interrupt | Yes; Parameterizable |
| Diagnoses: Diagnostic information readable | Yes |
| Diagnoses: Monitoring the supply voltage | Yes |
| Diagnoses: parameterizable | Yes |
| Diagnoses: Wire break | Yes |
| Diagnoses: Short-circuit encoder supply | Yes; Per channel |
| Diagnostics indication LED: RUN LED | Yes; green LED |
| Diagnostics indication LED: ERROR LED | Yes; red LED |
| Diagnostics indication LED: MAINT LED | Yes; Yellow LED |
| Diagnostics indication LED: Monitoring of the supply voltage (PWR-LED) | Yes; green LED |
| Diagnostics indication LED: NS LED | Yes; green/red LED |
| Diagnostics indication LED: MS LED | Yes; green/red LED |
| Diagnostics indication LED: IO LED | Yes; red/green/yellow LEDs |
| Diagnostics indication LED: Channel status display | Yes; green LED |
| Diagnostics indication LED: for channel diagnostics | Yes; red LED |
| Diagnostics indication LED: For load voltage monitoring | Yes; green LED |
| Diagnostics indication LED: Connection display LINK TX/RX | Yes; green LED, only link |
| between the load voltages | Yes |
|---|---|
| between Ethernet and electronics | Yes |
| Potential separation channels: between the channels | No |
| Potential separation channels: between the channels and the power supply of the electronics | No |
| tested with: 24 V DC circuits | 707 V DC (type test) |
|---|---|
| tested with: Test voltage for interface, rms value [Vrms] | 1 500 V; According to IEEE 802.3 |
| IP degree of protection | IP65/67/69K |
|---|
| Suitable for safety-related tripping of standard modules | Yes; from FS01 |
|---|---|
| Highest safety class achievable for safety-related tripping of standard modules: Performance level according to ISO 13849-1 | PL d |
| Use in hazardous areas: Explosion protection category for gas | ATEX, UKEX, IECEx, CCCEx for Zone 2 |
| Use in hazardous areas: Explosion protection category for dust | ATEX, UKEX, IECEx, CCCEx for Zone 22 |
| signed firmware update | Yes |
|---|---|
| securely removing data | Yes |
| Ambient temperature during operation: min. | -40 °C |
|---|---|
| Ambient temperature during operation: max. | 60 °C |
| Altitude during operation relating to sea level: Ambient air temperature-barometric pressure-altitude | Up to max. 5 000 m, at installation height > 2 000 m additional restrictions, see manual for details |
| Design of electrical connection | 4/5-pin M12 circular connectors |
|---|---|
| Design of electrical connection for the inputs and outputs | M12, 5-pin, A-coded |
| Design of electrical connection for supply voltage | M12, 4-pin, L-coded |
| Width | 45 mm |
|---|---|
| Height | 200 mm |
| Depth | 48 mm |
| Weight, approx. | 780 g |
|---|
| China RoHS Manufacturer Declara- CCC-Ex tion | Food, Pharmaceut- |
|---|---|
| For use in hazardous locations Maritime application other | ical, Medical |
| Net weight | 0.827 kg |
|---|---|
| Country of origin | DE |
| Shipping weight | 1.327 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
