Part number
6ES7148-4FA00-0AB0
$760.15 On request Dispatch — · From TürkiyeGet a Quote
SIMATIC ET 200pro

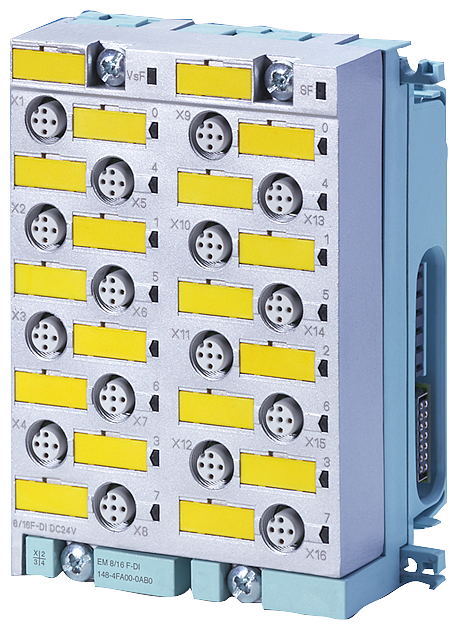

Siemens 6ES7148-4FA00-0AB0 SIMATIC ET 200pro F-DI 8/16 24V DC PROFIsafe Fail-safe I/O Module

Siemens fail-safe F-DI module for SIMATIC ET 200pro, 16 safety digital inputs, 24V DC, PROFIsafe, SIL3 / PL e.

Rated operational voltage
24 V DC
Communication
PROFIsafe
EAN
4025515073062
Description

About the 6ES7148-4FA00-0AB0

The Siemens 6ES7148-4FA00-0AB0 is a fail-safe F-DI electronic module for the SIMATIC ET 200pro distributed I/O system, providing 16 safety-related 24 V DC digital inputs, configurable as 8 or 16, over PROFIsafe. It reaches Performance Level e per ISO 13849-1 and SIL 3 per IEC 61508, reading safety sensors directly into a fail-safe PROFIBUS or PROFINET segment.

Selection Notes

The 8/16 F-DI designation means the module can be configured for 8 or 16 fail-safe inputs depending on channel grouping; pick the 16-input configuration when wiring density on the ET 200pro station is the limiting factor. At PL e / SIL 3 it is rated for the highest commonly specified safety integrity level, so it fits emergency-stop and guard-monitoring circuits without adding external safety relays. Its 90 mm module width is wider than the standard 45 mm ET 200pro I/O modules because of the redundant safety logic inside.

Applications

F-DI modules like this one typically monitor emergency-stop pushbuttons, safety light curtains and guard-door switches on machinery where the safety function is decided close to the field device rather than in a central safety controller. Because the PROFIsafe telegram carries both the process value and its safety checksum over the same standard bus, the 16 inputs are wired straight into the ET 200pro station without a dedicated safety cable run back to the controller.

Specification

Full specification

28 values · Last verified 01 Nov 2026

Supply voltage 3

Rated value (DC) 24 V
Reverse polarity protection Yes
power supply according to NEC Class 2 required No

Input current 2

from supply voltage 1L+, max. 120 mA; Typical
from backplane bus 3.3 V DC, max. 20 mA

Power loss 1

Power loss, typ. 4.5 W
Show all 28 specifications ↓ Show less ↑22 more values in Identification, Digital inputs, Standards, approvals, certificates, Dimensions, Logistics.

Identification 9

Part number 6ES7148-4FA00-0AB0
Brand Siemens
Condition New, factory sealed
Source Siemens and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 4025515073062
ETIM class EC001599
eCl@ss 27242604

Digital inputs 2

Number of digital inputs 16
Input current: for signal "1", typ. 3.7 mA

Standards, approvals, certificates 2

Highest safety class achievable in safety mode: Performance level according to ISO 13849-1 e
Highest safety class achievable in safety mode: SIL acc. to IEC 61508 3

Dimensions 3

Width 90 mm
Height 130 mm
Depth 65 mm

Logistics 6

Net weight 0.303 kg
Country of origin DE
Shipping weight 0.803 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 01 Nov 2026

Documents

Documents for 6ES7148-4FA00-0AB0

No documents are on file for this part yet.

Ask us for the datasheet
Quick answers

Questions about the 6ES7148-4FA00-0AB0

Which supply voltage is 6ES7148-4FA00-0AB0 rated for?

The rated operational voltage of 6ES7148-4FA00-0AB0 is 24 V DC.

What is the HS code of 6ES7148-4FA00-0AB0 for customs?

The tariff (HS) code on file for 6ES7148-4FA00-0AB0 is 85389091.

What is the EAN of 6ES7148-4FA00-0AB0?

The EAN (GTIN) of 6ES7148-4FA00-0AB0 is 4025515073062.

Where does 6ES7148-4FA00-0AB0 ship from, and how fast?

6ES7148-4FA00-0AB0 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
