Once production ends, supply depends on remaining stock.
No replacement announced yet. Tell us the application and we will propose an alternative.

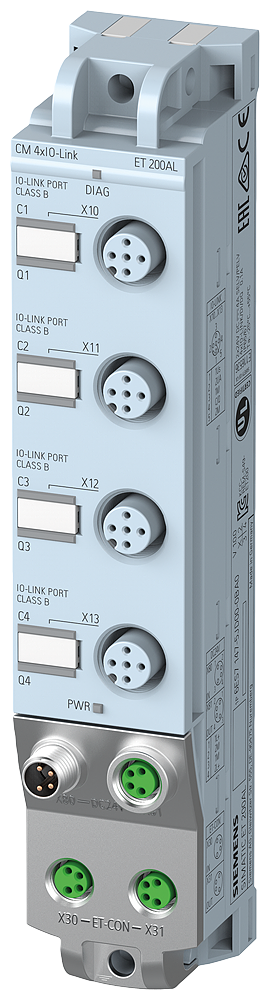

The Siemens 6ES7147-5JD00-0BA0 is a SIMATIC ET 200AL CM 4x IO-Link module with 4 IO-Link master ports, protocol 1.0/1.1, up to 230 kBaud, that can also operate as standard digital I/O, on M12 5-pole connectors. Rated IP65/67, it runs from a 24 V DC (20.4-28.8 V) supply and mounts directly on machinery without a control cabinet.
The module holds more process data per port than a single-channel IO-Link setup, 32 bytes in per port and up to 132 bytes total input, and supports master backup via the IO_LINK_MASTER function block, useful for tool-change stations that need fast device-parameter recovery. The -30 degC to 55 degC range and IP65/67 rating suit direct machine mounting, and support for safety-related tripping to PL d / SILCL 2 lets it feed an external safety relay from a standard I/O point.
Fits IO-Link sensor/actuator networks mounted directly on machinery in IP67 field locations, where device-parameter backup and cold-ambient operation down to -30 degC matter.
| Product type designation | CM 4x IO-Link |
|---|---|
| HW functional status | FS08 |
| Firmware version | V1.2.x |
| Product function: I&M data | Yes; I&M0 to I&M3 |
| Product function: Isochronous mode | No |
| Engineering with: STEP 7 TIA Portal configurable/integrated from version | STEP 7 V13 SP1 or higher |
| Engineering with: STEP 7 configurable/integrated from version | From V5.5 SP4 Hotfix 3 |
| Engineering with: PROFIBUS from GSD version/GSD revision | GSD as of Revision 5 |
| Engineering with: PROFINET from GSD version/GSD revision | GSDML V2.3.1 |
| Operating mode: IO-Link | Yes |
| Operating mode: DI | Yes |
| Operating mode: DQ | Yes; max. 100 mA |
| power supply according to NEC Class 2 required | No |
|---|---|
| Load voltage 1L+: Rated value (DC) | 24 V |
| Load voltage 1L+: permissible range, lower limit (DC) | 20.4 V |
| Load voltage 1L+: permissible range, upper limit (DC) | 28.8 V |
| Load voltage 1L+: Reverse polarity protection | Yes |
| Load voltage 2L+: Rated value (DC) | 24 V |
| Load voltage 2L+: permissible range, lower limit (DC) | 20.4 V |
| Load voltage 2L+: permissible range, upper limit (DC) | 28.8 V |
| Load voltage 2L+: Reverse polarity protection | Yes; against destruction; load increasing |
| Current consumption (rated value) | 40 mA; without load |
|---|---|
| from load voltage 1L+ (unswitched voltage) | 4 A; Maximum value |
| from load voltage 2L+, max. | 4 A; Maximum value |
| Part number | 6ES7147-5JD00-0BA0 |
|---|---|
| Type designation | CM 4x IO-Link |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Phase-out announced by the manufacturer |
| EAN | 4047623403531 |
| Number of outputs | 4 |
|---|---|
| 24 V encoder supply: Short-circuit protection | Yes; per module, electronic |
| 24 V encoder supply: Output current, max. | 1.4 A; Total current of all ports |
| Power loss, typ. | 2.6 W |
|---|
| Number of ports | 4 |
|---|---|
| of which simultaneously controllable | 4 |
| IO-Link protocol 1.0 | Yes |
| IO-Link protocol 1.1 | Yes |
| Transmission rate | 4.8 kBaud (COM1); 38.4 kBaud (COM2), 230 kBaud (COM3) |
| Size of process data, input per port | 32 byte |
| Size of process data, input per module | 132 byte |
| Size of process data, output per port | 32 byte |
| Size of process data, output per module | 128 byte |
| Memory size for device parameter | 2 kbyte; for each port |
| Master backup | Possible with function block IO_LINK_MASTER |
| Configuration without S7-PCT | Possible; autostart/manual function |
| Cable length unshielded, max. | 20 m |
| Operating modes: IO-Link | Yes |
| Operating modes: DI | Yes |
| Operating modes: DQ | Yes; max. 100 mA |
| Connection of IO-Link devices: Port type A | Yes; via 3-core cable |
| Connection of IO-Link devices: Port type B | Yes; Additional device supply: 1.6 A total current of all ports |
| Alarms: Diagnostic alarm | Yes; Parameterizable |
|---|---|
| Diagnoses: Monitoring the supply voltage | Yes |
| Diagnoses: Wire break | Yes |
| Diagnoses: Short-circuit | Yes |
| Diagnostics indication LED: Channel status display | Yes; green LED |
| Diagnostics indication LED: for module diagnostics | Yes; green/red LED |
| Diagnostics indication LED: For load voltage monitoring | Yes; green LED |
| between the load voltages | Yes |
|---|---|
| Potential separation channels: between the channels | No |
| Potential separation channels: between the channels and backplane bus | Yes |
| Potential separation channels: between the channels and the power supply of the electronics | No |
| Isolation tested with | 707 V DC (type test) |
|---|
| IP degree of protection | IP65/67 |
|---|
| Suitable for safety-related tripping of standard modules | Yes; from FS01 |
|---|---|
| Highest safety class achievable for safety-related tripping of standard modules: Performance level according to ISO 13849-1 | PL d |
| Ambient temperature during operation: min. | -30 °C |
|---|---|
| Ambient temperature during operation: max. | 55 °C |
| Design of electrical connection for the inputs and outputs | M12, 5-pole |
|---|---|
| Design of electrical connection for supply voltage | M8, 4-pole |
| ET-Connection: ET-Connection | M8, 4-pin, shielded |
| eClass | 16 27-24-26-08 |
|---|---|
| ETIM | 10 EC001604 |
| IDEA | 4 3564 |
| UNSPSC | 15 32-15-17-05 |
| Maritime application NK / Nippon Kaiji Ky- | okai |
|---|
| Net weight | 0.169 kg |
|---|---|
| Country of origin | DE |
| Shipping weight | 0.669 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 01 Nov 2026
No documents are on file for this part yet.
Ask us for the datasheetThe tariff (HS) code on file for CM 4x IO-Link is 85176200.
The EAN (GTIN) of CM 4x IO-Link is 4047623403531.
CM 4x IO-Link ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
