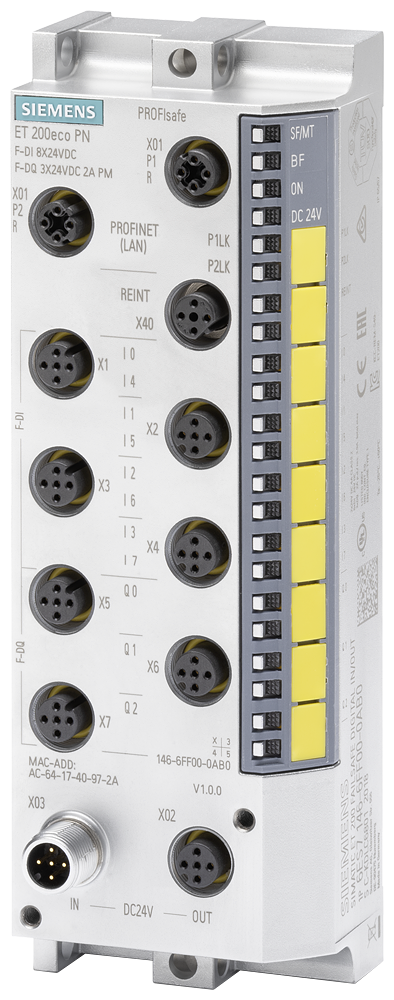

The Siemens 6ES7146-6FF00-0AB0 is a SIMATIC ET 200eco PN fail-safe I/O module with 8 safety digital inputs (24 V DC) and 3 safety digital outputs (24 V DC, 2 A), communicating via PROFIsafe over M12 PROFINET ports. It reaches Performance Level e per ISO 13849-1 and SIL 3 per IEC 61508, with IP65/67 protection and an eCoding plug-in connector.
Eight safety digital inputs and three safety digital outputs on one module let a single ET 200eco PN station cover both an E-stop/guard-door input group and a safety-rated output group up to 2 A per channel, without a separate F-DQ module. Two-channel wiring on 4 of the 8 inputs plus PROFIsafe communication reach SIL 3 / PL e; using the inputs single-channel caps the achievable rating at SIL 2. The 60 degC max operating temperature and IP65/67 rating suit direct machine mounting outside a cabinet.
Fits machine safety circuits needing PROFIsafe-integrated E-stop, guard-door, or light-curtain inputs combined with safety-rated 24 V outputs up to PL e / SIL 3, in IP67 field-mount locations.
| HW functional status | from FS01 |
|---|---|
| Firmware version | V1.0.0 |
| FW update possible | Yes |
| Vendor identification (VendorID) | 02 AH |
| Device identifier (DeviceID) | 0306 H |
| Product function: I&M data | Yes |
| Product function: Isochronous mode | No |
| Product function: IRT | No; module will participate within an IRT topology |
| Product function: Fast startup | No |
| Product function: Prioritized startup | No |
| Engineering with: STEP 7 TIA Portal configurable/integrated from version | V15 with HSP 204 |
| Engineering with: PROFINET from GSD version/GSD revision | GSDML V2.34 |
| Operating mode: DI | Yes |
| Operating mode: DQ | Yes |
| Rated value (DC) | 24 V |
|---|---|
| Reverse polarity protection | Yes |
| power supply according to NEC Class 2 required | Yes |
| Load voltage 1L+: Rated value (DC) | 24 V |
| Load voltage 1L+: permissible range, lower limit (DC) | 20.4 V |
| Load voltage 1L+: permissible range, upper limit (DC) | 28.8 V |
| Load voltage 1L+: Reverse polarity protection | Yes |
| Load voltage 2L+: Rated value (DC) | 24 V |
| Load voltage 2L+: permissible range, lower limit (DC) | 20.4 V |
| Load voltage 2L+: permissible range, upper limit (DC) | 28.8 V |
| Load voltage 2L+: Reverse polarity protection | Yes |
| Current consumption, typ. | 200 mA |
|---|---|
| from supply voltage 1L+, max. | 4 A |
| from load voltage 2L+, max. | 4 A |
| Part number | 6ES7146-6FF00-0AB0 |
|---|---|
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4047623409069 |
| ETIM class | EC001599 |
| eCl@ss | 27242604 |
| Number of outputs | 2; Vs |
|---|---|
| 24 V encoder supply: Short-circuit protection | Yes; electronic (response threshold 1.4 A to 4.5 A) |
| 24 V encoder supply: Output current, max. | 800 mA; per output |
| Power loss, typ. | 9 W |
|---|
| Address space per module: Inputs | 8 byte |
|---|---|
| Address space per module: Outputs | 6 byte |
| Number of digital inputs | 8; 8 (one-channel); 4 (two-channel) |
|---|---|
| Digital inputs, parameterizable | Yes |
| Input characteristic curve in accordance with IEC 61131, type 1 | Yes |
| Number of simultaneously controllable inputs all mounting positions: up to 60 °C, max. | 8 |
| Input voltage: Rated value (DC) | 24 V |
| Input voltage: for signal "0" | -30 V DC to +5 V DC |
| Input voltage: for signal "1" | 15 V DC to 30 V DC |
| Input delay (for rated value of input voltage) for standard inputs: parameterizable | Yes; 0.8 / 1.6 / 3.2 / 6.4 / 12.8 ms |
| Cable length: unshielded, max. | 30 m |
| Number of digital outputs | 3 |
|---|---|
| in groups of | 3 |
| Short-circuit protection | Yes; Electronic |
| Response threshold, typ. | 10 A |
| Limitation of inductive shutdown voltage to | PM-switching: Typ. -26 V to (-48 V) |
| Controlling a digital input | No |
| Switching capacity of the outputs: on lamp load, max. | 10 W |
| Output current: for signal "1" rated value | 2 A |
| Output current: for signal "1" permissible range, max. | 2.4 A |
| Output current: for signal "0" residual current, max. | 0.5 mA |
| Parallel switching of two outputs: for uprating | No |
| Parallel switching of two outputs: for redundant control of a load | No |
| Switching frequency: with resistive load, max. | 30 Hz |
| Switching frequency: with inductive load, max. | 0.1 Hz |
| Switching frequency: on lamp load, max. | 10 Hz |
| Total current of the outputs (per group) all mounting positions: up to 60 °C, max. | 3.9 A |
| Cable length: unshielded, max. | 30 m |
| Connectable encoders: 2-wire sensor | No |
|---|---|
| Connectable encoders: permissible quiescent current (2-wire sensor), max. | 0.5 mA |
| Transmission procedure | 100BASE-TX |
|---|---|
| Number of PROFINET interfaces | 1 |
| Interface types: M12 port | Yes |
|---|---|
| Interface types: integrated switch | Yes |
| Protocols: PROFINET IO Device | Yes |
| Protocols: Open IE communication | No |
| PROFINET IO Device Services: IRT | No; module will participate within an IRT topology |
| PROFINET IO Device Services: Prioritized startup | No |
| PROFINET IO Device Services: Shared device | No |
| M12 port: Autonegotiation | Yes |
|---|---|
| M12 port: Autocrossing | Yes |
| M12 port: Transmission rate, max. | 100 Mbit/s |
| Supports protocol for PROFINET IO | Yes |
|---|---|
| PROFINET CBA | No |
| PROFIsafe | Yes |
| EtherNet/IP | No |
| Modbus TCP | No |
| Redundancy mode: PROFINET system redundancy (S2) | Yes |
| Redundancy mode: PROFINET system redundancy (R1) | No |
| Redundancy mode: H-Sync forwarding Media redundancy | No |
| Redundancy mode: MRP | Yes |
| Redundancy mode: MRPD | No |
| Open IE communication: TCP/IP | No |
| Open IE communication: SNMP | Yes |
| Open IE communication: DCP | Yes |
| Open IE communication: LLDP | Yes |
| Open IE communication: ping | Yes |
| Open IE communication: ARP | Yes |
| Diagnostics function | Yes |
|---|---|
| Alarms: Diagnostic alarm | Yes |
| Diagnoses: Diagnostic information readable | Yes |
| Diagnoses: Monitoring the supply voltage | Yes; green "ON" LED |
| Diagnoses: Wire-break in actuator cable | Yes |
| Diagnoses: Wire-break in signal transmitter cable | Yes |
| Diagnoses: Short-circuit | Yes |
| Diagnoses: Short-circuit encoder supply | Yes |
| Diagnoses: Group error | Yes; Red/yellow "SF/MT" LED |
| between the load voltages | Yes |
|---|---|
| between load voltage and all other switching components | No |
| between Ethernet and electronics | Yes |
| Potential separation channels: between the channels | No |
| tested with: 24 V DC circuits | 707 V DC (type test) |
|---|---|
| tested with: Test voltage for interface, rms value [Vrms] | 1 500 V; According to IEEE 802.3 |
| IP degree of protection | IP65/67 |
|---|
| Suitable for safety-related tripping of standard modules | No |
|---|---|
| Highest safety class achievable in safety mode: Performance level according to ISO 13849-1 | PLe |
| Highest safety class achievable in safety mode: SIL acc. to IEC 61508 | SIL 2 (single-channel), SIL 3 (two-channel) |
| Highest safety class achievable in safety mode: SILCL according to IEC 62061 Probability of failure (for service life of 20 years and repair time of 100 hours) | SIL 3 |
| Highest safety class achievable in safety mode: Low demand mode: PFDavg in accordance with SIL2 | < 6.00E-04, 1oo1 evaluation |
| Highest safety class achievable in safety mode: High demand/continuous mode: PFH in accordance with SIL2 | < 1.00E-08 1/h, 1oo1 evaluation |
| Ambient temperature during operation: min. | -25 °C |
|---|---|
| Ambient temperature during operation: max. | 60 °C |
| Design of electrical connection | 4/5-pin M12 circular connectors |
|---|
| Width | 60 mm |
|---|---|
| Height | 175 mm |
| Depth | 49 mm |
| Weight, approx. | 940 g |
|---|
| Net weight | 0.994 kg |
|---|---|
| Country of origin | DE |
| Shipping weight | 1.494 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
