SIMATIC ET 200eco

Siemens 6ES7144-6JF00-0BB0 SIMATIC ET 200eco PN AI 8xRTD/TC IP69K Remote I/O Module

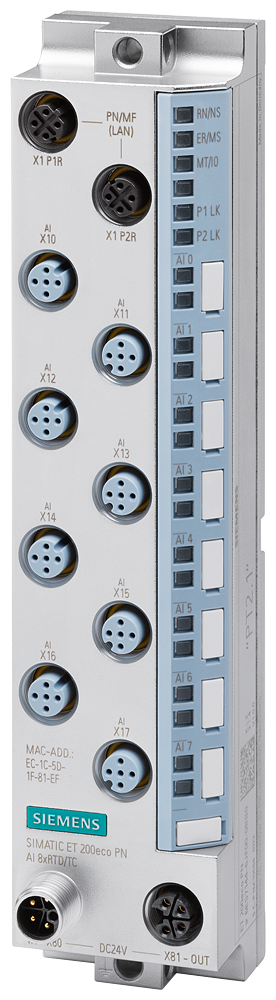

SIMATIC ET 200eco PN AI 8xRTD/TC, 8 channels, IP67/IP69K, PROFINET IO with MRP + S2 redundancy, shared device across 2 controllers.

Communication
PROFINET IO, IRT, MRP, S2 redundancy, shared device
EAN
4047623411673
Description

About the 6ES7144-6JF00-0BB0

The Siemens 6ES7144-6JF00-0BB0 is a SIMATIC ET 200eco PN module with 8 RTD/thermocouple analog inputs on M12-L PROFINET connectors, offering 16-bit resolution and channel-level wire-break diagnostics across a wide RTD and thermocouple range. It supports PROFINET IO with shared device operation across 2 controllers, MRP media redundancy, and S2 system redundancy, and it carries IP67/IP69K protection for washdown environments.

Selection Notes

Eight RTD/thermocouple channels on one module cover twice the measurement points per PROFINET node of a 4-channel analog module, reducing station count where sensor density is high. S2 system redundancy plus MRP media redundancy keep the module reachable through a controller or cable fault, and shared-device operation lets two PROFINET controllers address it at once. IP67/IP69K protection adds washdown resistance for food, beverage, or high-pressure cleaning duty cycles.

Applications

Suited to distributed temperature monitoring in washdown or hygienic areas needing IP69K protection, and PROFINET networks that require S2 redundancy and media redundancy for uptime.

Specification

Full specification

207 values · Last verified 01 Nov 2026

General information 16

HW functional status FS03
Firmware version V5.1.x
FW update possible Yes
Vendor identification (VendorID) 002 AH
Device identifier (DeviceID) 0306 H
Manufacturer ID according to ODVA (VendorID) 04E3H
Device ID according to ODVA (Product code) 0 FAAH
Product function: I&M data Yes; I&M0 to I&M3
Product function: Isochronous mode No
Product function: IRT Yes
Product function: Prioritized startup Yes
Product function: Measuring range scalable Yes
Engineering with: STEP 7 TIA Portal configurable/integrated from version STEP 7 V17 or higher with HSP 0369
Engineering with: PROFINET from GSD version/GSD revision GSDML V2.4.x
Engineering with: Multi Fieldbus Configuration Tool (MFCT) from V1.3 SP1
Operating mode: MSI Yes

CiR - Configuration in RUN 1

Calibration possible in RUN Yes

Supply voltage 5

power supply according to NEC Class 2 required No
Load voltage 1L+: Rated value (DC) 24 V
Load voltage 1L+: permissible range, lower limit (DC) 20.4 V
Load voltage 1L+: permissible range, upper limit (DC) 28.8 V
Load voltage 1L+: Reverse polarity protection Yes; against destruction
Show all 207 specifications ↓ Show less ↑185 more values in Identification, Input current, Power loss, Address area, Hardware configuration, Analog inputs, Analog value generation for the inputs, Encoder, Errors/accuracies, Interfaces, 1. Interface, Interface types, Protocols, Interrupts/diagnostics/status information, Potential separation, Isolation, Degree and class of protection, Standards, approvals, certificates, Security, Ambient conditions, Connection method, Dimensions, Weights, Logistics.

Identification 9

Part number 6ES7144-6JF00-0BB0
Brand Siemens
Condition New, factory sealed
Source Siemens and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 4047623411673
ETIM class EC001596
eCl@ss 27242601

Input current 3

Current consumption (rated value) 85 mA; without load
from load voltage 1L+ (unswitched voltage) 12 A; Maximum value
from load voltage 2L+, max. 12 A; Maximum value

Power loss 1

Power loss, typ. 6.3 W

Address area 1

Address space per module: Inputs 16 byte; + 1 byte for QI information

Hardware configuration 1

Submodules: Number of configurable submodules, max. 2

Analog inputs 46

Number of analog inputs 8
For voltage measurement 8
For resistance/resistance thermometer measurement 8
For thermocouple measurement 8
permissible input voltage for voltage input (destruction limit), max. 24 V
Constant measurement current for resistance-type transmitter, typ. 0.7 mA
Cycle time (all channels), min. Sum of the basic conversion times and additional processing times (depending on the parameterization of the active channels); for line compensation in case of a three-wire connection, an additional cycle is necessary
Technical unit for temperature measurement adjustable Yes; Degrees Celsius / degrees Fahrenheit / Kelvin
Input ranges (rated values), voltages: -80 mV to +80 mV Yes; 16 bit incl. sign
Input ranges (rated values), voltages: Input resistance (-80 mV to +80 mV) 10 MΩ
Input ranges (rated values), thermocouples: Type B Yes; 16 bit incl. sign
Input ranges (rated values), thermocouples: Input resistance (Type B) 10 MΩ
Input ranges (rated values), thermocouples: Type C Yes; 16 bit incl. sign
Input ranges (rated values), thermocouples: Type E Yes; 16 bit incl. sign
Input ranges (rated values), thermocouples: Type J Yes; 16 bit incl. sign
Input ranges (rated values), thermocouples: Type K Yes; 16 bit incl. sign
Input ranges (rated values), thermocouples: Type L Yes; 16 bit incl. sign
Input ranges (rated values), thermocouples: Type N Yes; 16 bit incl. sign
Input ranges (rated values), thermocouples: Type R Yes; 16 bit incl. sign
Input ranges (rated values), thermocouples: Type S Yes; 16 bit incl. sign
Input ranges (rated values), thermocouples: Type T Yes; 16 bit incl. sign
Input ranges (rated values), thermocouples: Type U Yes; 16 bit incl. sign
Input ranges (rated values), resistance thermometer: Ni 100 Yes; Standard/climate
Input ranges (rated values), resistance thermometer: Input resistance (Ni 100) 10 MΩ
Input ranges (rated values), resistance thermometer: Ni 1000 Yes; Standard/climate
Input ranges (rated values), resistance thermometer: Ni 120 Yes; Standard/climate
Input ranges (rated values), resistance thermometer: Ni 200 Yes; Standard/climate
Input ranges (rated values), resistance thermometer: Ni 500 Yes; Standard/climate
Input ranges (rated values), resistance thermometer: Pt 100 Yes; Standard/climate
Input ranges (rated values), resistance thermometer: Pt 1000 Yes; Standard/climate
Input ranges (rated values), resistance thermometer: Pt 200 Yes; Standard/climate
Input ranges (rated values), resistance thermometer: Pt 500 Yes; Standard/climate
Input ranges (rated values), resistors: 0 to 150 ohms Yes
Input ranges (rated values), resistors: Input resistance (0 to 150 ohms) 10 MΩ
Input ranges (rated values), resistors: 0 to 300 ohms Yes
Input ranges (rated values), resistors: Input resistance (0 to 300 ohms) 10 MΩ
Input ranges (rated values), resistors: 0 to 600 ohms Yes
Input ranges (rated values), resistors: Input resistance (0 to 600 ohms) 10 MΩ
Input ranges (rated values), resistors: 0 to 3000 ohms Yes
Input ranges (rated values), resistors: 0 to 6000 ohms Yes
Thermocouple (TC) Temperature compensation: Parameterizable Yes
Thermocouple (TC) Temperature compensation: internal temperature compensation Yes
Thermocouple (TC) Temperature compensation: external temperature compensation with compensations socket Yes
Thermocouple (TC) Temperature compensation: dynamic reference temperature value Yes
Thermocouple (TC) Temperature compensation: fixed reference temperature Yes
Cable length: shielded, max. 30 m

Analog value generation for the inputs 12

Analog value display SIMATIC S7 format
Measurement principle integrating
Integration and conversion time/resolution per channel: Resolution with overrange (bit including sign), max. 16 bit
Integration and conversion time/resolution per channel: Integration time, parameterizable Yes; channel by channel
Integration and conversion time/resolution per channel: Basic conversion time, including integration time (ms) 4.50 / 21.5 (54) / 24 (64) / 64 (184)
Integration and conversion time/resolution per channel: additional conversion time for wire-break monitoring 2 ms; for 3/4-wire transducer 4 ms
Integration and conversion time/resolution per channel: Interference voltage suppression for interference frequency f1 in Hz none / 60 / 50 / 16.7
Smoothing of measured values: parameterizable Yes
Smoothing of measured values: Step: None Yes; 1x cycle time
Smoothing of measured values: Step: low Yes; 4x cycle time
Smoothing of measured values: Step: Medium Yes; 16x cycle time
Smoothing of measured values: Step: High Yes; 32x cycle time

Encoder 1

Connection of signal encoders: for resistance measurement with two-wire connection Yes

Errors/accuracies 13

Linearity error (relative to input range), (+/-) 0.01 %; ±0.1 % for resistance thermometers and resistance
Temperature error (relative to input range), (+/-) 0.0009 %/K; ±0.005 % / K at thermocouple
Crosstalk between the inputs, max. -70 dB
Repeat accuracy in steady state at 25 °C (relative to input range), (+/-) 0.008 %
Temperature error of internal compensation ±1,5 °C
Operational error limit in overall temperature range: Voltage, relative to input range, (+/-) 0.2 %
Operational error limit in overall temperature range: Resistance, relative to input range, (+/-) 0.1 %; See deviations in the manual
Operational error limit in overall temperature range: Thermocouple, relative to input range, (+/-) 0.3 %
Basic error limit (operational limit at 25 °C): Voltage, relative to input range, (+/-) 0.1 %
Basic error limit (operational limit at 25 °C): Resistance, relative to input range, (+/-) 0.05 %; See deviations in the manual
Basic error limit (operational limit at 25 °C): Resistance thermometer, relative to input range, (+/-) 0.05 %; See deviations in the manual
Basic error limit (operational limit at 25 °C): Thermocouple, relative to input range, (+/-) 0.15 %
Interference voltage suppression for f = n x (f1 +/- 0.5 %), f1 = interference frequency: Series mode interference (peak value of interference < rated value of input range), min. 100 dB; at basic conversion time 4.5 / 21.5 / 24 / 64 ms: 46 dB

Interfaces 2

Transmission procedure 100BASE-TX
Number of PROFINET interfaces 1

1. Interface 10

Interface type PROFINET with 100 Mbit/s full duplex (100BASE-TX)
Interface types: M12 port Yes; 2x M12, 4-pin, D-coded
Interface types: Number of ports 2
Interface types: integrated switch Yes
Protocols: PROFINET IO device Yes
Protocols: Open IE communication Yes
PROFINET IO Device Services: IRT Yes; 250 µs to 4 ms in 125 µs frame
PROFINET IO Device Services: Prioritized startup Yes
PROFINET IO Device Services: Shared device Yes
PROFINET IO Device Services: Number of IO Controllers with shared device, max. 2

Interface types 3

M12 port: Autonegotiation Yes
M12 port: Autocrossing Yes
M12 port: Transmission rate, max. 100 Mbit/s

Protocols 36

Supports protocol for PROFINET IO Yes
PROFIsafe No
EtherNet/IP Yes
Modbus TCP Yes
Redundancy mode: PROFINET system redundancy (S2) Yes
Redundancy mode: on S7-1500R/H Yes
Redundancy mode: on S7-400H Yes
Redundancy mode: PROFINET system redundancy (R1) No
Redundancy mode: H-Sync forwarding Media redundancy Yes
Redundancy mode: MRP Yes
Redundancy mode: MRPD No
EtherNet/IP Services: CIP Implicit Messaging Yes
EtherNet/IP Services: CIP Explicit Messaging Yes
EtherNet/IP Services: CIP Safety No
EtherNet/IP Services: Shared device Yes; 2x EtherNet/IP Scanner
EtherNet/IP Services: Number of scanners with shared device, max. Updating times 2
EtherNet/IP Services: Requested Packet Interval (RPI) Redundancy mode 2 ms
EtherNet/IP Services: DLR (Device Level Ring) Address area No
EtherNet/IP Services: Address space per module, max. 38 byte
EtherNet/IP Services: LargeForwardOpen (Class3) No
Modbus TCP Services: read coils (code=1) Yes
Modbus TCP Services: read discrete inputs (code=2) Yes
Modbus TCP Services: Read Holding Registers (Code=3) Yes
Modbus TCP Services: write single coil (code=5) Yes
Modbus TCP Services: write multiple coils (code=15) Yes
Modbus TCP Services: Write Multiple Registers (Code=16) Yes
Modbus TCP Services: Parameter change by master No
Modbus TCP Services: Modbus TCP Security Protocol Address space per station No
Modbus TCP Services: Address space per station, max. 38 byte
Modbus TCP Services: Access-consistent address space Updating time 2 byte
Modbus TCP Services: I/O request interval Connections 2 ms
Modbus TCP Services: number of connections per device 12
Open IE communication: TCP/IP Yes; (only EtherNet/IP or Modbus TCP)
Open IE communication: SNMP Yes
Open IE communication: LLDP Yes
Open IE communication: ARP Yes

Interrupts/diagnostics/status information 17

Alarms: Diagnostic alarm Yes; Parameterizable
Alarms: Maintenance interrupt Yes; Parameterizable
Alarms: Limit value alarm Yes; two upper and two lower limit values in each case
Diagnoses: Diagnostic information readable Yes
Diagnoses: Monitoring the supply voltage Yes
Diagnoses: Parameterizable Yes
Diagnoses: Wire break Yes; Not for ±80 mV
Diagnoses: Overflow/Underflow Yes
Diagnostics indication LED: RUN LED Yes; green LED
Diagnostics indication LED: ERROR LED Yes; red LED
Diagnostics indication LED: MAINT LED Yes; Yellow LED
Diagnostics indication LED: NS LED Yes; green/red LED
Diagnostics indication LED: MS LED Yes; green/red LED
Diagnostics indication LED: IO LED Yes; red/green/yellow LEDs
Diagnostics indication LED: Channel status display Yes; green LED
Diagnostics indication LED: for channel diagnostics Yes; red LED
Diagnostics indication LED: Connection display LINK TX/RX Yes; green LED, only link

Potential separation 4

between the load voltages Yes
between Ethernet and electronics Yes
Potential separation channels: between the channels No
Potential separation channels: between the channels and the power supply of the electronics Yes

Isolation 2

tested with: 24 V DC circuits 707 V DC (type test)
tested with: Test voltage for interface, rms value [Vrms] 1 500 V; According to IEEE 802.3

Degree and class of protection 1

IP degree of protection IP65/67/69K

Standards, approvals, certificates 6

Suitable for safety-related tripping of standard modules Yes; from FS01
Suitable for applications according to AMS 2750 Yes; Declaration of Conformity, see online support entry 109757262
Suitable for applications according to CQI-9 Yes; based on AMS 2750 F
Highest safety class achievable for safety-related tripping of standard modules: Performance level according to ISO 13849-1 PL d
Use in hazardous areas: Explosion protection category for gas ATEX, UKEX, IECEx, CCCEx for Zone 2
Use in hazardous areas: Explosion protection category for dust ATEX, UKEX, IECEx, CCCEx for Zone 22

Security 2

signed firmware update Yes
securely removing data Yes

Ambient conditions 3

Ambient temperature during operation: min. -40 °C
Ambient temperature during operation: max. 60 °C
Altitude during operation relating to sea level: Ambient air temperature-barometric pressure-altitude Up to max. 5 000 m, at installation height > 2 000 m additional restrictions

Connection method 2

Design of electrical connection 4/5-pin M12 circular connectors
Design of electrical connection for the inputs and outputs M12, 5-pin, A-coded

Dimensions 3

Width 45 mm
Height 200 mm
Depth 48 mm

Weights 1

Weight, approx. 780 g

Logistics 6

Net weight 0.818 kg
Country of origin DE
Shipping weight 1.318 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 01 Nov 2026

Documents

Documents for 6ES7144-6JF00-0BB0

No documents are on file for this part yet.

Ask us for the datasheet
Quick answers

Questions about the 6ES7144-6JF00-0BB0

What is the HS code of 6ES7144-6JF00-0BB0 for customs?

The tariff (HS) code on file for 6ES7144-6JF00-0BB0 is 85389091.

What is the EAN of 6ES7144-6JF00-0BB0?

The EAN (GTIN) of 6ES7144-6JF00-0BB0 is 4047623411673.

Where does 6ES7144-6JF00-0BB0 ship from, and how fast?

6ES7144-6JF00-0BB0 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.

Guides

Guides for PLC & controllers

All guides for PLC & controllers
Reviews

Customer reviews

Series

Siemens SIMATIC ET 200eco

Brand
Siemens
Series
SIMATIC ET 200eco
$720.36 On request
Get a Quote
Quote

Get a Quote

Genuine parts

Genuine, factory-sealed parts

Siemens · 6ES7144-6JF00-0BB0

Every part on Stoklink is new, unused and made by the manufacturer named on the page.

Condition
New and unused, in the manufacturer's factory-sealed packaging.
Sourced from
Siemens and its authorised distributors.
Warranty
The manufacturer's warranty applies.
If a part is not genuine
We refund the full amount.

Added to cart Could not add to cart

View cart
