SIMATIC ET 200AL

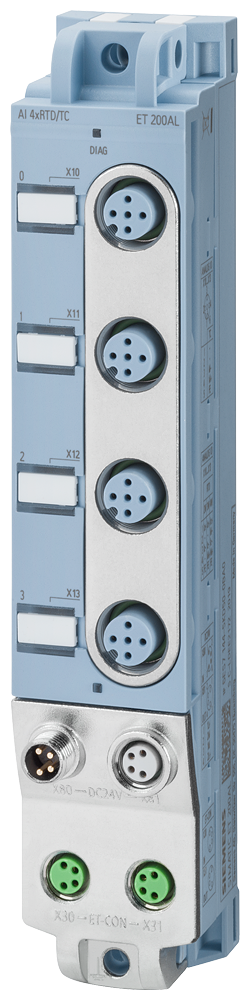

Siemens 6ES7144-5KD50-0BA0 SIMATIC ET 200AL AI 4xRTD/TC IP67 Remote I/O Module

SIMATIC ET 200AL AI 4xRTD/TC analog input module, 4 channels, RTD + thermocouple B-U, IP65/67, 24V DC, AMS 2750/CQI-9 declared.

Communication
PROFIBUS / PROFINET, GSD/GSDML
EAN
4047623410959
Description

About the AI 4xRTD/TC

The Siemens 6ES7144-5KD50-0BA0 is a SIMATIC ET 200AL analog input module with 4 channels for RTD (Pt100/Pt1000/Ni100/Ni1000) or thermocouple (types B, C, E, J, K, L, N, R, S, T, U) temperature measurement, each independently configurable. Rated IP65/67 with M12 5-pole connectors, it mounts directly on machinery and runs from a 24 V DC (20.4-28.8 V) supply across a -30 degC to 55 degC operating range.

Selection Notes

The four channels cover RTD types (Pt100/Pt1000/Ni100/Ni1000) and thermocouple types B through U in one module, so a single ET 200AL station handles both sensor classes without a separate thermocouple module. Internal and external compensation-socket cold-junction compensation are both supported, which matters for thermocouple accuracy over the -30 degC to 55 degC operating range. Declared conformity to AMS 2750 and CQI-9 makes it a fit for heat-treatment furnace temperature-uniformity surveys that require those pyrometry standards.

Applications

Fits furnace and heat-treatment temperature monitoring where AMS 2750 / CQI-9 pyrometry compliance is required, and general-purpose RTD or thermocouple sensing on IP67 field-mounted ET 200AL stations.

Specification

Full specification

124 values · Last verified 01 Nov 2026

General information 8

Product type designation AI 4xRTD/TC
HW functional status FS03
Firmware version V2.0.x
Product function: I&M data Yes; I&M0 to I&M3
Engineering with: STEP 7 TIA Portal configurable/integrated from version STEP 7 V16 or higher
Engineering with: STEP 7 configurable/integrated from version V5.5 SP4 and higher
Engineering with: PROFIBUS from GSD version/GSD revision GSD as of Revision 5
Engineering with: PROFINET from GSD version/GSD revision GSDML V2.34

Supply voltage 5

power supply according to NEC Class 2 required No
Load voltage 1L+: Rated value (DC) 24 V
Load voltage 1L+: permissible range, lower limit (DC) 20.4 V
Load voltage 1L+: permissible range, upper limit (DC) 28.8 V
Load voltage 1L+: Reverse polarity protection Yes; against destruction

Input current 3

Current consumption (rated value) 30 mA; without load
from load voltage 1L+ (unswitched voltage) 4 A; Maximum value
from load voltage 2L+, max. 4 A; Maximum value
Show all 124 specifications ↓ Show less ↑108 more values in Identification, Power loss, Analog inputs, Analog value generation for the inputs, Encoder, Errors/accuracies, Interrupts/diagnostics/status information, Potential separation, Isolation, Degree and class of protection, Standards, approvals, certificates, Security, Ambient conditions, Connection method, Dimensions, Weights, General Product Approval, Logistics.

Identification 10

Part number 6ES7144-5KD50-0BA0
Type designation AI 4xRTD/TC
Brand Siemens
Condition New, factory sealed
Source Siemens and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 4047623410959
ETIM class EC001596
eCl@ss 27242601

Power loss 1

Power loss, typ. 1.5 W

Analog inputs 37

Number of analog inputs 4
For voltage measurement 4
For resistance/resistance thermometer measurement 4
For thermocouple measurement 4
permissible input voltage for voltage input (destruction limit), max. 15 V
Constant measurement current for resistance-type transmitter, typ. 230 ... 300 µA
Cycle time (all channels), min. 90 ms
Technical unit for temperature measurement adjustable Yes; Degrees Celsius / degrees Fahrenheit / Kelvin
Input ranges (rated values), voltages: -80 mV to +80 mV Yes; 16 bit incl. sign
Input ranges (rated values), voltages: Input resistance (-80 mV to +80 mV) 10 MΩ
Input ranges (rated values), thermocouples: Type B Yes; 16 bit incl. sign
Input ranges (rated values), thermocouples: Input resistance (Type B) 10 MΩ
Input ranges (rated values), thermocouples: Type C Yes; 16 bit incl. sign
Input ranges (rated values), thermocouples: Type E Yes; 16 bit incl. sign
Input ranges (rated values), thermocouples: Type J Yes; 16 bit incl. sign
Input ranges (rated values), thermocouples: Type K Yes; 16 bit incl. sign
Input ranges (rated values), thermocouples: Type L Yes; 16 bit incl. sign
Input ranges (rated values), thermocouples: Type N Yes; 16 bit incl. sign
Input ranges (rated values), thermocouples: Type R Yes; 16 bit incl. sign
Input ranges (rated values), thermocouples: Type S Yes; 16 bit incl. sign
Input ranges (rated values), thermocouples: Type T Yes; 16 bit incl. sign
Input ranges (rated values), thermocouples: Type U Yes; 16 bit incl. sign
Input ranges (rated values), resistance thermometer: Ni 100 Yes; Standard/climate
Input ranges (rated values), resistance thermometer: Input resistance (Ni 100) 10 MΩ
Input ranges (rated values), resistance thermometer: Ni 1000 Yes; Standard/climate
Input ranges (rated values), resistance thermometer: Pt 100 Yes; Standard/climate
Input ranges (rated values), resistance thermometer: Pt 1000 Yes; Standard/climate
Input ranges (rated values), resistors: 0 to 150 ohms Yes
Input ranges (rated values), resistors: Input resistance (0 to 150 ohms) 10 MΩ
Input ranges (rated values), resistors: 0 to 300 ohms Yes
Input ranges (rated values), resistors: Input resistance (0 to 300 ohms) 10 MΩ
Thermocouple (TC) Temperature compensation: Parameterizable Yes
Thermocouple (TC) Temperature compensation: internal temperature compensation Yes
Thermocouple (TC) Temperature compensation: external temperature compensation with compensations socket Yes
Thermocouple (TC) Temperature compensation: dynamic reference temperature value Yes
Thermocouple (TC) Temperature compensation: fixed reference temperature Yes
Cable length: shielded, max. 30 m

Analog value generation for the inputs 11

Measurement principle integrating
Integration and conversion time/resolution per channel: Resolution with overrange (bit including sign), max. 16 bit
Integration and conversion time/resolution per channel: Integration time, parameterizable Yes; channel by channel
Integration and conversion time/resolution per channel: Basic conversion time, including integration time (ms) 18 / 21 / 61 ms
Integration and conversion time/resolution per channel: additional conversion time for wire-break monitoring 4 ms
Integration and conversion time/resolution per channel: Interference voltage suppression for interference frequency f1 in Hz 60 / 50 / 16.7
Smoothing of measured values: parameterizable Yes
Smoothing of measured values: Step: None Yes; 1x cycle time
Smoothing of measured values: Step: low Yes; 4x cycle time
Smoothing of measured values: Step: Medium Yes; 16x cycle time
Smoothing of measured values: Step: High Yes; 32x cycle time

Encoder 1

Connection of signal encoders: for resistance measurement with two-wire connection Yes

Errors/accuracies 13

Linearity error (relative to input range), (+/-) 0.025 %
Temperature error (relative to input range), (+/-) 0.01 %/K
Crosstalk between the inputs, max. -70 dB
Repeat accuracy in steady state at 25 °C (relative to input range), (+/-) 0.01 %; 0.02% for Pt1000
Temperature error of internal compensation ±4 °C
Operational error limit in overall temperature range: Voltage, relative to input range, (+/-) 0.35 %
Operational error limit in overall temperature range: Resistance, relative to input range, (+/-) 0.25 %
Operational error limit in overall temperature range: Thermocouple, relative to input range, (+/-) TC type E, J, K, N, C, U, L: 0.35 %; TC type R, S, T: 0.4 %; TC type B: 0.45 %
Basic error limit (operational limit at 25 °C): Voltage, relative to input range, (+/-) 0.25 %
Basic error limit (operational limit at 25 °C): Resistance, relative to input range, (+/-) 0.15 %
Basic error limit (operational limit at 25 °C): Resistance thermometer, relative to input range, (+/-) 0.15 %
Basic error limit (operational limit at 25 °C): Thermocouple, relative to input range, (+/-) 0.25 %
Interference voltage suppression for f = n x (f1 +/- 0.5 %), f1 = interference frequency: Series mode interference (peak value of interference < rated value of input range), min. 40 dB

Interrupts/diagnostics/status information 6

Alarms: Diagnostic alarm Yes; Parameterizable
Alarms: Limit value alarm Yes; Parameterizable
Diagnoses: Wire break Yes; Not for ±80 mV
Diagnoses: Overflow/Underflow Yes
Diagnostics indication LED: Channel status display Yes; green LED
Diagnostics indication LED: for module diagnostics Yes; green/red LED

Potential separation 4

between the load voltages Yes
Potential separation channels: between the channels No
Potential separation channels: between the channels and backplane bus Yes
Potential separation channels: between the channels and the power supply of the electronics No

Isolation 1

Isolation tested with 707 V DC (type test)

Degree and class of protection 1

IP degree of protection IP65/67

Standards, approvals, certificates 4

Suitable for safety-related tripping of standard modules Yes; from FS01
Suitable for applications according to AMS 2750 Yes; Declaration of Conformity, see online support entry 109757262
Suitable for applications according to CQI-9 Yes; Based on AMS 2750 E
Highest safety class achievable for safety-related tripping of standard modules: Performance level according to ISO 13849-1 PL d

Security 2

signed firmware update Yes
data integrity Yes

Ambient conditions 3

Ambient temperature during operation: min. -30 °C
Ambient temperature during operation: max. 55 °C
Altitude during operation relating to sea level: Ambient air temperature-barometric pressure-altitude Up to max. 5 000 m, at installation height > 2 000 m additional restrictions

Connection method 3

Design of electrical connection for the inputs and outputs M12, 5-pole
Design of electrical connection for supply voltage M8, 4-pole
ET-Connection: ET-Connection M8, 4-pin, shielded

Dimensions 3

Width 30 mm
Height 159 mm
Depth 40 mm

Weights 1

Weight, approx. 168 g

General Product Approval 1

China RoHS Manufacturer Declara- tion

Logistics 6

Net weight 0.188 kg
Country of origin DE
Shipping weight 0.688 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 01 Nov 2026
