Part number
6ES7144-5KD00-0BA0
Model no
AI 4xU/I/RTD
$382.95 On request Dispatch — · From TürkiyeGet a Quote
SIMATIC ET 200AL

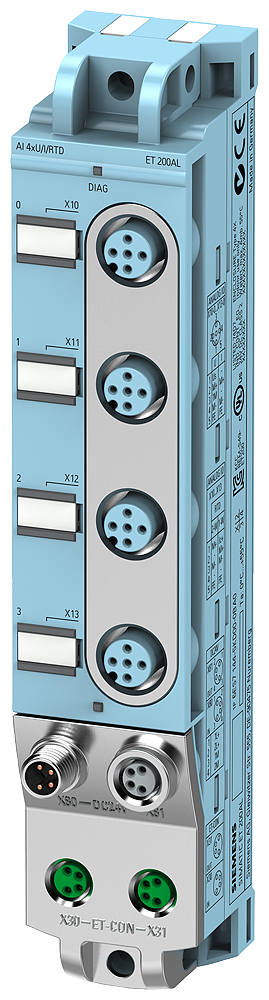

Siemens 6ES7144-5KD00-0BA0 SIMATIC ET 200AL AI 4xU/I/RTD IP67 Remote I/O Module

SIMATIC ET 200AL AI 4xU/I/RTD analog input module, 4 channels, IP65/67, M12, 24V DC, PL d/SIL 2 safety-related tripping support.

Communication
PROFIBUS / PROFINET, GSD/GSDML
EAN
4047623403463
Description

About the AI 4xU/I/RTD

The Siemens 6ES7144-5KD00-0BA0 is a SIMATIC ET 200AL analog input module with 4 universal channels for voltage, current, or RTD/resistance measurement, each independently configurable. Rated IP65/67 with M12 5-pole I/O connectors and an M8 4-pole power connector, it mounts directly on machinery without a control cabinet and runs from a 24 V DC (20.4-28.8 V) supply across a -30 degC to 55 degC operating range.

Selection Notes

The four channels accept voltage (0-10 V, 1-5 V), current (0-20 mA, 4-20 mA), or Pt100/Ni100 RTD inputs independently per channel, so one module covers mixed sensor types on a machine without separate analog modules for each signal class. From FS02, the module supports safety-related tripping of standard modules to PL d / Cat. 3 / SIL 2, useful where an external safety relay needs a validated analog trip source. The -30 degC to 55 degC operating range and IP65/67 rating suit direct field mounting outside a control cabinet.

Applications

Suited to machine-mounted analog measurement points - temperature via Pt100/Ni100, process signals via 0-20 mA or 4-20 mA current loops, or 0-10 V transducers - where IP67 field mounting removes the need for a nearby control cabinet. The safety-related tripping support lets the module feed an external safety relay for functions up to PL d / SIL 2.

Specification

Full specification

118 values · Last verified 01 Nov 2026

General information 8

Product type designation AI 4xU/I/RTD
HW functional status FS07
Firmware version V2.0.x
Product function: I&M data Yes; I&M0 to I&M3
Engineering with: STEP 7 TIA Portal configurable/integrated from version STEP 7 V13 SP1 or higher
Engineering with: STEP 7 configurable/integrated from version From V5.5 SP4 Hotfix 3
Engineering with: PROFIBUS from GSD version/GSD revision GSD as of Revision 5
Engineering with: PROFINET from GSD version/GSD revision GSDML V2.3.1

Supply voltage 5

power supply according to NEC Class 2 required No
Load voltage 1L+: Rated value (DC) 24 V
Load voltage 1L+: permissible range, lower limit (DC) 20.4 V
Load voltage 1L+: permissible range, upper limit (DC) 28.8 V
Load voltage 1L+: Reverse polarity protection Yes; against destruction

Input current 3

Current consumption (rated value) 35 mA; without load
from load voltage 1L+ (unswitched voltage) 4 A; Maximum value
from load voltage 2L+, max. 4 A; Maximum value
Show all 118 specifications ↓ Show less ↑102 more values in Identification, Encoder supply, Power loss, Analog inputs, Analog value generation for the inputs, Encoder, Errors/accuracies, Interrupts/diagnostics/status information, Potential separation, Isolation, Degree and class of protection, Standards, approvals, certificates, Security, Ambient conditions, Connection method, Dimensions, Weights, EClass 14 27-24-26-01, General Product Approval, Logistics.

Identification 10

Part number 6ES7144-5KD00-0BA0
Type designation AI 4xU/I/RTD
Brand Siemens
Condition New, factory sealed
Source Siemens and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 4047623403463
ETIM class EC001596
eCl@ss 27242601

Encoder supply 3

Number of outputs 4
24 V encoder supply: Short-circuit protection Yes; per channel, electronic
24 V encoder supply: Output current, max. 0.5 A; Per channel, total current of all channels max. 1 A

Power loss 1

Power loss, typ. 1.5 W

Analog inputs 24

Number of analog inputs 4
For current measurement 4
For voltage measurement 4
For resistance/resistance thermometer measurement 4
permissible input voltage for voltage input (destruction limit), max. 30 V
permissible input current for current input (destruction limit), max. 50 mA
Cycle time (all channels), min. 8 ms
Technical unit for temperature measurement adjustable Yes; Degrees Celsius / degrees Fahrenheit / Kelvin
Input ranges (rated values), voltages: 0 to +10 V Yes
Input ranges (rated values), voltages: Input resistance (0 to 10 V) 10 MΩ
Input ranges (rated values), voltages: 1 V to 5 V Yes
Input ranges (rated values), voltages: Input resistance (1 V to 5 V) 10 MΩ
Input ranges (rated values), currents: 0 to 20 mA Yes
Input ranges (rated values), currents: Input resistance (0 to 20 mA) 50 Ω
Input ranges (rated values), currents: 4 mA to 20 mA Yes
Input ranges (rated values), currents: Input resistance (4 mA to 20 mA) 50 Ω
Input ranges (rated values), resistance thermometer: Ni 100 Yes; Standard/climate
Input ranges (rated values), resistance thermometer: Input resistance (Ni 100) 10 MΩ
Input ranges (rated values), resistance thermometer: Pt 100 Yes; Standard/climate
Input ranges (rated values), resistors: 0 to 150 ohms Yes
Input ranges (rated values), resistors: Input resistance (0 to 150 ohms) 10 MΩ
Input ranges (rated values), resistors: 0 to 300 ohms Yes
Input ranges (rated values), resistors: Input resistance (0 to 300 ohms) 10 MΩ
Cable length: shielded, max. 30 m

Analog value generation for the inputs 10

Measurement principle integrating
Integration and conversion time/resolution per channel: Resolution with overrange (bit including sign), max. 16 bit
Integration and conversion time/resolution per channel: Integration time, parameterizable Yes; channel by channel
Integration and conversion time/resolution per channel: Interference voltage suppression for interference frequency f1 in Hz 3 600 / 60 / 50 / 16.7
Integration and conversion time/resolution per channel: Conversion time (per channel) 2 / 18 / 21 / 61 ms
Smoothing of measured values: parameterizable Yes
Smoothing of measured values: Step: None Yes; 1x cycle time
Smoothing of measured values: Step: low Yes; 4x cycle time
Smoothing of measured values: Step: Medium Yes; 16x cycle time
Smoothing of measured values: Step: High Yes; 32x cycle time

Encoder 4

Connection of signal encoders: for voltage measurement Yes
Connection of signal encoders: for current measurement as 2-wire transducer Yes
Connection of signal encoders: for current measurement as 4-wire transducer Yes
Connection of signal encoders: for resistance measurement with two-wire connection Yes

Errors/accuracies 12

Linearity error (relative to input range), (+/-) 0.025 %
Temperature error (relative to input range), (+/-) 0.01 %/K
Crosstalk between the inputs, max. -70 dB
Repeat accuracy in steady state at 25 °C (relative to input range), (+/-) 0.01 %
Operational error limit in overall temperature range: Voltage, relative to input range, (+/-) 0.35 %
Operational error limit in overall temperature range: Current, relative to input range, (+/-) 0.45 %
Operational error limit in overall temperature range: Resistance, relative to input range, (+/-) 0.25 %
Basic error limit (operational limit at 25 °C): Voltage, relative to input range, (+/-) 0.25 %
Basic error limit (operational limit at 25 °C): Current, relative to input range, (+/-) 0.25 %
Basic error limit (operational limit at 25 °C): Resistance, relative to input range, (+/-) 0.15 %
Basic error limit (operational limit at 25 °C): Resistance thermometer, relative to input range, (+/-) 0.15 %
Interference voltage suppression for f = n x (f1 +/- 0.5 %), f1 = interference frequency: Series mode interference (peak value of interference < rated value of input range), min. 40 dB

Interrupts/diagnostics/status information 7

Alarms: Diagnostic alarm Yes; Parameterizable
Alarms: Limit value alarm Yes; Parameterizable
Diagnoses: Wire break Yes; at 4 mA to 20 mA and 1 V to 5 V
Diagnoses: Short-circuit Yes; Encoder supply to M, channel by channel
Diagnoses: Overflow/Underflow Yes
Diagnostics indication LED: Channel status display Yes; green LED
Diagnostics indication LED: for module diagnostics Yes; green/red LED

Potential separation 4

between the load voltages Yes
Potential separation channels: between the channels No
Potential separation channels: between the channels and backplane bus Yes
Potential separation channels: between the channels and the power supply of the electronics No

Isolation 1

Isolation tested with 707 V DC (type test)

Degree and class of protection 1

IP degree of protection IP65/67

Standards, approvals, certificates 2

Suitable for safety-related tripping of standard modules Yes; From FS02
Highest safety class achievable for safety-related tripping of standard modules: Performance level according to ISO 13849-1 PL d

Security 2

signed firmware update Yes
data integrity Yes

Ambient conditions 3

Ambient temperature during operation: min. -30 °C
Ambient temperature during operation: max. 55 °C
Altitude during operation relating to sea level: Ambient air temperature-barometric pressure-altitude Up to max. 5 000 m, at installation height > 2 000 m additional restrictions

Connection method 3

Design of electrical connection for the inputs and outputs M12, 5-pole
Design of electrical connection for supply voltage M8, 4-pole
ET-Connection: ET-Connection M8, 4-pin, shielded

Dimensions 3

Width 30 mm
Height 159 mm
Depth 40 mm

Weights 1

Weight, approx. 168 g

EClass 14 27-24-26-01 4

eClass 12 27-24-26-01
ETIM 10 EC001596
IDEA 4 3562
UNSPSC 15 32-15-17-05

General Product Approval 1

China RoHS Manufacturer Declara- tion

Logistics 6

Net weight 0.189 kg
Country of origin DE
Shipping weight 0.689 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 01 Nov 2026
