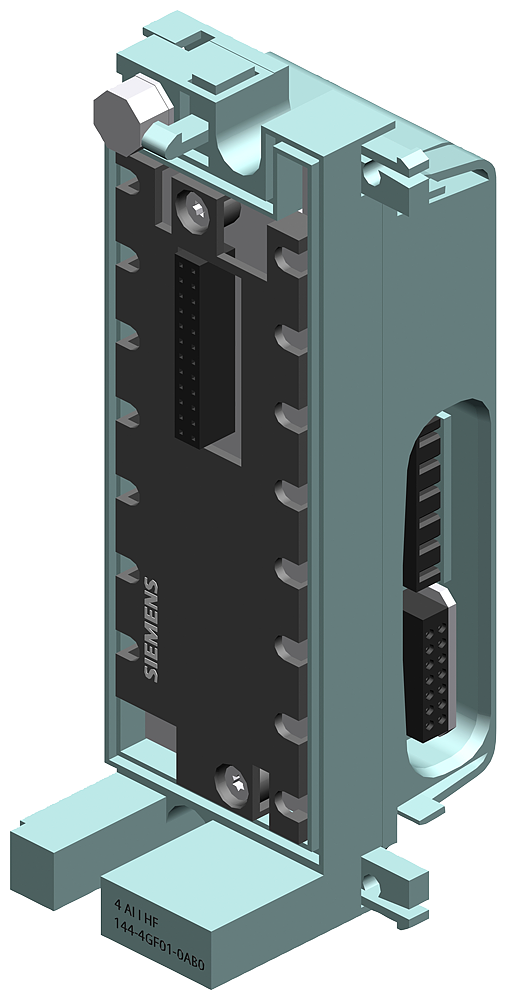

The Siemens 6ES7144-4GF01-0AB0 is a SIMATIC ET 200pro high-feature analog input module with 4 current-input channels covering 0/4-20 mA and plus/minus 20 mA ranges. Resolution reaches 15 bit plus sign, with a basic error limit of 0.075 percent and a 10 ms cycle time across all channels, and it reports wire-break and short-circuit diagnostics per channel at 4-20 mA.
The 4-20 mA range with wire-break diagnostics separates this module from a plain current-input card - a broken sensor loop reports as a diagnostic alarm instead of reading as a valid low value, which matters for process-loop monitoring. A 15-bit-plus-sign resolution and 0.075 percent basic error limit support precision transmitter readings that a lower-resolution 12-bit module would round away. Select the smoothing step - None, Low, Medium, or High - to trade response time against noise rejection for the specific sensor loop.
Process measurement in distributed SIMATIC ET 200pro stations - 4-20 mA transmitters for pressure, level, flow, and temperature loops, and 2-wire or 4-wire current-output field instruments needing wire-break detection.
| Rated value (DC) | 24 V |
|---|---|
| Reverse polarity protection | Yes; against destruction |
| from supply voltage 1L+, max. | 40 mA; Typical |
|---|---|
| from backplane bus 3.3 V DC, max. | 12 mA; Typical |
| Number of outputs | 4 |
|---|---|
| Short-circuit protection | Yes; per module, electronic to frame |
| Output current: up to 55 °C, max. | 1 A |
| Part number | 6ES7144-4GF01-0AB0 |
|---|---|
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4047623403234 |
| ETIM class | EC001596 |
| eCl@ss | 27242601 |
| Power loss, typ. | 1.1 W |
|---|
| Address space per module: Address space per module, max. | 8 byte |
|---|
| Number of analog inputs | 4 |
|---|---|
| permissible input current for current input (destruction limit), max. | 40 mA |
| Cycle time (all channels) max. | 10 ms |
| Input ranges (rated values), currents: 0 to 20 mA | Yes |
| Input ranges (rated values), currents: Input resistance (0 to 20 mA) | 50 Ω |
| Input ranges (rated values), currents: -20 mA to +20 mA | Yes |
| Input ranges (rated values), currents: Input resistance (-20 mA to +20 mA) | 50 Ω |
| Input ranges (rated values), currents: 4 mA to 20 mA | Yes |
| Input ranges (rated values), currents: Input resistance (4 mA to 20 mA) | 50 Ω |
| Cable length: shielded, max. | 30 m |
| Measurement principle | integrating |
|---|---|
| Integration and conversion time/resolution per channel: Resolution with overrange (bit including sign), max. | 15 bit; 15 bit + sign at ±10 V, at ±5 V; 15 bit at 0 V to 10 V, at 1 V to 5 V |
| Integration and conversion time/resolution per channel: Integration time (ms) | 60 / 20 / 16.7 / 0.3 |
| Integration and conversion time/resolution per channel: Interference voltage suppression for interference frequency f1 in Hz | 16,67 / 50 / 60 / 3 600 |
| Integration and conversion time/resolution per channel: Conversion time (per channel) | 60.8 ms / 20.8 ms / 17.5 ms / 1.1 ms |
| Smoothing of measured values: parameterizable | Yes |
| Smoothing of measured values: Step: None | Yes; 1x cycle time |
| Smoothing of measured values: Step: low | Yes; 4x cycle time |
| Smoothing of measured values: Step: Medium | Yes; 16x cycle time |
| Smoothing of measured values: Step: High | Yes; 64x cycle time |
| Connection of signal encoders: for current measurement as 2-wire transducer | Yes |
|---|---|
| Connection of signal encoders: for current measurement as 4-wire transducer | Yes |
| Linearity error (relative to input range), (+/-) | 0.0075 % |
|---|---|
| Temperature error (relative to input range), (+/-) | 0.00075 %/K |
| Crosstalk between the inputs, min. | -70 dB |
| Repeat accuracy in steady state at 25 °C (relative to input range), (+/-) | 0.004 % |
| Operational error limit in overall temperature range: Current, relative to input range, (+/-) | 0.1 % |
| Basic error limit (operational limit at 25 °C): Current, relative to input range, (+/-) | 0.075 % |
| Interference voltage suppression for f = n x (f1 +/- 0.5 %), f1 = interference frequency: Series mode interference (peak value of interference < rated value of input range), min. | 60 dB |
| Diagnostics function | Yes |
|---|---|
| Alarms: Diagnostic alarm | Yes; Parameterizable |
| Alarms: Hardware interrupt | Yes; (limit value alarm), can be parameterized for channel 0 |
| Diagnoses: Diagnostic information readable | Yes |
| Diagnoses: Wire break | Yes; at 4 to 20 mA |
| Diagnoses: Short-circuit | Yes; at 4 to 20 mA |
| Diagnostics indication LED: Group error SF (red) | Yes |
| Potential separation analog inputs: between the channels | No |
|---|---|
| Potential separation analog inputs: between the channels and backplane bus | Yes |
| Between the inputs and MANA (UCM) | 5 Vpp AC |
|---|
| Isolation tested with | 707 V DC (type test) |
|---|
| Width | 45 mm |
|---|---|
| Height | 130 mm |
| Depth | 35 mm |
| Weight, approx. | 150 g |
|---|
| eClass | 6 27-24-26-01 |
|---|---|
| ETIM | 10 EC001596 |
| IDEA | 4 3562 |
| UNSPSC | 15 32-15-17-05 |
| Manufacturer Declara- Miscellaneous Metrological Approval tion General Product Approval | China RoHS |
|---|
| Net weight | 0.178 kg |
|---|---|
| Country of origin | DE |
| Shipping weight | 0.678 kg |
| Ships from | Türkiye |
| Dispatch | 18 Nov |
| Stock | Critical stock |
